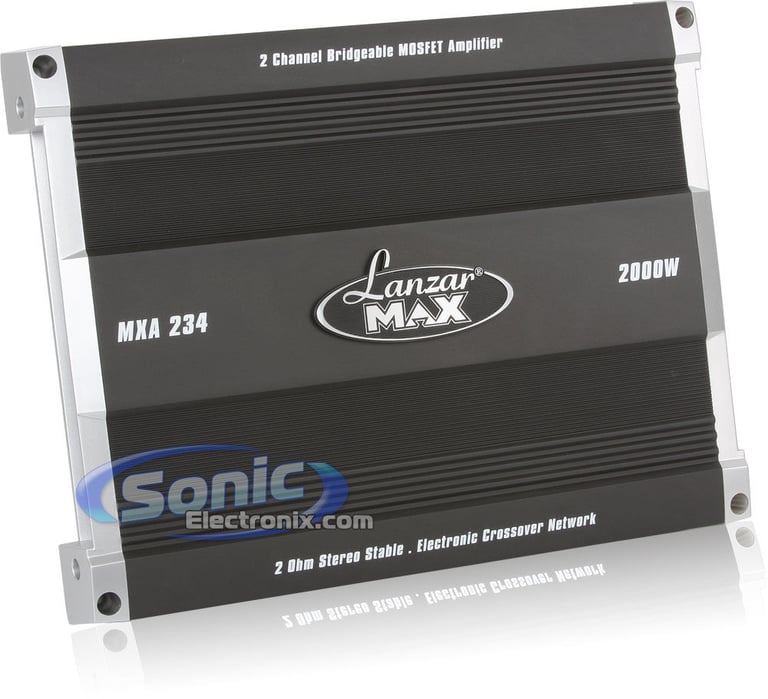

Lanzar MXA234

2000W Max, 2-Channel Max Series Amplifier (MXA-234)

Lanzar
Shop all Lanzar
Product videos
highlight-star-icon

Max Series 2-Channel Car Amplifier • 200W Max • 200W x 2-Chan. @ 2 Ohm • 150W x 2-Chan. @ 4 Ohm • Phase Shift 0-180° • 3-Way System Protection Circuitry • Stiffly Regulated PWM MOSFET Power Supply

Learn more about the mxa234

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

3
-20.01%

$119.95

List price $149.95

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

Product Highlights


Max Series 2-Channel Car Amplifier • 200W Max • 200W x 2-Chan. @ 2 Ohm • 150W x 2-Chan. @ 4 Ohm • Phase Shift 0-180° • 3-Way System Protection Circuitry • Stiffly Regulated PWM MOSFET Power Supply

Description


Lanzar brand icon

Authorized dealer

  • Max Series 2-Channel Car Amplifier
  • RMS Power Rating (14.4V):
    • 4 ohm: 100 watts x 2 chan.
    • 2 ohm: 150 watts x 2 chan.
    • Bridged, 4 ohm: 2000 watts x 1 chan.
  • RMS Power Rating (THD):
    • 4 ohm: 150 watts x 2 chan.
    • 2 ohm: 200 watts x 2 chan.
  • Max power output: 1000 watts x 2 chan.
  • Stiffly regulated PWM (Pulse Width Modulated) MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Bass Boost/EQ details (0 or +18 dB bass boost)
  • Input impedance: 10K Ohm
  • 2/1 channel operation
  • Preamp RCA outputs
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Variable input level: 200mV-6V
  • Heavy duty aluminum alloy heatsink for maximum heat dissipation
  • Nickle-plated RCA level inputs
  • Nickle-plated screw terminals
  • Variable high-pass filter (40-250 Hz, 24 dB/octave)
  • Variable low-pass filter (40-250 Hz, 24 dB/octave)
  • Phase Shift: 0-180°
  • Frequency response: 15-30,000 Hz
  • Dimensions: 12"L x 10-5/8"W x 1-3/4"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

R2-200X2 small

Rockford Fosgate Prime R2 R2-200X2

• 50 watts x 2 channel @ 4 ohm
• 100 watts x 2 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(2)

$239.99

List price $239.99

VADM2 small

NVX VADM2 v2 (VADM2v2)

• 200 watts x 2 channel @ 4 ohm
• 300 watts x 2 channel @ 2 ohm
• Bridged: 600 watts x 1 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(17)

$199.99

List price $239.99

ION700.2D small

DS18 ION700.2D

• 240 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

$299.95

List price $359.99

MFA 2.520 small

Deaf Bonce Machete MFA 2.520

• 520 watts x 2 channel @ 4 ohm
• 750 watts x 2 channel @ 2 ohm
• Bridged: 1500 watts x 1 channel @ 4 ohm
• Total RMS Power: 1500 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

(2)

$239.90

List price $239.90

H400.2D small

Cerwin-Vega H400.2D

• 80 watts x 2 channel @ 4 ohm
• 125 watts x 2 channel @ 2 ohm
• Bridged: 290 watts x 1 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable 2-Channel Amplifier

$239.99

List price $287.99

NBA201 small

NVX NBA201

• 200 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

(11)

$99.99

List price $249.99

GP-2000.2 small

Crunch GP-2000.2

• 500 watts x 2 channel @ 4 ohm
• 1000 watts x 2 channel @ 2 ohm
• Bridged: 2000 watts x 1 channel @ 4 ohm
• Total Peak Power: 2000 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

$74.99

List price $119.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
150 watts x 2 channel
RMS Power @ 2 ohms
200 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
1000 watts x 1 channel
Amplifier Specifications
Number of Channels
2-Channel
Total Peak Power Output
2000 watts
Total RMS Power Output
1000 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
45 - 250 Hz
Low-Pass Crossover Frequency
45 - 250 Hz
Signal-to-Noise Ratio
95 dB
Channel Separation
65 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fuse Rating
30A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

MXA234

Weight:

7.00lbs

Internal SKU:

mxa234

Internal Product ID:

22133

Product and How-to Videos


Customer Ratings & Reviews


Lanzar MXA234 thumbnail image

5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%



Durability
3.8
Value
4.5
Features
4
Design
4
Usability
4.5

Customer Reviews

Sort by:

Loading...

Great amp for the money

Ive owned this amp for 6 months and in that time its powered my 2 subs better than other amps ive owned. Its never shut off or over heated with my subs witch pull around 2000 watts i would reccomend this amp to any one looking for good power for little money!!

By Andrew on December 30, 2011

9 found this helpful


Perfect Replacement

I bought this for a friend to replace an amp of his that I blew when we took apart his system to reorganize it. It pushes his system to its potential (which the last amp lacked) and brings out that heavy bass he was looking for. Used to push two 12 in. 2008 model Kicker CVR's and SOMETIMES when we are being ballsy put the amp directly for a single 12" sony xplod. All this in a tiny Nissan 200SX. Shakes the entire thing like nuts and have had a few loose fillings from it. Im buying two to power four subs in my Dodge Stratus. For a cheap brand, it has come through. My only con so far, no remote bass knob, they come in handy.

By Phreakzor on October 27, 2011

9 found this helpful


Good Amp

Doesnt put out as best it can for my two 12 in 1200w subs but still rattles the truck. Easy to tune yourself.

By John on August 22, 2011

8 found this helpful


What a surprize!

Bought this as a replacement for a Power Teknique amp that i blew in my friends car.
The PT amp could push the two CompVR's not bad, but this amp made it look like a boss amp.
I know Lanzar isn't the best brand and not all their amps are great.
But I guess I got lucky with this one and it will be pushin for a long time.
Tested it out for the first time on a sony 1500 watt sub, one channel from the amp, and by the end of " how low " by ludacris the cone was getting warm and the magnet was damn toasty.
so pushes a lot of power which i didnt think it would.

By LT on March 10, 2011
