Name: JVC KS-AX4302 R/B
Brand: JVC
SKU: LS-ksax4302-RB
Price: 59.99 USD
Availability: Discontinued
Rating: 4.5000 (4 reviews)

Shop all JVC

by JVC

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

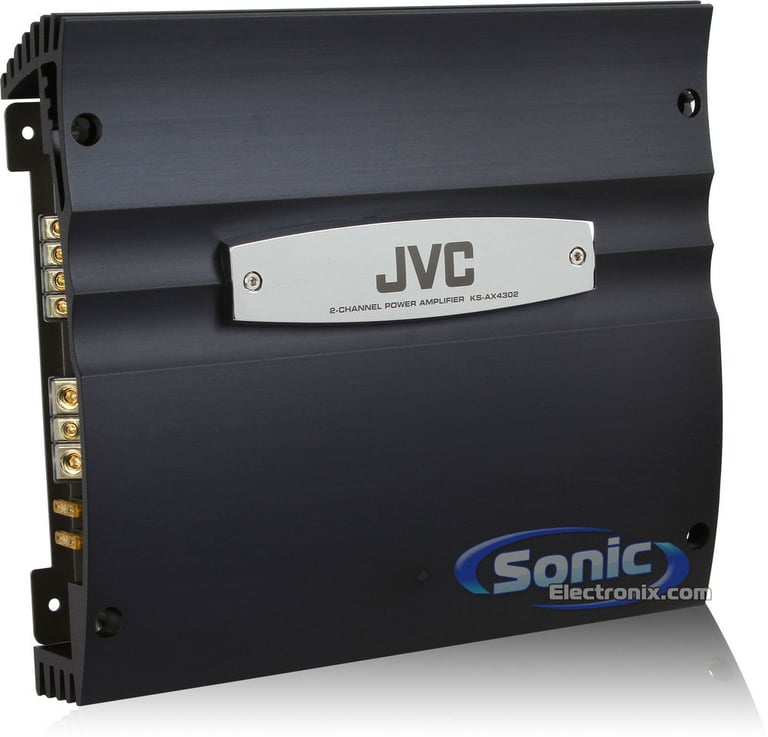

JVC KS-AX4302 R/B Image 1 — JVC KS-AX4302 R/B

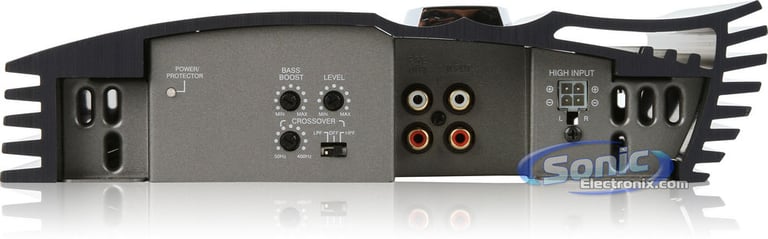

JVC KS-AX4302 R/B Image 2 — JVC KS-AX4302 R/B

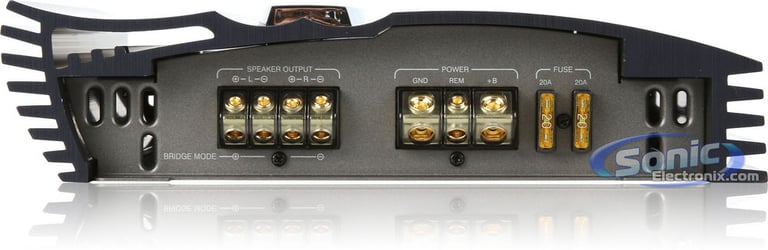

JVC KS-AX4302 R/B Image 3 — JVC KS-AX4302 R/B

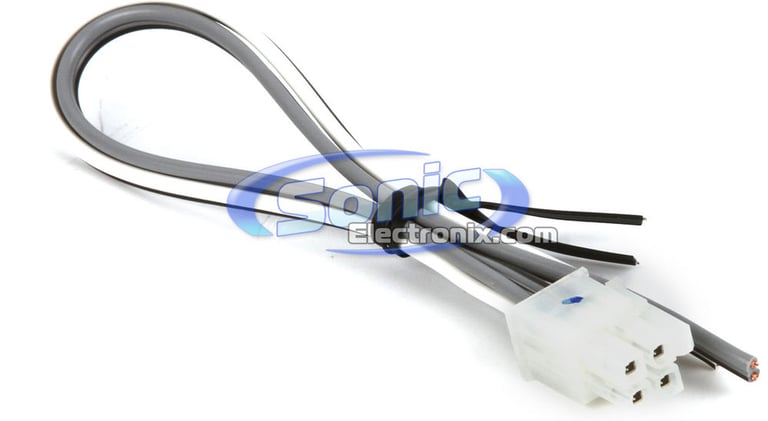

JVC KS-AX4302 R/B Image 4 — JVC KS-AX4302 R/B

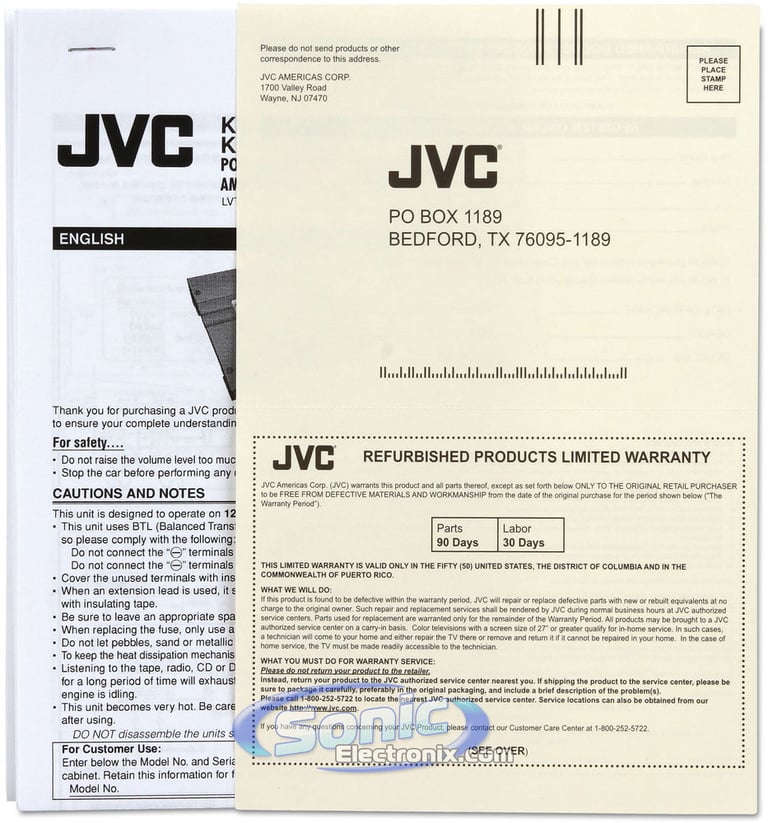

JVC KS-AX4302 R/B Image 5 — JVC KS-AX4302 R/B

Product videos

Product highlights

JVC 2-Channel Class A/B Car Amplifier • 600 Watts Max • 200 Watts x 1 Chan. Bridged @ 4 Ohm • 100 Watts x 2 Chan. @ 4 Ohm • Anti Pop Circuitry • Angle Mount Block Terminals • 4-Way System Protection Circuitry

Learn more about the LS-ksax4302-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

JVC 2-Channel Class A/B Car Amplifier
RMS Power Rating:

4 ohm: 100 watts x 2 chan.
Bridged, 4 ohm: 200 watts x 1 chan.

Max power output: 600 watts
Pulse Width Modulated MOSFET power supply
LED power and protect indicators
Bass Boost/EQ details (0-12 dB bass boost at 45 Hz)
2/1 channel operation
Speaker-level inputs with signal sensing for automatic turn-on
Preamp RCA output
4-Way system protection circuitry (thermal, overload, DC offset and speaker short protection)
Anti pop circuitry
Heavy duty aluminum alloy heatsink for extreme heat dissipation
Angle mount block terminals
Gold-plated RCA level inputs
Gold-plated screw terminals
Variable high-pass filter (50-400 Hz, 12 dB/octave)
Variable low-pass filter (50-400 Hz, 12 dB/octave)
Subsonic Filter (20 Hz)
CEA-2006 compliant amplifier
Frequency response: 5-50,000 Hz
Dimensions: 10-7/16"D x 11-13/16"W x 2-1/2"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
90 Day Manufacturer's warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

100 watts x 2 channel

Bridged RMS Power

200 watts x 1 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

2-Channel

Total Peak Power Output

600 watts

Total RMS Power Output

200 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.04%

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

50 - 400 Hz

Low-Pass Crossover Frequency

50 - 400 Hz

Subsonic Filter

20 Hz

Signal-to-Noise Ratio

80 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Fuse Rating

20A x 2

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer

Customer Ratings & Reviews

Overall rating distribution

5 star		50%
4 star		50%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		4.8
Value		4.8
Features		4.3
Design		4.3
Usability		4.8

Customer Reviews

Sort by:

One for the moeny.

I bought this amp on ebay, then purchased a sony system used so I gave it to my Brother-in-law. He has had it for over six months and no problems. He has it hooked up to two kickers I thinks it is a little under powered, but sounds good.

By J hova on March 22, 2011

16 found this helpful

Report abuse

Great amp

I would recommend the amp to anyone who doesn't need a lot of RMS power for a sub or 2. I have powered 2 Rockford R1 subs on it. I have also ran 2 Alpine 10 inch Type-R subs on it(2ohm each). Let me tell you that this amp has never disappointed me.
It runs cool and never has gone into protect once.
Clean sounding bass and highs
it has your basic features (Bass boost,crossover,gain,lp,hp,full)
The preamp out is also a nice touch. Makes it easy to run multiple amps.

By Tim on March 1, 2011

15 found this helpful

Report abuse

Great Amp for the Money

This amp provides clean, powerful sound. I use it to power a 10" 175W rms sub, and it does it very well.

By Rob on December 14, 2010

7 found this helpful

Report abuse

JVC, you made a good amp.

I actually got this amp for free. I've had it about 3 months and I am really surprised. The amp has not kicked off, into protection mode or anything. Now when I found this amp it had been outside for quite awhile. On a covered porch, but exposed to rain and all. I took it apart and cleaned it and changed the fuse and it now powers my 1400 watt Powerbass sub. JVC, fantastic job. would recommend that if anyone has a chance to

By Sherman on August 26, 2021

2 found this helpful

Report abuse
