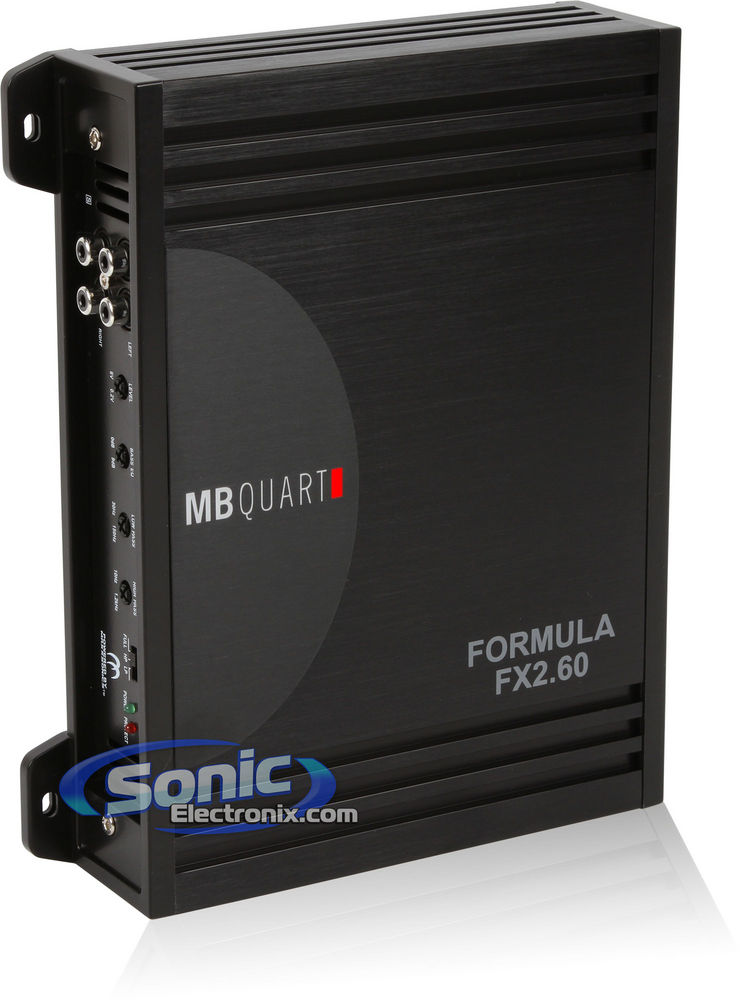

MB Quart FX2.60

240W RMS 2-Channel Formula Series Amplifier

MB Quart
Shop all MB Quart
Product videos
highlight-star-icon

Formula Series 2-Channel Class A/B Car Amplifier • 60W at 4 Ohm • 120W at 2 Ohm • PWM MOSFET Power Supply • Variable High Pass Filter • Variable Low Pass Filer • Variable Bass Boost • 4 Way Protection Circuitry

Learn more about the fx260

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
AXLOC-CH5 main

Axxess AXLOC-CH5

2-Channel 110W Line Output Converter with Gain Controller for select 2011-2025 vehicles from Ram, Dodge, Jeep with Non-Amplified Systems

10
-10.48%

$93.99

List price $104.99

72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

SB-D-QDRAMD/10TW1 main

JL Audio Stealthbox® SB-D-QDRAMD/10TW1

Custom fit subwoofer enclosure for select 2002-2024 vehicles from Ram, Dodge

3

$1,699.99

72-7902 main

Metra 72-7902

Install New Speakers in select 1990-2024 vehicles from Ram, Dodge, Jeep

20
-28.59%

$9.99

List price $13.99

72-6514-12 main

Metra 72-6514-12

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

7
-14.30%

$11.99

List price $13.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Limited time!
DMX809S main

Kenwood eXcelon DMX809S

6.8” Double DIN Digital Multimedia Touchscreen Bluetooth Receiver with Wireless Apple CarPlay and Android Auto (SiriusXM Ready)

11
-37.63%

$499.00

List price $800.00

NSP69 main

NVX NSP69

900W Peak (300W RMS) 6x9" N-Series 2 Way Coaxial Car Speakers

53
-16.67%

$89.99

List price $107.99

Club 34F main

JBL Club 34F (JBLSPKCB34F)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

4
-27.29%

$79.95

List price $109.95

Product Highlights


Formula Series 2-Channel Class A/B Car Amplifier • 60W at 4 Ohm • 120W at 2 Ohm • PWM MOSFET Power Supply • Variable High Pass Filter • Variable Low Pass Filer • Variable Bass Boost • 4 Way Protection Circuitry

Description


MB Quart brand icon

Authorized dealer

MB Quart FX2.60 Features:
  • Formula Series 2-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 60 watts x 2 chan.
    • 2 ohm: 120 watts x 2 chan.
    • Bridged, 4 ohm: 240 watts x 1 chan
  • PWM (Pulse Width Modulated) MOSFET power supply

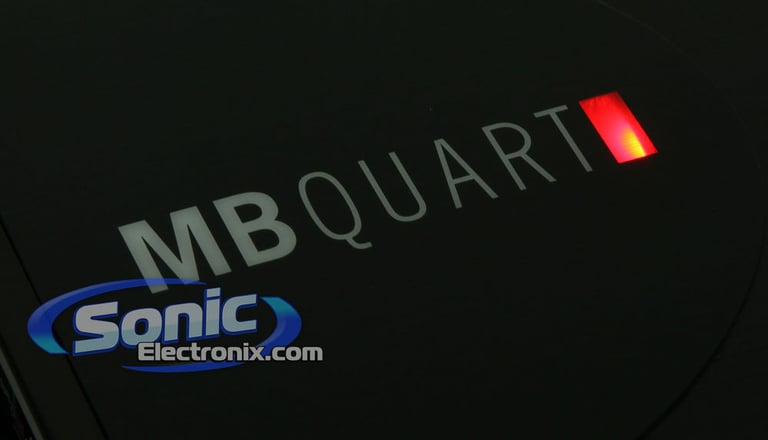

  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +9 dB bass boost at 45 Hz
  • 2/1 Channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy convection heatsink for superb heat dissipation
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals

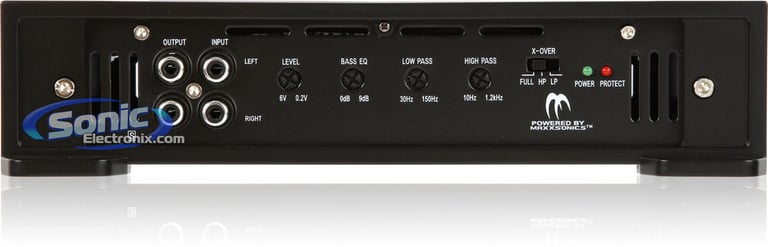

  • Input sensitivity:
    • Low level: 200mV-6V
  • Signal to noise ratio: 90dB
  • Channel separation: 80dB
  • Variable low-pass filter: 30-150 Hz
  • Variable high-pass filer: 10-1200 Hx
  • LP/HP/Full crossover switch
  • Damping factor: >180
  • Frequency response: 10-45,000 Hz
  • Dimensions: 8-1/16"L x 9-1/2"W x 2-1/4"H

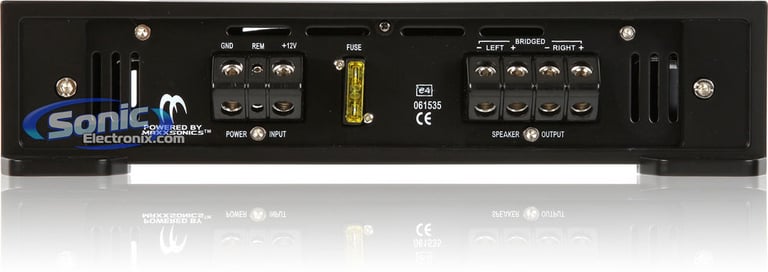

  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
51KRDL7T102 main

Kicker KRDL7T10 (51KRDL7T102)

1000W RMS Loaded Dual 10" Sealed Truck Enclosure for select 2002-2024 vehicles from Ram, Dodge

1
-10.53%

$849.99

List price $949.99

51KTDL7T102 main

Kicker 51KTDL7T102

1000W RMS Loaded Dual 10" Sealed Truck Enclosure for select 2011-2024 vehicles from Ram

-10.53%

$849.99

List price $949.99

DRQC20AC-TN main

MTX Audio Thunderform DRQC20AC-TN (Charcoal, Amplified)

select 2002-2018 vehicles from Ram, Dodge Amplified 2 10" 4 ohm Vehicle Specific Thunderform Subwoofer Enclosure

2
SB-D-QDRAMD/10TW1 main

JL Audio Stealthbox® SB-D-QDRAMD/10TW1

Custom fit subwoofer enclosure for select 2002-2024 vehicles from Ram, Dodge

3

$1,699.99

DRQC20C-TN main

MTX Audio Thunderform DRQC20C-TN (Charcoal, Loaded)

Two 10" 4 ohms Loaded Vehicle Specific Thunderform Subwoofer Enclosure for select 2002-2018 vehicles from Ram, Dodge

1
SB-D-QDRAM/10W3v3 main

JL Audio Stealthbox® SB-D-QDRAM/10W3v3 (Open Box, Like New)

Custom fit subwoofer enclosure for select 2002-2024 vehicles from Ram, Dodge

1

$1,249.99

51K5RDL7T102 main

Kicker 51K5RDL7T102

1000W RMS Loaded Dual 10" Sealed Truck Enclosure for select 2002-2024 vehicles from Ram, Dodge

-10.53%

$849.99

List price $949.99

TXRM02D10 main

AudioControl TXRM02D10

1200W RMS Loaded Dual 10" Sealed Truck Enclosure for select 2011-2018 1500 and 3500 and 2500

-7.70%

$1,199.00

List price $1299.00

KFC-XP6903C, XBAF69, SDSK2, SDRLR1, BTK106 main

Kenwood eXcelon KFC-XP6903C with Installation Accessories

200W RMS 6"x9" 3-way Component Speakers with Speaker Baffles, Sound Damping, Roller, and Panel Removal Kit

189
-38.14%

$255.32

List price $412.71

51KR_46CXA_RCT_XK42_NK_49K main

Kicker KRDL7T10 Sub Enclosure + CXA1200.1 Amp + Remote w/ Free Amp Install Kit

1000W RMS Dual 10" Sealed Truck Enclosure, 1200W RMS Class D Monoblock Amp, Wired Bass Remote, 4 Gauge OFC Amp Kit, and 2 Koozies

158
-18.40%

$1,290.01

List price $1580.93


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
60 watts x 2 channel
RMS Power @ 2 ohms
120 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
240 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
Not Specified
Total RMS Power Output
240 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.05%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
10 - 1200 Hz
Low-Pass Crossover Frequency
30 - 150 Hz
Signal-to-Noise Ratio
90 dB
Channel Separation
80 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
No
Fuse Rating
20A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

FX2.60

Weight:

5.50lbs

Internal SKU:

fx260

Internal Product ID:

33002

Product and How-to Videos


Customer Ratings & Reviews


MB Quart FX2.60 thumbnail image

5 star
90%
4 star
10%
3 star
0%
2 star
0%
1 star
0%



Durability
4.7
Value
4.9
Features
4.4
Design
4.7
Usability
4.5

Customer Reviews

Sort by:

Loading...

big bang in a small box

I first did one on a single old school 8" MB quart sub, in a small sealed box. It pounded nicely and never once shut done or clipped. I bought another and ran the front and rear onyx 6 1/2s ... great sounding, and plenty of power.

By jeffrey on September 23, 2013

5 found this helpful


Great Value

I bought this amp on a tight budget for powering a pair of 6.5" Infinity. It's a clean sounding amp, but when used for 2-channel full range operation, I found that you have to turn up the Bass Eq knob to at least half way or it will sound much too lean and have no bass. The Bass Eq labeled 0-9dB boost, I was expecting 0dB means flat response with no boost with the knob all the way to the left.

Amp is well built with very high quality hardware; very surprising in this price range. Manual claims that connectors are silver plated; this would be a plus if true.

By Theo on December 12, 2012

5 found this helpful


great buy!

Works great. Not one single issue or adjustment since install 6 months ago.

By Thomas on March 26, 2012

5 found this helpful


solid and decently priced amp

Amp was cheap and sounds great. If you're on a budget and want good sound, I'd recommend it. Its mostly made of plastic though which is kind of new to me as most amps I've encountered are made mostly of metal.

By Brock on March 13, 2012

4 found this helpful


Worth the money

I had a limited budget in which to build my system and after a week or more of searching I settled on this amp for its price, wattage and manufacturer reputation. I am running it bridged into 4ohms on a JL10w0 and find it has more then enough power to destroy the sub if so desired. The original plan was to eventually use the FX2.60 for a set of front components, and it may stay that way but it will be because I purchased a second one of these amplifiers! On a budget, definitely consider this amplifier.

By Paul on February 13, 2012

4 found this helpful


I like it

This was my first amp. I had it powering two infinity kappas in my front doors and thought it did a perfectly acceptable job. I like the minimalist design. Over all I'd recommend it.

By Cod Father on August 2, 2011

4 found this helpful


Great Amp Great Price

You wont be unhappy one bit. This is probably the best mids and highs amp that I have owned. For the price you will not find one with better sound quality. I do sound quality car shows and it is clean and clear on the mids and highs. You wont be dissatisfied.

By Bigtone on March 22, 2012

3 found this helpful


Solid amp

For the price asked, you will not find a cleaner amp! Powers a 10 JL sub like a champ. Impresses me more each day I own it.

By getERdun on October 24, 2012

2 found this helpful


Very Impressed

I was looking for an amp for my 10" sub with a crossover below 80hz. This unit's selecatable crossover goes as low as 30hz. Have used it for over 6 months now and am very pleased with the performance. The price didn't break the bank either.

By Mike on May 14, 2012

2 found this helpful


Packs a Punch, Great Value

I bought this amp 3 years ago now and initially made a box for 2 6x9 speakers and powered them off of it. It worked tremendously, and I only used about 20-25% of the amps power to fully power the speakers.
Currently (3 years later), I am powering a 12" Kenwood sub woofer (400watt RMS, 2000 watt peak) and this amp does the job great! I have the settings using about 75% of the amps power now, and I still have to turn it down with a front mounted volume control at times.
This amp has survived 3 Canadian winters in my trunk (ran perfectly in -40 degree C/F temperatures). It ran great for me on Full pass (for my 6x9 pair speakers), and now it's working great for my 12" sub on Low Pass. It does everything you want, is durable, and has amazing value. Would absolutely recommend this product.

By Vincent on January 15, 2016




RC-HD1 small

FiiO RC-HD1

Replacement Cable Upgrade for Sennheiser HD598 Headphones

(1)

$24.99

List price $69.99

PSKA8R small

StreetWires PSKA8R

8 Gauge Power Stream Amplifier Installation Kit (Red)

(1)

$24.99

List price $34.99

MZ2360SRB small

Scosche MZ2360SRB Dash Kit

Install a new Double-DIN car stereo in select 2002-2009 vehicles from Mercedes-Benz (Black)

$475.99

List price $597.93

ATX950.4 small

Autotek ATX950.4

950W Max 4-Channel Class AB ATX Series Amplifier

(5)

$54.95

List price $149.95

HSRT8Y small

Xscorpion HSRT8Y

50 Pack of Yellow 12/10 Gauge Heat-Shrinkable Ring Terminals

$10.00

List price $19.99

AW1000J small

Audiobahn AW1000J

10" Dual 4 ohm High Excursion Series Car Subwoofer

(15)

$89.99

List price $199.99

X348NT small

XO Vision X348NT

In-dash 7" TFT-LCD Monitor with DVD, CD, VCD, MP4, WMA Player w/ Front 3.5mm Aux, USB, SD Card Input

(3)

$204.99

List price $499.99

PZA1600.4 small

Crunch PZA1600.4

1600W 4-Channel Class A/B Power Zone Series Car Amplifier

(12)

$83.28

List price $219.99

X404BT small

XO Vision X404BT

7" Motorized TFT-LCD Touchscreen Monitor with DVD, DivX, DVD-R, CD, MP3 Payer, BUILT-IN Bluetooth Hands-Free Technology, Remote and Front USB and SD Inputs

(1)

$229.99

List price $499.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1982 Dodge B150

2014 Ram 2500

2012 BMW M6

2007 BMW X3

2013 Jeep Compass

2013 Ford Expedition

1995 Ford Explorer

2020 Audi S3

2011 BMW 535i

2018 Kia Optima

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
