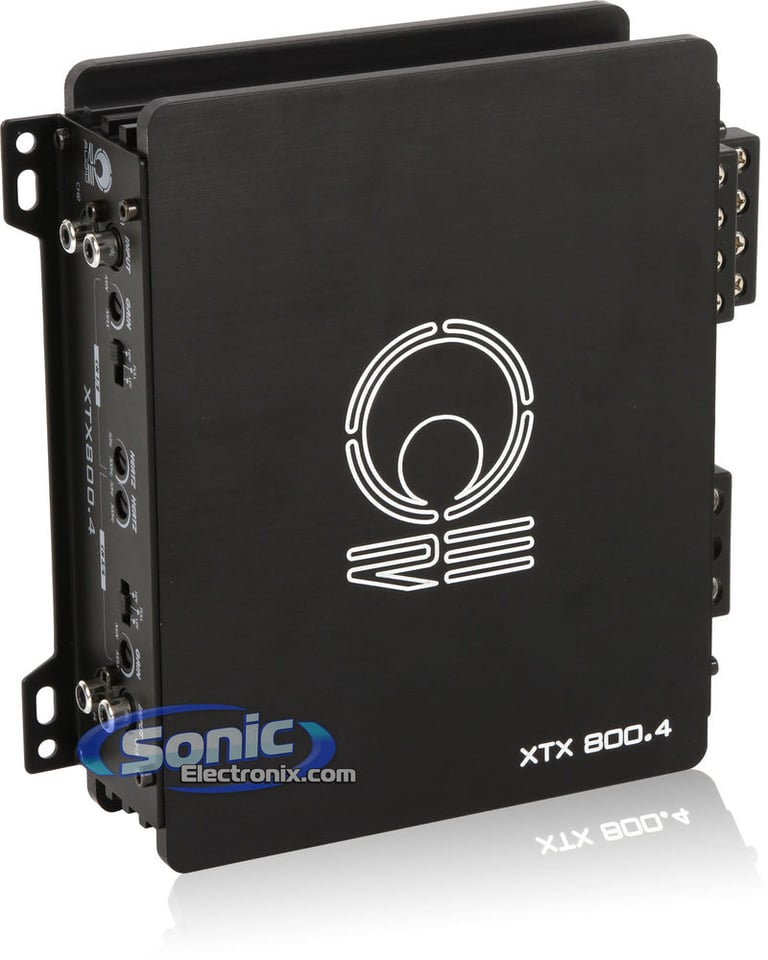

RE Audio XTX-800.4

800W 4-Channel Full Range Digital XTX Series Car Amplifier

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

• 4 ohm: 60 watts x 4 chan, 2 ohm: 90 watts x 4 chan
• 800W Dynamic
• 2-Way System Protection
• Brushed Aluminum Alloy Convection Cooled Heatsink
• Variable High/Low-Pass Filter
• Selectable Bass Boost

Learn more about the xtx8004

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

jp-tsh1 main

Metra JP-TSH1

Fender Light Harness for select 2018-2026 Gladiator and Wrangler (JL)

-10.64%

$41.99

List price $46.99

JP-1014 main

Metra JP-1014 Speaker Pods Adapters

Install aftermarket 6.5" or 6.75" speakers in select 2018-2024 Gladiator and Wrangler (JL)

7
-10.11%

$79.99

List price $88.99

JP-1019 main

Metra JP-1019 Soundbar Speaker Adapters

Install aftermarket 6" to 6.75" speakers in select 2024-2026 Gladiator and Wrangler

-10.26%

$174.99

List price $194.99

72-6514-12 main

Metra 72-6514-12

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

7
-14.30%

$11.99

List price $13.99

APH-CH03 main

PAC APH-CH03

18" Speaker Connection Harnesses for select 2016-2026 vehicles from Jeep, Dodge, Chrysler

-51.70%

$42.99

List price $89.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

REF3032CFXAM main

Infinity Reference 3032cfx (REF3032CFXAM)

150W Peak (50W RMS) 3.5" Reference Series 2-Way Coaxial 3-ohm Car Speakers

14
-42.32%

$74.95

List price $129.95

C1-650x main

JL Audio C1-650x

100W RMS 6.5" C1 Series 2 Way Coaxial 4-ohm Car Speakers

42

Product Highlights


• 4 ohm: 60 watts x 4 chan, 2 ohm: 90 watts x 4 chan
• 800W Dynamic
• 2-Way System Protection
• Brushed Aluminum Alloy Convection Cooled Heatsink
• Variable High/Low-Pass Filter
• Selectable Bass Boost

Description


RE Audio brand icon

Authorized dealer

The Digital age is here which means the Analog era is a thing of the past. We at Sonic Electronix are happy to be carrying RE Audio’s 2011 XTX Full Range Digital Series of amplifiers that are sure to meet any needs. The XTX series has multi-channel amplifiers available along with Monoblock amplifiers. All XTX series amplifiers feature a variable low-pass filter allowing you to better fine tune certain frequencies in your car audio system to get a sound that better suits you. The 2-way protection circuitry system well protect the amplifiers from any short circuit or thermal heat overload. This protection ensures the safety of your amplifier, devices, and vehicle at all times. All XTX series amplifiers feature a Pulse Width Modulated MOSFET power supply for increased efficiency and performance. RE Audio’s XTX series amplifiers all produce a clean stream of current while decreasing any distortion that is caused by cross frequencies or even from the engine of your car. If you are looking for a reliable, powerful and efficient amplifier, RE Audio’s XTX series amplifiers are the perfect choice for any installation and situation.

Product Features:
  • XTX Series 4-Channel Full Range Digital Car Amplifier
  • RMS Power Rating (14.4V):
    • 4 ohm: 60 watts x 4 chan.
    • 2 ohm: 90 watts x 4 chan.
    • Bridged, 4 ohm: 180 watts x 2 chan.
  • Dynamic power output: 800 watts
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • 4/3/2 channel operation
  • 2-Way System Protection circuitry (thermal and short circuit)
  • Heavy duty brushed aluminum alloy convection cooled heatsink for efficient heat dissipation

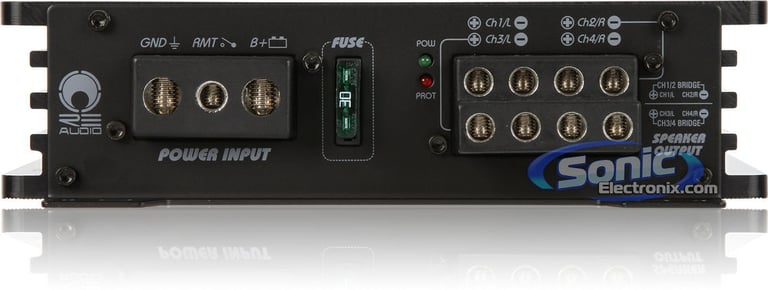

  • Nickel-plated RCA level inputs
  • Nickel-plated 12AWG screw terminals
  • Input sensitivity:
    • Low level: 200mV-6V

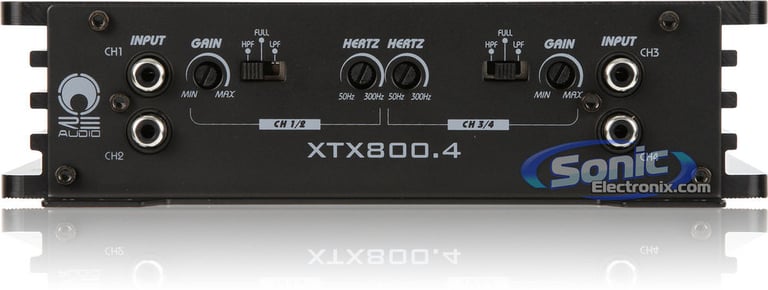

  • Variable high-pass filter (50-300 Hz, 24 dB/octave)
  • Variable low-pass filter (50-300 Hz, 24 dB/octave)
  • Signal to noise ration: 90dB
  • Frequency response: 10-30,000 Hz
  • Dimensions: 5-15/16"L x 7-1/2"W x 1-15/16"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Product history:

RE Audio XTX-800.4 thumbnail
(newest, current model)
RE Audio XT-800.4V3 thumbnail
(previous model, replaced by RE Audio XTX-800.4)

Loading...
R2-DB8V-TRK main

Alpine R2-DB8V-TRK

2000W Peak (700W RMS) Loaded Dual 8" R-Series Vented Truck Enclosure for select 2007-2024 vehicles from Ford, Jeep, Ram

1
-16.67%

$999.95

List price $1200.00

S2-DB8V-TRK main

Alpine S2-DB8V-TRK

600W Peak (300W RMS) Loaded Dual 8" Vented Enclosure for select 2007-2024 vehicles from Jeep, GMC, Ford

-16.67%

$849.95

List price $1020.00

JT-S84LD main

DS18 JT-S84LD

3600W Peak (1800W RMS) Loaded Quad 8" Sealed Enclosure with Digital LED Lights for select 2020-2026 Gladiator

$1,249.95

Limited time!
SBX-J-JTGLAD/10TW1 main

JL Audio Stealthbox® SBX-J-JTGLAD/10TW1

Custom Fit 10" Subwoofer Enclosure for select 2020-2026 Gladiator

-46.67%

$1,599.99

List price $2999.99

TXJ-TD8 main

AudioControl TX-JTD8

1000W RMS Loaded Dual 8" Vented Enclosure for select 2020-2024 Gladiator

-15.02%

$849.00

List price $999.00

JP-GL1-12 main

VIBE JP-GL1-12

900W Peak (300W RMS) Loaded Single 12" Vented Truck Subwoofer Enclosure for select 2020-2025 Gladiator

MBQJT-SUB-1 main

MB Quart MBQJT-SUB-1

Custom underseat enclosure with two 8" subs fits select 2020-2026 Gladiator

-10.00%

$629.99

List price $699.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(25)

$279.99

List price $335.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$304.99

List price $379.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

MDX2000.4 2 Ohm small

PRV Audio MDX2000.4 2 Ohm

• 330 watts x 4 channel @ 4 ohm
• 500 watts x 4 channel @ 2 ohm
• Bridged: 1000 watts x 2 channel @ 4 ohm
• Total RMS Power: 2000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$219.91

List price $274.89

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
60 watts x 4 channel
RMS Power @ 2 ohms
90 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
180 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
800 watts
Total RMS Power Output
360 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.1%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 300 Hz
Low-Pass Crossover Frequency
50 - 300 Hz
Signal-to-Noise Ratio
90 dB
Remote bass/level controller
No
Fuse Rating
30A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XTX-800.4

Weight:

4.64lbs

Internal SKU:

xtx8004

Internal Product ID:

35815

Product and How-to Videos


  • RE Audio New Product Line Overview | CES 2015
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


RE Audio XTX-800.4 thumbnail image

5 star
60%
4 star
20%
3 star
10%
2 star
10%
1 star
0%



Durability
4.1
Value
4.5
Features
4.2
Design
4.4
Usability
4.5

Customer Reviews

Sort by:

Loading...

Good amp

Very small so it can fit almost anywhere but don't let the size fool you it packs a big punch.

By Jacob on August 24, 2011

28 found this helpful


Low cost big value.

Good amp for the money. Not the cleanest sound but does a great job for the price.

By brett on June 21, 2013

20 found this helpful


Better than expected

This little amp didn't look like much, but it drove the 6.5 infinitiy's I had cleanly, and it ran cool. Small size and it works great.

By Shade on October 18, 2012

19 found this helpful


For the price of this little amp can't beat it

I only have two Re xxx 6x9 and tweeter s but thay rock

By brian on December 15, 2014

19 found this helpful


Sweet!!!

Picked this up for my wife's truck. Looks and sounds great!!

By danny on March 9, 2014

16 found this helpful


so so.

the RE 800.4 was powering 6 speakers x2 6-9, x4 6.5. amp delivered good sound and enough power to all my speakers. all my speakers r Rockford power series.

the RE amp did have a short life only 5 months! it did not burn out the fuses never went out. I just don't know?

price for this amp is good, but you get what you pay for.

ill say save a bit more to get a better 4ch amp.
will not go back to RE audio.
my opinion.

By fred on November 4, 2013

17 found this helpful


tiny, but powerful

I expected this amp to be small, but i was still surprised. Its about the size of my hand. Great for space savers. The sound i get from this thing is amazing and very clear. No audible distortion or anything. It is powering three sets of RE speakers, and still has enough power to keep up with my subwoofers. The amp itself is surprisingly heavy for its size, and seems very well built. As for the power and price, this is probably one of the best quality amps you can find. Also isn't bloated with features you don't need or shouldn't use. I went from a 1,000 watt four channel from a cheap brand, to this and there is a Huge difference in the clarity, and this one gets just as loud. If only it were linkable to run two of them, it'd be the perfect amp.

By mike on April 13, 2014

15 found this helpful


Don't bother!

I had 2 pairs of 5-way 6x9 Kenwood speakers in my Camry. They sounded good with my Kenwood Nav unit, but when I added this amp, the amp distorted a lot when turned up passed half way. I had the amp gains all the way down with the same result. I switched them with some MB Quart equipment for about the same price.

By Nick on January 4, 2013

14 found this helpful


5 stars so far!!!!!

I was looking for a small amp to install in the stock location of my 00 Maxima in place of the Bose system. I wanted to install the cheapest possible audio system since the car is almost 15 yrs old. I installed Powerbass 6.5 comps in the front doors and 5.25 in the rear door. $60 for both sets. For any 5th Gen Max w/Bose owners, I was able to use the stock speaker mounts without modification. I'm using 2 Sundown E8v3's in a 1.4 cf box tuned to 34 hz powered by an Audiotechnix AT800.1 at 1 ohm. I'm running everything off a Kenwood Excelon receiver. The Re amp produces the power i was looking for in a small package at a great price. This isn't the 1st Re product I have purchased. I still have a Re SSX 12 that is still beating strong and getting angry looks after 5 yrs. I'm considering buying 2nd one since it is such a great price!!!

By Semrod on July 21, 2014

12 found this helpful


By Anonymous Shopper on September 7, 2023

10 found this helpful




OPTI3500D small

Lanzar OPTI3500D

3500W RMS, Monoblock Class D OptiDrive Series Car Amplifier

(1)

$524.99

List price $1529.99

D 1200 small

Massive Audio D 1200

1200W Max, 1 Channel Monoblock D Block Series Car Amplifier

$179.95

List price $429.95

SYGB17 small

MA Audio SYGB17

Low Profile Distribution Block with Two 0 Gauge Inputs and Four 4 Gauge Outputs

(7)

$8.99

List price $49.99

OPTI4601D small

Lanzar OPTI4601D

4600W RMS, Monoblock Class D OptiDrive Series Car Amplifier

$599.99

List price $1499.99

70-6506 small

Metra 70-6506

Amplifier Bypass Harness for 2004-2008 Chrysler Pacifica

$29.99

List price $72.99

SMPS-550 small

Jensen SMPS-550

Portable iPad Speaker with Adjustable Stand

$11.95

List price $39.99

16-MCD4KW small

Memphis 16-MCD4KW

4000W RMS, Class D Monoblock MOJO Series Amplifier

(3)

$1199.99

List price $1999.99

GDI-IR1000 small

Grace Digital Audio GDI-IR1000

Desktop Stereo WiFi Wireless Internet Radio with Pandora/SIRIUS/MP3 Tunes/HD iRadio Support

$134.99

List price $199.99

GT02G small

Xscorpion GT02G

Gold-Plated 0/2 Gauge Ground Terminal with Adapter

$4.53

List price $11.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2011 Dodge Challenger

2018 Mazda 3

2018 Mazda 3

1983 Buick Skyhawk

2003 Dodge Durango

2009 Chrysler Sebring

2024 Jeep Gladiator

2002 Daewoo Lanos

2008 MINI Cooper

2022 Audi A4

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
