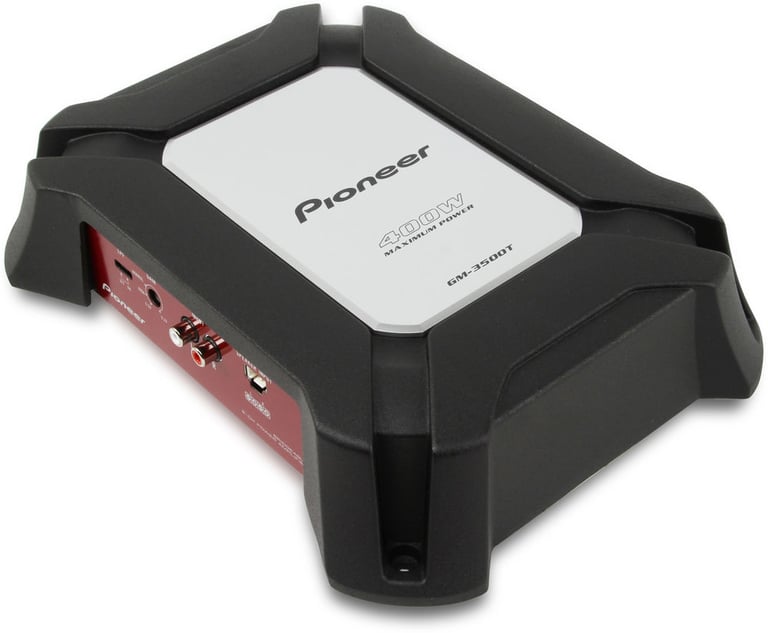

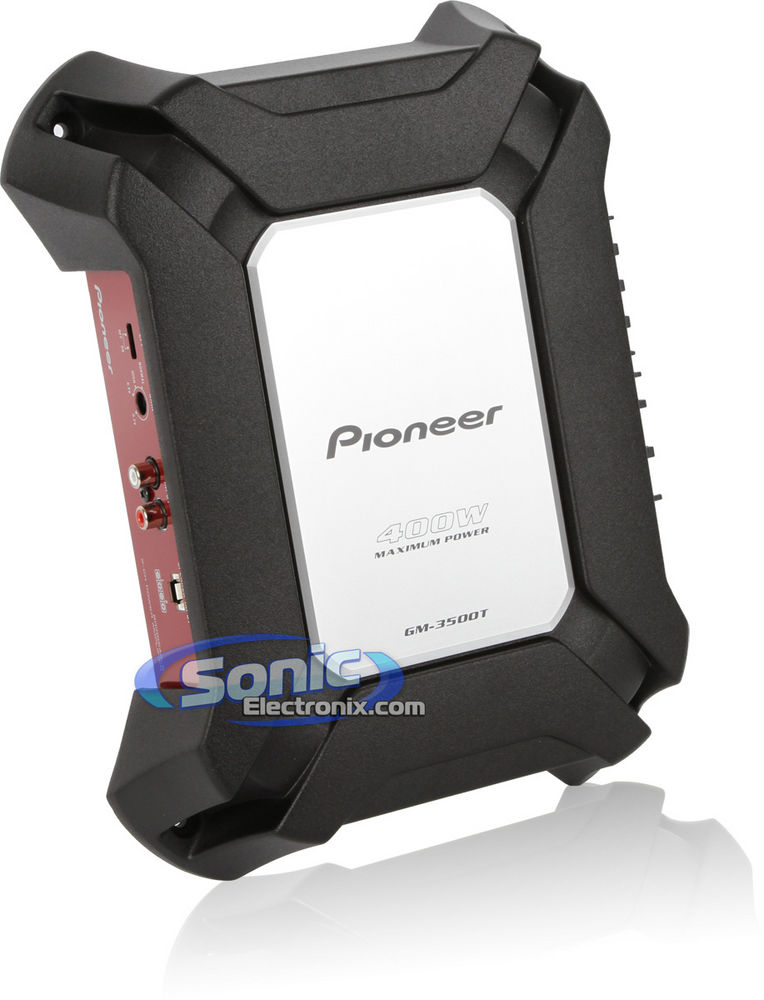

Pioneer GM-3500T

400W Max 2-Channel GM Series Car Amplifier w/ High-Level Speaker Inputs

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

• GM Series 2-Channel Class A/B Car Amplifier
• 60W x 2 Chan. @ 4 Ohm
• 85W x 2 Chan. @ 2 Ohm
• 185W x 1 Chan. Bridged
• 400 Watts Max
• Selectable Bass Boost
• Speaker-Level Inputs
• Variable Low-Pass Filter
• CEA-2006 Compliant Amplifier

Learn more about the gm3500t

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

gma3702 thumbnail

Pioneer GM-A3702

OUR PRICE: $89.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

22
-20.01%

$119.95

List price $149.95

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

Product Highlights


• GM Series 2-Channel Class A/B Car Amplifier
• 60W x 2 Chan. @ 4 Ohm
• 85W x 2 Chan. @ 2 Ohm
• 185W x 1 Chan. Bridged
• 400 Watts Max
• Selectable Bass Boost
• Speaker-Level Inputs
• Variable Low-Pass Filter
• CEA-2006 Compliant Amplifier

Description


Pioneer brand icon

Authorized dealer

Product Features:
  • GM Series 2-Channel Class A/B Car Amplifier
  • RMS Power Rating: (14.4V)
    • 4 ohm: 60 watts x 2 chan.
    • 2 ohm: 85 watts x 2 chan.
    • Bridged, 4 ohm: 185 watts x 1 chan.
  • Max power output: 400 watts x 1 chan.
  • MOSFET power supply
  • LED power indicator
  • 2/1 Channel operation

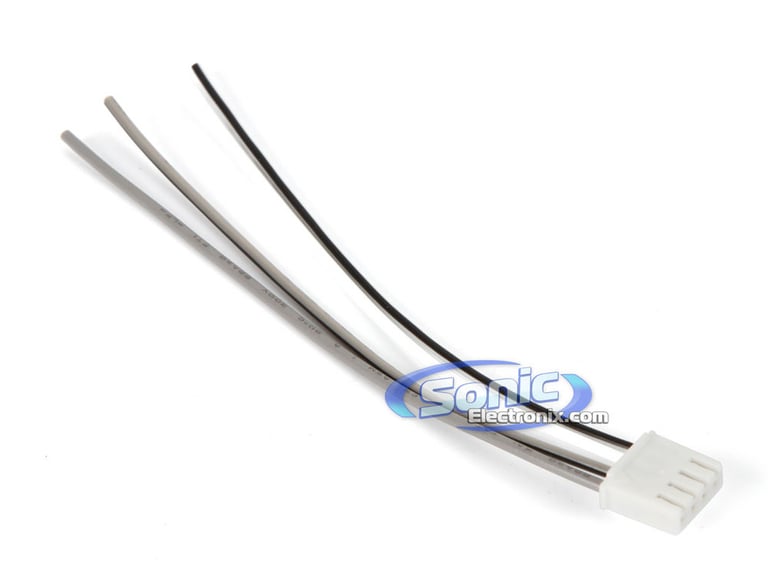

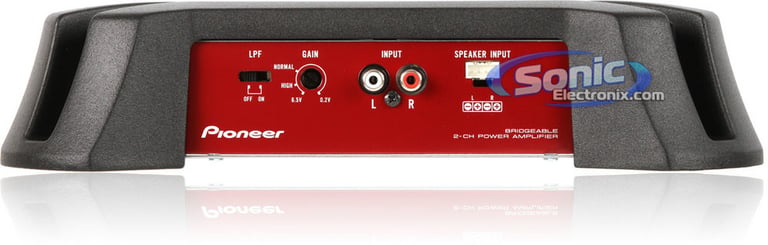

  • 2-Channel speaker-level inputs
  • Heavy duty heatsink and a sub-heatsink for maximum heat dissipation
  • Nickel-plated RCA level inputs

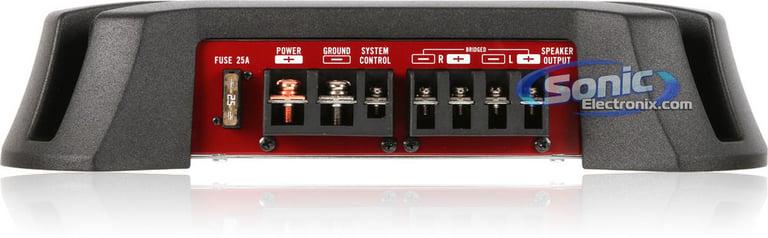

  • Nickel-plated screw terminals
  • Fixed low-pass filter (80 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 10-70,000 Hz
  • Dimensions: 8-5/8"L x 11-3/8"W x 2-1/2"H
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

Product history:

Pioneer GM-A3702 thumbnail
(newest, current model)
Pioneer GM-A3602 thumbnail
(previous model, replaced by Pioneer GM-A3702)
Pioneer GM-3500T thumbnail
(previous model, replaced by Pioneer GM-A3602)
Pioneer GM-3400T thumbnail
(previous model, replaced by Pioneer GM-3500T)
Pioneer GM-3300T thumbnail
(previous model, replaced by Pioneer GM-3400T)

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
60 watts x 2 channel
RMS Power @ 2 ohms
85 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
185 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
400 watts
Total RMS Power Output
185 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
80 Hz
Signal-to-Noise Ratio
98 dB
Bass Boost
Selectable (0, 6, 12dB)
Remote bass/level controller
No
Fuse Rating
25A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

GM-3500T

Weight:

5.00lbs

Internal SKU:

gm3500t

Internal Product ID:

37739

Product and How-to Videos


Customer Ratings & Reviews


Pioneer GM-3500T thumbnail image

5 star
64%
4 star
36%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4.6
Features
4.6
Design
4.5
Usability
4.8

Customer Reviews

Sort by:

Loading...

Well worth it

Gives great power to my RF 6x9s. Easy to set up and good power from something small. easy to hide in the car.

By chris on March 12, 2013

33 found this helpful


great amp

Got this amp awhile ago and its still running great. Works very well with my single 10" audiobahn sub. Clean sound and pretty powerful for the size.

By jared on May 30, 2013

30 found this helpful


Great amp

This amp is really great for the price. It doesn't get very warm at all, even when playing music really loudly. I have this hooked up to a pair of Rockford Fosgate P1692s and it sounds really really great. As far as I can tell, the only unwanted noise coming out of this amp is from my iPhone's mediocre headphone jack. This amp has really clean output. I haven't come across any problems with it so far. The terminals are pretty easy to use. I didn't have to adjust the gain at all for my use. Since this is a CEA compliant amp, you get exactly what you pay for. It is quite loud, although I could foresee wanting a more powerful amp. I have not tried the bridging feature.

By beak90 on February 12, 2012

29 found this helpful


Good Amp!

Very good amp, I have this connected to my speakers 6 1/2 on my honda civic, clean sound and never got hot.

By Carlos on April 12, 2012

29 found this helpful


Great Company

The following review is for a previous version (GM-3300T).

pioneer is one of the best audio/video companies there is. This is a great price for an amazing amp!

By Nick on September 11, 2008

27 found this helpful


WOW!

The following review is for a previous version (GM-3300T).

This Pioneer GM-3300T are connected to 2 pioneer 6x9's and man they slap.
really good, combination.
I like it also because it fit right under my car seat. great.

By Cesar on July 13, 2007

26 found this helpful


Pioneer GM 3400T

The following review is for a previous version (GM-3400T).

I have this unit on my boat and it works great. I have had no issues with is unit and would recommend it.

By Bo on March 3, 2011

25 found this helpful


Big sound in a small package!

The following review is for a previous version (GM-3400T).

I have been using the same amps and same components since 2003. Moved them from car to car, until finally one channel on my Lanzar amp started to go out intermittently. I have been strapped for cash, so finding a good amp at a great price was key.
This amp looked great on paper, small foot print, more than adequate power, great sound quality specs. I went ahead and ordered it.
When it came in I placed it side by side with my Lanzar amp, it was smaller in all dimensions. As soon as I plugged it in I could hear the difference. I was able to go to much higher volumes with much cleaner sound through a set of Infinity reference 6.5 inch components that are 6 years old.
I am extremely pleased with this amp, and look forward to buying its big brother when I can afford it!

By Willie on November 11, 2010

25 found this helpful


solid amp

The following review is for a previous version (GM-3400T).

solid amp. good value for the money

By bill on April 25, 2011

23 found this helpful


Good Amp

The following review is for a previous version (GM-3400T).

I've had this amp for 2 years and it's a good amp. I had it hook up bridged and it push my Rockford P1 pretty good. The bass was loud and clean, only thing is at 2 ohm the amp got a little hot but, didn't cut off.

By MDub on November 11, 2010

23 found this helpful
