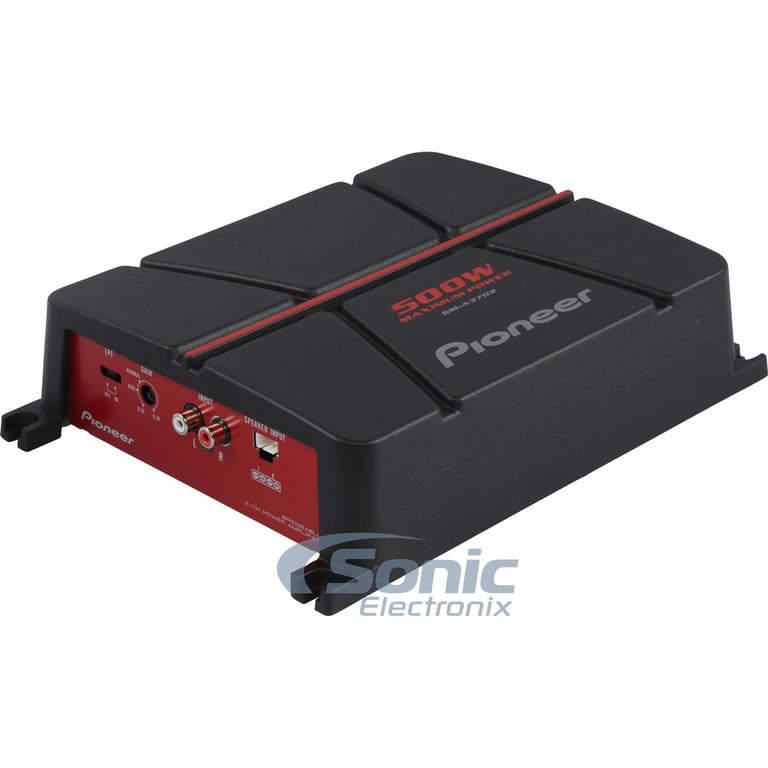

Pioneer GM-A3702

500W Peak (190W RMS) GM Series Class-AB 2-Channel Amplifier

Pioneer
Shop all Pioneer
highlight-star-icon

• 60 watts x 2 channel @ 4 ohm
• 95 watts x 2 channel @ 2 ohm
• Bridged: 190 watts x 1 channel @ 4 ohm
• Total RMS Power: 190 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

Learn more about the gma3702

We apologize

This item has been discontinued


Loading...
82-7400 main

Metra 82-7400

Speaker Adapter for select 2000-2024 vehicles from Nissan, Audi, Mazda

5
-10.00%

$26.99

List price $29.99

NSB710 main

American International NSB710

6.5" or 6.75" Speaker Mounting Adapters for select 1995-2019 vehicles from Nissan, Infiniti, Suzuki

17
-64.74%

$11.99

List price $34.00

40-NI12 main

Metra 40-NI12

Antenna Adapter for select 2005-2025 vehicles from Nissan, Infiniti, Acura

31
-28.59%

$9.99

List price $13.99

70-7552 main

Metra 70-7552 Wiring Harness

Install a new car stereo in select 2007-2024 vehicles from Nissan, Subaru, Suzuki

34
-15.40%

$10.99

List price $12.99

72-7401 main

Metra 72-7401

Install New Speakers in select 2000-2024 vehicles from Nissan, Infiniti, Chevrolet

16
-13.34%

$12.99

List price $14.99

72-7400 main

Metra 72-7400

Install New Speakers in select 1990-2024 vehicles from Nissan, Infiniti, Mercury

20
-46.70%

$7.99

List price $14.99

95-7619 main

Metra 95-7619 Dash Kit

Install a new Double-DIN car stereo in select 2013-2021 Frontier and Titan and Xterra

2
-50.02%

$15.99

List price $31.99

82-7403 main

Metra 82-7403

Tweeter Mounting Brackets for select 2003-2024 vehicles from Nissan, Infiniti, Audi

2
-41.68%

$13.99

List price $23.99

NI6 main

PAC NI6

Install a New Car Stereo and Retain the Factory Antenna in select 2005-2020 vehicles from Nissan, Infiniti, Suzuki

-62.50%

$9.00

List price $24.00

NDK780 main

American International NDK780

Single DIN or Double DIN Stereo Dash Kit for select 2012-2018 vehicles from Nissan

-54.57%

$19.99

List price $44.00

Description


Pioneer brand icon

Authorized dealer

Product Details:

  • GM Series Class A/B 2 ohm Stable 2-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 60 watts x 2 channel
    • 2 ohm: 95 watts x 2 channel
    • Bridged: 190 watts x 1 channel @ 4 ohm
  • Total power output: 190 watts
  • LED Power/Protect Light

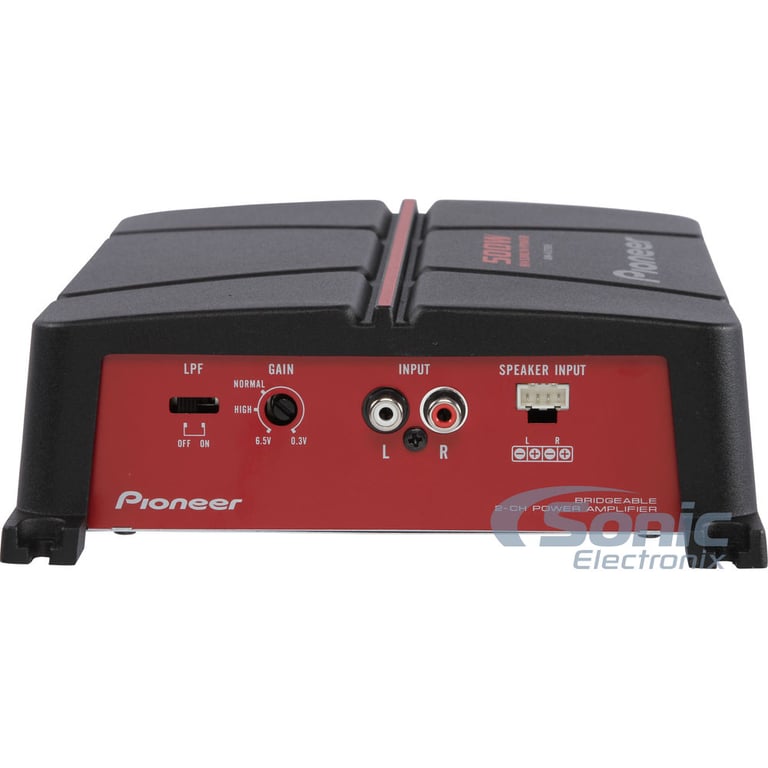

  • Speaker-level (high-level) inputs
  • Signal sensing remote turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Balanced isolator input circuit
  • CTA-2006 compliant
  • Input sensitivity:
    • Low level: 0.3 - 6.5 volts
    • High level: 3 - 26 volts
  • Frequency Response: 10 - 70 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 95 dB
  • Selectable low-pass filter: 0 - 80 Hz

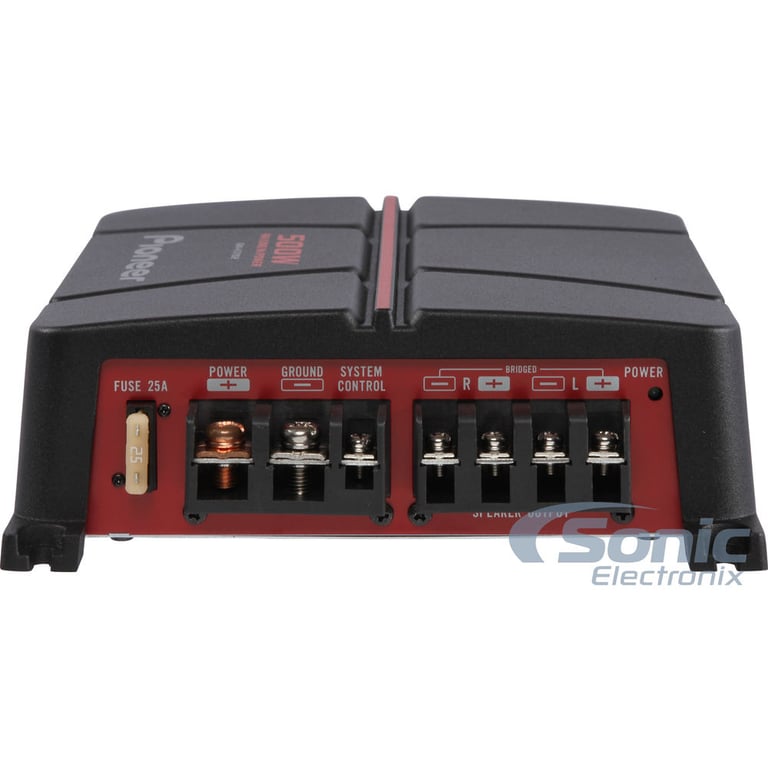

  • Fuse Rating: 25A
  • 10 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 9-5/8" L x 7-1/8" W x 2-3/8" H
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty
  • MFR #: GM-A3702
PDF IconPioneer GMA3702 owner’s manual

Product history:

Pioneer GM-A3702 thumbnail
(newest, current model)
Pioneer GM-A3602 thumbnail
(previous model, replaced by Pioneer GM-A3702)
Pioneer GM-3500T thumbnail
(previous model, replaced by Pioneer GM-A3602)
Pioneer GM-3400T thumbnail
(previous model, replaced by Pioneer GM-3500T)
Pioneer GM-3300T thumbnail
(previous model, replaced by Pioneer GM-3400T)

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

VADM2 small

NVX VADM2 v2 (VADM2v2)

• 200 watts x 2 channel @ 4 ohm
• 300 watts x 2 channel @ 2 ohm
• Bridged: 600 watts x 1 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(17)

$199.99

List price $239.99

ION700.2D small

DS18 ION700.2D

• 240 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

$299.95

List price $359.99

MFA 2.520 small

Deaf Bonce Machete MFA 2.520

• 520 watts x 2 channel @ 4 ohm
• 750 watts x 2 channel @ 2 ohm
• Bridged: 1500 watts x 1 channel @ 4 ohm
• Total RMS Power: 1500 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

(2)

$239.90

List price $239.90

H400.2D small

Cerwin-Vega H400.2D

• 80 watts x 2 channel @ 4 ohm
• 125 watts x 2 channel @ 2 ohm
• Bridged: 290 watts x 1 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable 2-Channel Amplifier

$239.99

List price $287.99

NBA201 small

NVX NBA201

• 200 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

(11)

$99.99

List price $249.99

PBR300X2 small

Rockford Fosgate Punch PBR300X2

• 100 watts x 2 channel @ 4 ohm
• 150 watts x 2 channel @ 2 ohm
• Bridged: 300 watts x 1 channel @ 4 ohm
• Total RMS Power: 300 watts
• Class BR 2 ohm Stable 2-Channel Amplifier

(22)

$249.99

List price $279.99

GP-2000.2 small

Crunch GP-2000.2

• 500 watts x 2 channel @ 4 ohm
• 1000 watts x 2 channel @ 2 ohm
• Bridged: 2000 watts x 1 channel @ 4 ohm
• Total Peak Power: 2000 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

$74.99

List price $119.99

Specifications & Details


Key Features
Amplifier Key Features
Bass Boost
Speaker Level Inputs
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
60 watts x 2 channel
RMS Power @ 2 ohms
95 watts x 2 channel
Bridged RMS Power
190 watts x 1 channel
Amplifier Specifications
Series
GM Series
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
500 watts
Total RMS Power Output
190 watts
Maximum Input Gauge Size
10 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Frequency Response
10 - 70 Hz
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
0 - 80 Hz
Signal-to-Noise Ratio
95 dB
Remote bass/level controller
No
Fuse Rating
25A x 1
Total Fuse Rating
25
Strappable
No
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
0.3 - 6.5 volts
High-Level Input Sensitivity
3 - 26 volts
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Amplifiers
Amplifier

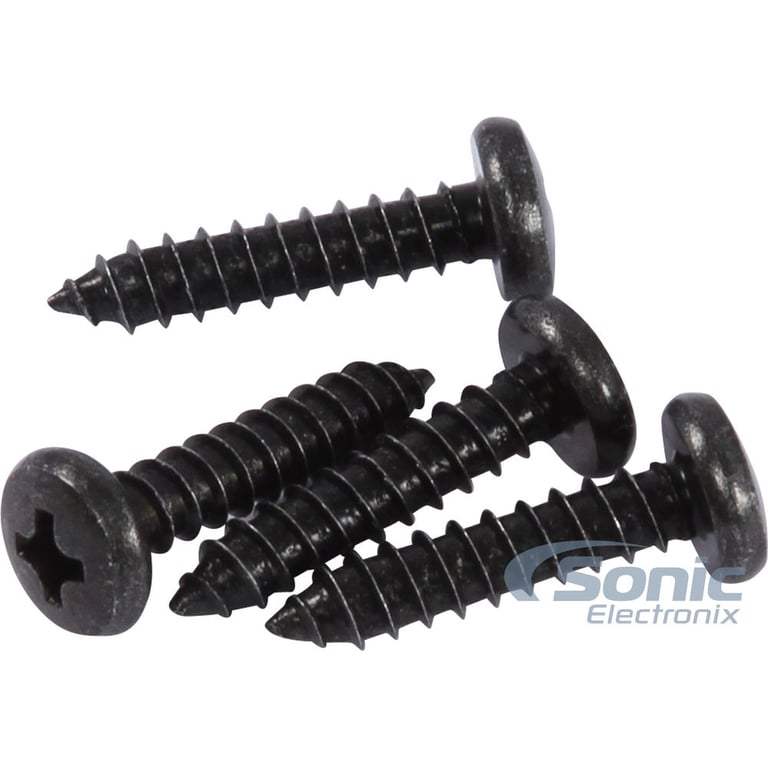

Mounting screws (4)

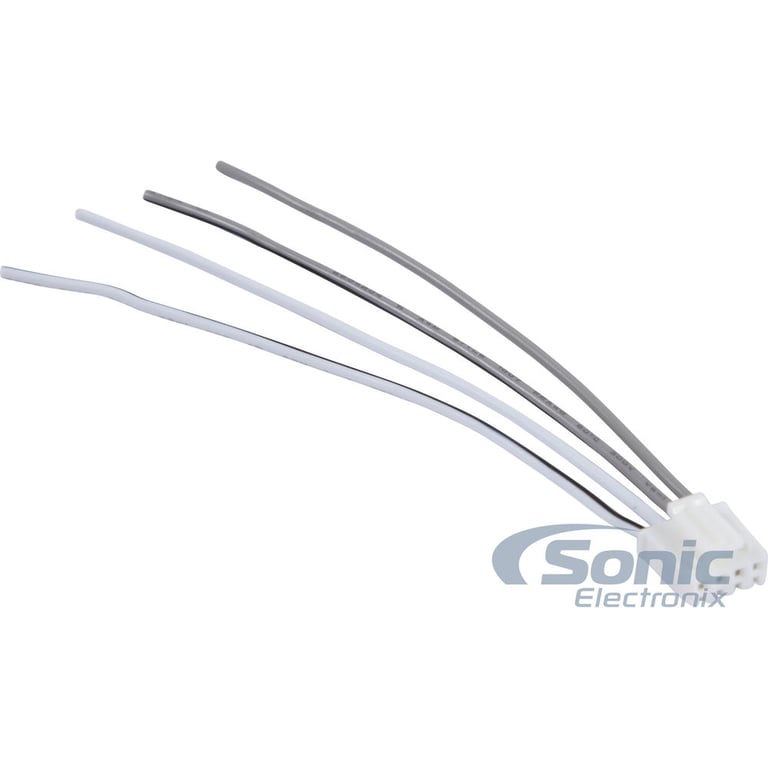

High-level input wiring harness w/ molex connector
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

GM-A3702

Weight:

4.00lbs

Internal SKU:

gma3702

Internal Product ID:

121755

Customer Ratings & Reviews


Pioneer GM-A3702 thumbnail image

5 star
73%
4 star
18%
3 star
9%
2 star
0%
1 star
0%



Durability
4.5
Value
4.9
Features
4.2
Design
4.5
Usability
5

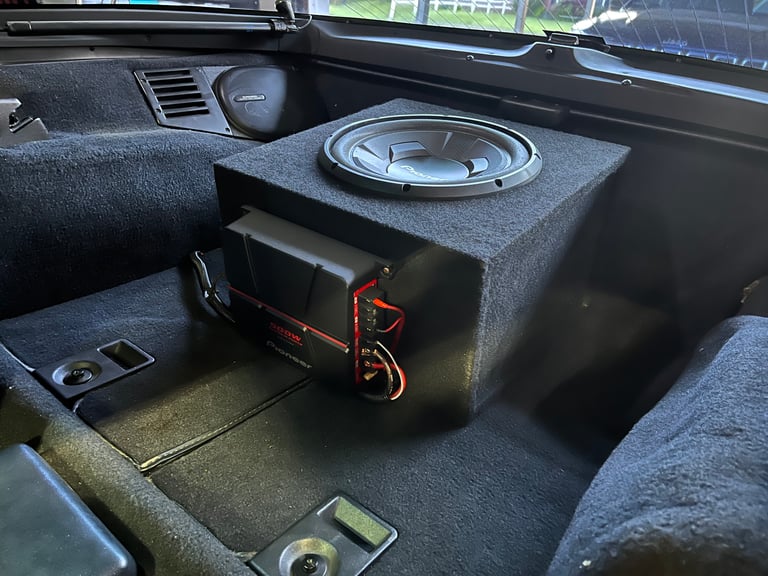

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Pioneer GM-A3702

Item was amazing . Works perfect in my car .. thanks a lot

By Anonymous on June 26, 2018

38 found this helpful


Just what I needed

Purchased this to give my Alpine Type S components the power they required. Still a little bit short of their true potential, but way cleaner than they were off of the head unit. Can't beat it for the price.

By James on March 13, 2018 Checkmark Icon Verified purchase

38 found this helpful


Great Value!!!

This little amp is strong, you do get what you pay for which is only around 190 watts but it's clear power and not underrated.Can run it 2 hrs straight not even close to being hot, dependable.

By Anonymous on December 16, 2018 Checkmark Icon Verified purchase

37 found this helpful


Great amp for the money

Great amp for the money works like it should will recommend to any one needing an amp i got in my 97 dodge ram hooked to 2 6x9s in boxes sounds great

By cody on January 12, 2018

37 found this helpful


Gear Amp !

I bought this amp to give me a little more volume in a noisy pickup and it far exceeds my expectations.

By Anonymous on August 24, 2018

37 found this helpful


great amp

500 watts is perfect for a 12 inch sub in an open rear compartment, hard bass.

By Tim on June 13, 2022 Checkmark Icon Verified purchase

35 found this helpful


Pioneer GM-A3702

I bought this amp to run one 12" Infinity Subwoofer and I have to say that it works great. The amp does get pretty hot, but it has never cut out on me. I would definitely recommend this amplifier for a small system setup.

By Phil on September 7, 2022

34 found this helpful


Good deal

Great value and sound. Was not hard to install fits under the seat perfectly

By fred on March 29, 2021 Checkmark Icon Verified purchase

34 found this helpful


Good deal

Works great for me because I need a small and that's a good job for the price

By jens on February 8, 2017

34 found this helpful


Excellent buy

It was a little bigger than I wanted for my bike, but still got it under the fairing with the radio, and does it ever pound.. Can't be more satisfied. Also let's me get my radio stations loud n clear, where class d amplifier didnt.

By Thomas on October 7, 2023 Checkmark Icon Verified purchase

20 found this helpful




I10001_BAK82 small

Precision Power i1000.1 with Belva 8 Gauge Amp Kit

650W Class D Monoblock Amplifier

(98)

$209.99

List price $324.98

CVE52PUR small

Coby CVE52PUR Jammerz (Purple CVE52) Stereo Earphones

Inner-Ear Isolation Digital Stereo Earphones/Earbuds

$5.99

List price $15.99

IEP385WHT small

iLuv iEP385WHT JetTurbo In-Ear Headphones/Earbuds with iPod/iPhone Remote (White)

JetTurbo High-Performance Earphones with SpeakEZ Remote for iPad/iPhone/iPod (IEP385WHT)

$11.99

List price $34.99

GM-5500T-RB small

Pioneer GM-5500T (Factory Refurbished)

820W Max 2-Channel GM Series Car Amplifier

$79.99

List price $199.99

03-09-NISSAN-350Z-FD-ALP small

Alpine E Series Front Door Speaker Replacement Package

Fits select 2003-2008 Xterra

(35)

$97.93

List price $111.98

CF10U small

MTX Audio Thunderform CF10U (Black, Unloaded)

Unloaded Single 10" Custom-fit Bass Slammer Subwoofer Enclosure for 1993-up Chevrolet Camaro and 1997-2002 Pontiac Firebird

(1)

$349.95

List price $449.95

IEP385BLU small

iLuv iEP385BLU JetTurbo In-Ear Headphones/Earbuds with iPod/iPhone Remote (Blue)

JetTurbo High-Performance Earphones with SpeakEZ Remote for iPad/iPhone/iPod (IEP385BLU)

$11.99

List price $34.99

MPA7004D_BAK44 small

Precision Power (PPI) MPA700.4D with Belva 4 Gauge Amp Kit

700W RMS ATOM Series Water-Resistant Class D 4-Channel Amplifier

(61)

$247.48

List price $289.98

IEP386ORG small

iLuv iEP386ORG JetTurbo Earphones/In-Ear Headphones with Remote (Orange)

JetTurbo Earphones/Headphones with Smartphone SpeakEZ Remote (Orange) (IEP386ORG)

$8.99

List price $34.99

Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2017 Lexus RX450h

2018 Nissan Frontier

2011 Audi A6

2014 Honda Pilot

2017 Ford Mustang

2012 Ford Mustang

2005 GMC Sierra 1500

2004 Ford Explorer

1995 Mitsubishi Eclipse

2002 Chevrolet Astro

Vehicle
Store
Delete

2017 Can-Am Defender XT HD8

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
