Name: Pioneer GM-3400T
Brand: Pioneer
SKU: gm3400t
Price: 77.99 USD
Availability: Discontinued
Rating: 4.4286 (7 reviews)

Shop all Pioneer

by Pioneer

About
Similar Products
Specs & Details
Product Videos
Reviews
Add-ons
Related Searches

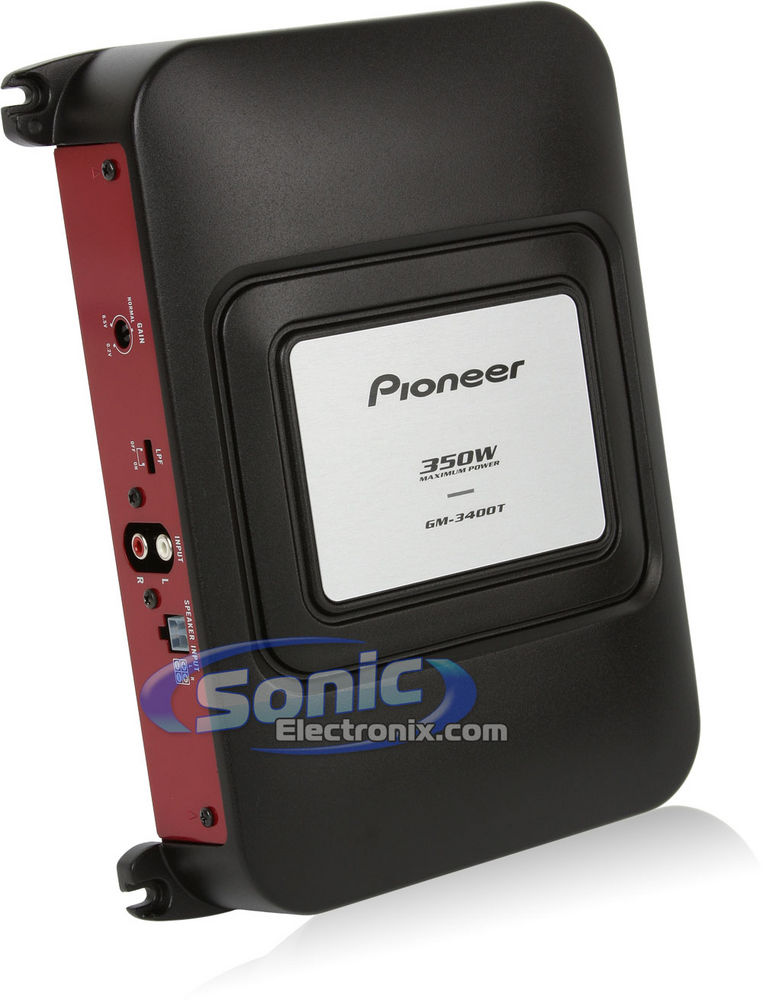

Pioneer GM-3400T Image 1 — Pioneer GM-3400T

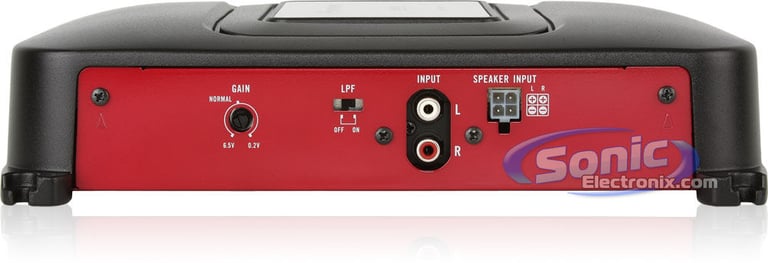

Pioneer GM-3400T Image 2 — Pioneer GM-3400T

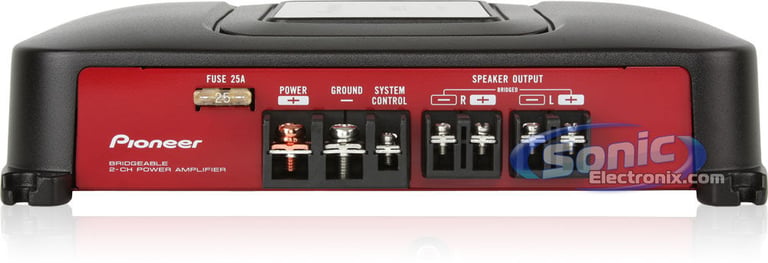

Pioneer GM-3400T Image 3 — Pioneer GM-3400T

Pioneer GM-3400T Image 4 — Pioneer GM-3400T

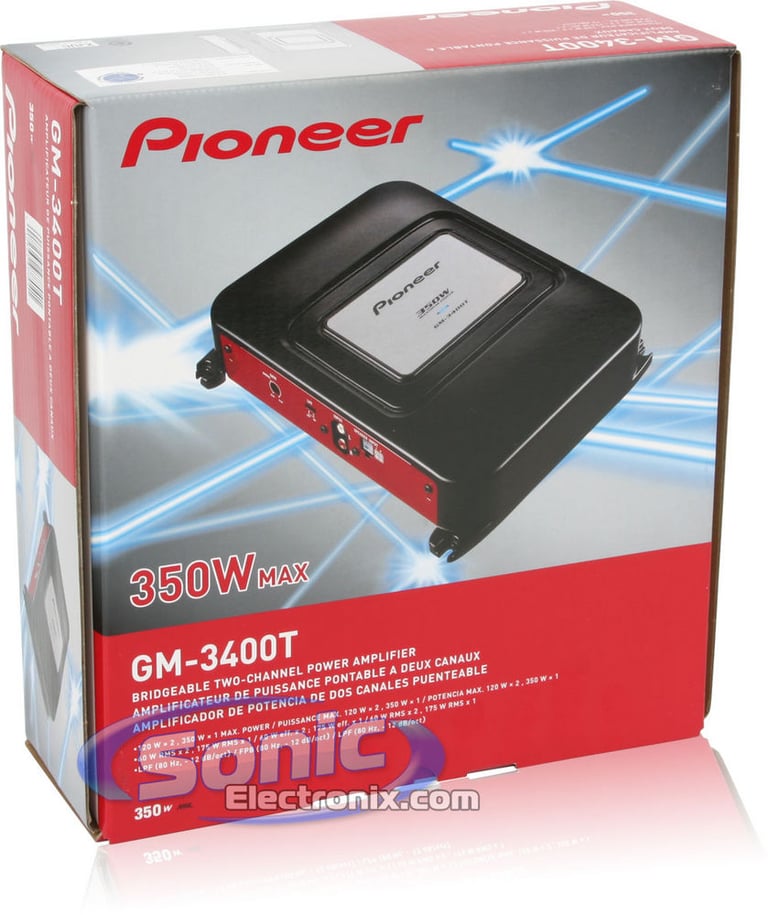

Pioneer GM-3400T Image 5 — Pioneer GM-3400T

Product videos

Product highlights

2-Channel Amplifier • 4 ohm: 60 watts x 2 • 2 ohm: 75 watts x 2 • Bridged, 4 ohm: 150 watts x 1 • Beat Frequency Control Switch • Gain Control • Selectable LPF • Speaker Output Terminal

Learn more about the gm3400t

Product Highlights

2-Channel Amplifier • 4 ohm: 60 watts x 2 • 2 ohm: 75 watts x 2 • Bridged, 4 ohm: 150 watts x 1 • Beat Frequency Control Switch • Gain Control • Selectable LPF • Speaker Output Terminal

Description

Authorized dealer

2-Channel Amplifier
RMS Power Output:

4 ohm: 60 watts x 2 channels
2 ohm: 75 watts x 2 channels
Bridged, 4 ohm: 150 watts x 1 channel

Max Power Output: 300 watts
Beat Frequency Control switch
Gain Control
2/1 Channel operation
Low T.H.D. Rating (Total Harmonic Distortion)

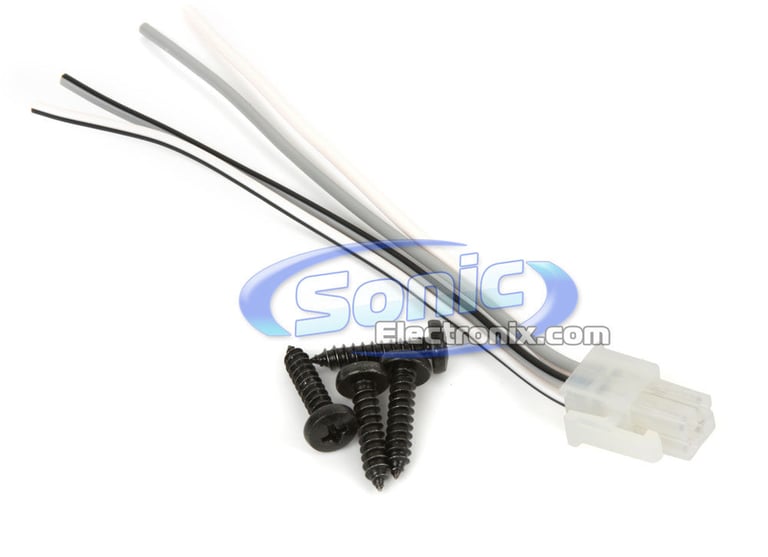

Speaker level inputs with the included level adapter
Load impedance up to 8 Ohm
Low-Pass-Filter select switch
RCA input jack
Nickel-plated RCA level inputs
Nickel-plated screw terminals
Fuse Rating: 25A x 1
Frequency Response: 10-50,000Hz
Speaker output terminal
CEA-2006 compliant amplifier
Dimensions: 7-5/8"L x 11-13/16"W x 2-3/8"H
8-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
1-year SonicElectronix.com warranty

Product history:

	Pioneer GM-A3702 (newest, current model)
	Pioneer GM-A3602 (previous model, replaced by Pioneer GM-A3702)
	Pioneer GM-3500T (previous model, replaced by Pioneer GM-A3602)
	Pioneer GM-3400T (previous model, replaced by Pioneer GM-3500T)
	Pioneer GM-3300T (previous model, replaced by Pioneer GM-3400T)

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

60 watts x 2 channel

RMS Power @ 2 ohms

75 watts x 2 channel

RMS Power @ 1 ohm

Not Stable

Bridged RMS Power

150 watts x 1 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

2-Channel

Total Peak Power Output

300 watts

Total RMS Power Output

150 watts

Maximum Input Gauge Size

8 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

.008%

Speaker Level Inputs

Yes

Preamp Outputs

High-Pass Crossover Frequency

12 dB

Low-Pass Crossover Frequency

12 dB

Signal-to-Noise Ratio

100 dB

Channel Separation

70 dB

Remote bass/level controller

Fuse Rating

25A x 1

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Sonic Electronix

Customer Ratings & Reviews

Overall rating distribution

5 star		43%
4 star		57%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		4.5
Value		4.6
Features		4.3
Design		4.2
Usability		4.7

Customer Reviews

Sort by:

Pioneer GM 3400T

I have this unit on my boat and it works great. I have had no issues with is unit and would recommend it.

By Bo on March 3, 2011

25 found this helpful

Report abuse

Big sound in a small package!

I have been using the same amps and same components since 2003. Moved them from car to car, until finally one channel on my Lanzar amp started to go out intermittently. I have been strapped for cash, so finding a good amp at a great price was key.
This amp looked great on paper, small foot print, more than adequate power, great sound quality specs. I went ahead and ordered it.
When it came in I placed it side by side with my Lanzar amp, it was smaller in all dimensions. As soon as I plugged it in I could hear the difference. I was able to go to much higher volumes with much cleaner sound through a set of Infinity reference 6.5 inch components that are 6 years old.
I am extremely pleased with this amp, and look forward to buying its big brother when I can afford it!

By Willie on November 11, 2010

25 found this helpful

Report abuse

solid amp

solid amp. good value for the money

By bill on April 25, 2011

23 found this helpful

Report abuse

Good Amp

I've had this amp for 2 years and it's a good amp. I had it hook up bridged and it push my Rockford P1 pretty good. The bass was loud and clean, only thing is at 2 ohm the amp got a little hot but, didn't cut off.

By MDub on November 11, 2010

23 found this helpful

Report abuse

Awesome for its size

I knew it was a small amp, but it is much smaller in person than I thought it would be. Not a bad thing at all though... Great power and easy to install even with a stock stereo in the dash.

By Adam on May 27, 2010

23 found this helpful

Report abuse

Very good

Bought this amp a week ago and love it! I have two 12" subs and it gives them just the right amount of bass! PERFECT

By TayBear on September 25, 2011

21 found this helpful

Report abuse

Pioneer GM-3400T

I have purchased several Pioneer amps and been very pleased with them. This particular amp has powered 6x9s and a set of 6.5 inch components in 2 different vehicles. While I am not enough an audiophile to state how great it sounds, it did make a big difference compared to running off the head unit in allowing more volume before distortion.

This amp is currently not in a car of mine at the moment, as vehicles have changed, but I am ready to put it to use should I be able to.

The only complaint is perhaps that it is a bit bulky considering how small D class amps are becoming, however this is not a functional issue and only a fitment issue in limited circumstances.

By Anonymous on June 28, 2018 Checkmark Icon

Verified purchase

16 found this helpful

Report abuse
