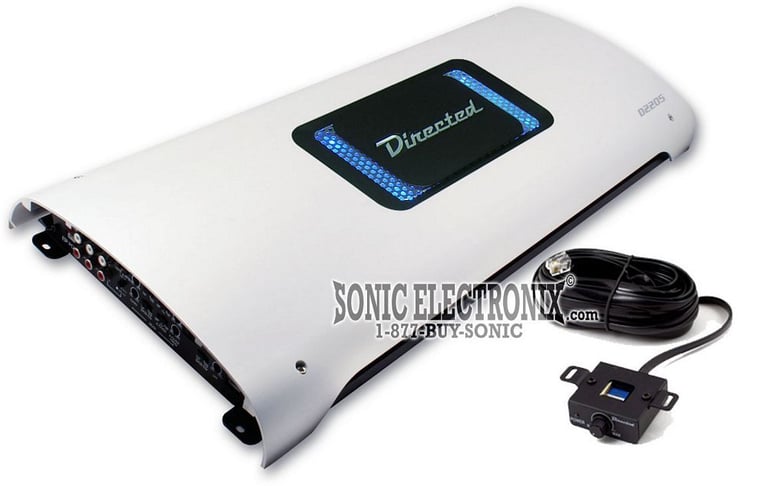

Directed Audio (DEI) D2205

5-Channel Hybrid Amplifier with ESP and Class D 5th Channel for Sub(s)

Directed
Shop all Directed
Product videos
highlight-star-icon

Directed 5-Channel Class D Car Amplifier • 80W x 4 + 280W x 1 @ 4 ohm • 125W x 4 + 400W approx. x 1 @ 2 ohm • 600W x 1 chan. @ 1 ohm • 2200W Max • MOSFET Power Supply • Switchable Line Output/Subwoofer Input

Learn more about the d2205

We apologize

This item has been discontinued


Loading...
CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

70-5520 main

Metra 70-5520 Wiring Harness

Install a new car stereo in select 2003-2016 vehicles from Ford, Mercury, Lincoln

56
FMK540 main

American International FMK540

Single DIN or Double DIN Stereo Dash Kit for select 2004-2016 vehicles from Ford, Lincoln, Mercury

14
-71.82%

$10.99

List price $39.00

MET-FD4 main

Metra MET-FD4

Install a New Car Stereo and Retain Steering Wheel Controls and Other Factory Features in select 2005-2014 vehicles from Ford, Lincoln, Mercury

1
-10.00%

$89.99

List price $99.99

SHFD03B main

Scosche SHFD03B

Speaker Harness for select 1998-2019 vehicles from Ford, Mazda, Lincoln

8
-18.50%

$8.99

List price $11.03

VSP68 main

NVX VSP68

600W Peak (200W RMS) 6x8" V-Series 2 Way Coaxial Car Speakers

46
-16.67%

$89.99

List price $107.99

Limited time!
Stadium GTO860C main

JBL Stadium GTO860C

600W Peak (200W RMS) 6x8" Stadium GTO Series 2-Way Component Speaker System

3
-25.94%

$199.95

List price $269.99

DPX305MBT main

Kenwood DPX305MBT

Double DIN Digital Media Receiver with Bluetooth and Built-in Alexa (SiriusXM Ready)

15
-20.50%

$159.00

List price $200.00

DMX129BT main

Kenwood DMX129BT

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth

2
-26.30%

$199.00

List price $270.00

FRING68 main

NVX FRING68

Universal 6x8" or 5x7" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

12
-46.68%

$15.99

List price $29.99

Product Highlights


Directed 5-Channel Class D Car Amplifier • 80W x 4 + 280W x 1 @ 4 ohm • 125W x 4 + 400W approx. x 1 @ 2 ohm • 600W x 1 chan. @ 1 ohm • 2200W Max • MOSFET Power Supply • Switchable Line Output/Subwoofer Input

Description


  • Directed 5-Channel Class D Car Amplifier

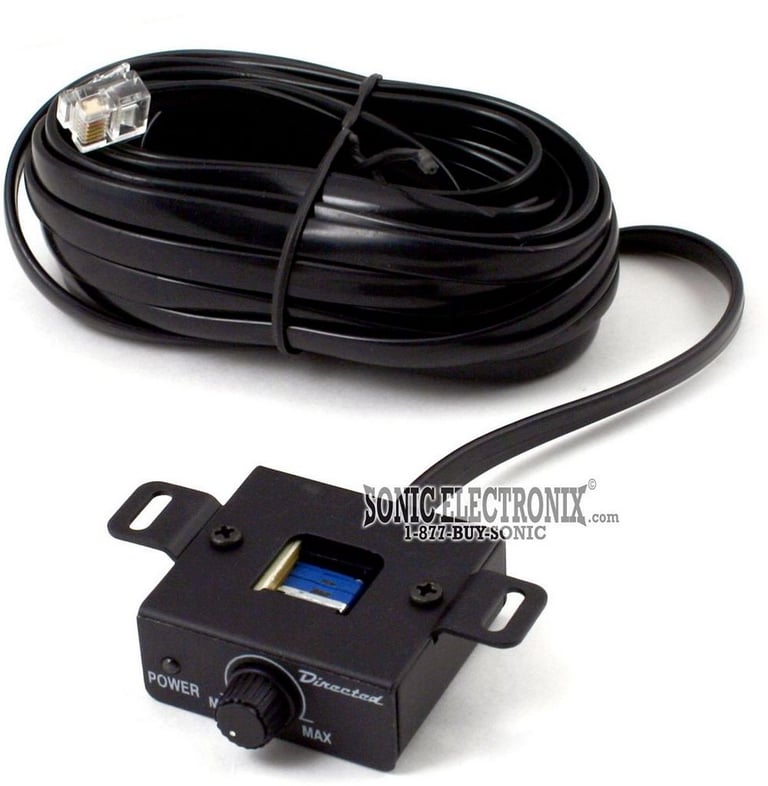

  • Bass Remote Included
  • RMS Power Rating:
    • 4 ohm: 80 watts x 4 chan. + 280 watts x 1 chan.
    • 2 ohm: 125 watts x 4 chan. + 400 watts approx. x 1 chan.
    • 1 ohm (subwoofer channel only): 600 watts x 1 chan.
  • Max power output: 2200 watts
  • High-Speed MOSFET switching power supply and complimentary bi-polar outputs
  • Thermal, DC offset, reverse polarity, short circuit, and over/under voltage protection

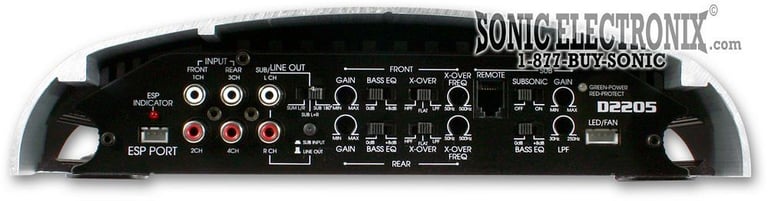

  • Programmable features controlled via ESP serial databus and Directed's Bitwriter tool
  • Variable high-pass filter (20-250 Hz)
  • Variable low-pass filter (50-500 Hz)
  • Subsonic filter for subwoofer channel
  • Switchable Line Output/Subwoofer Input
  • Switchable 8 dB Bass EQ
  • Variable input sensitivity optimizes match with different signal sources
  • Chrome plated wire and RCA jacks ensure maximum signal transfer
  • Rugged extruded two piece heatsink and cover
  • Unity gain pass through RCA jacks
  • Adjustable input sensitivity: 500mV - 8V
  • Output for optional cooling fan / LED lighting
  • Dimensions: 10-1/4"D x 25-3/4"W x 2-3/8"H
  • 1-year SonicElectronix.com warranty

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(46)

$349.99

List price $419.99

VAD22008v2 small

NVX VAD22008 v2 (VAD22008v2)

• 150 watts x 6 channel + 250 watts x 2 channels @ 4 ohm
• 225 watts x 6 channel + 400 watts x 2 channels @ 2 ohm
• Bridged: 450 watts x 3 channel + 850 watts x 1 channel @ 4 ohm
• Total RMS Power: 2200 watts
• Class D 2 ohm Stable 8-Channel Amplifier

(2)

$399.99

List price $539.99

NDA11005 small

NVX NDA11005

• 100 watts x 4 channel + 315 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(9)

$259.99

List price $323.99

MVPA6 small

NVX MVPA6

• 100 watts x 6 channel @ 4 ohm
• 150 watts x 6 channel @ 2 ohm
• Bridged: 300 watts x 3 channel @ 4 ohm
• Total RMS Power: 900 watts
• Class D 2 ohm Stable 6-Channel Amplifier

(7)

$319.99

List price $383.99

HDP-D90 small

Alpine Status HDP-D90

• 50 watts x 8 channel + 80 watts x 4 channel @ 4 ohm
• Total RMS Power: 720 watts
• Class D 4 ohm Stable 12-Channel Digital Sound Processor Amplifier
• High-resolution (Hi-Res) audio playback
• Selectable pre-configured sound system configurations
• Embedded RTA signals for customized sound tuning
• Bluetooth audio streaming with included external module

(1)

$1999.95

List price $3480.00

LC-5.1300 small

AudioControl LC-5.1300

• 100 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 200 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1300 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(2)

$660.00

List price $1369.00

EPICFIVE small

AudioControl EPICFIVE

• 75 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• 700 watts x 1 channel @ 1 ohm (subwoofer output)
• Bridged: 400 watts x 2 channel @ 4 ohm
• Total RMS Power: 1100 watts
• Class D 1 ohm Stable 5-Channel Amplifier

(2)

$259.00

List price $259.00

MICRO85U small

Diamond Audio MICRO85U

• + @ 4 ohm
• 85 watts x 1 channel + 375 watts x 1 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm + 375 watts x 1 channel @ 2 ohm
• Total RMS Power: 1035 watts
• Class D 2 ohm Stable 5-Channel-Channel Amplifier

$659.99

List price $719.99

46CXA6605t small

Kicker CXA660.5T (46CXA6605T)

• 65 watts x 4 channel + 150 watts x 1 channel @ 4 ohm
• 90 watts x 4 channel + 300 watts x 1 channel @ 2 ohm
• Bridged: 180 watts x 2 channel @ 4 ohm + 300 watts x 1 channel @ 2 ohm
• Total RMS Power: 660 watts
• Class A/B 2 ohm Stable 5-Channel Amplifier

$449.99

List price $479.99

XQA16005 small

NVX XQA16005

• 125 watts x 4 channel + 300W x1 @ 4 ohm
• 200 watts x 4 channel + 500W x 1 @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm + 800W @ 1 ohm
• Total RMS Power: 1600 watts
• Class D 1 ohm Stable 5-Channel Amplifier

(2)

$449.99

List price $719.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
80 watts x 4 + 280 watts x 1
RMS Power @ 2 ohms
125 watts x 4 + 400 watts approx. .x 1
RMS Power @ 1 ohm
5th Channel: 600 watts x 1 channel
Bridged RMS Power
250 watts x 2 + 400 watts approx. x 1
Amplifier Specifications
Amplifier Class
Channels 1-4: A/B, Channel 5: D
Number of Channels
5-Channel
Total Peak Power Output
2200 watts
Minimum Impedance Unbridged
2 ohms (Channels 1-4); 1 ohm (Subwoofer channel)
Minimum Impedance Bridged
4 ohms (Channels 1-4); 1 ohm (Subwoofer channel)
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
20 - 250 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Subsonic Filter
On/Off
Signal-to-Noise Ratio
98 dB
Bass Boost
0 - 8 dB
Remote bass/level controller
Yes

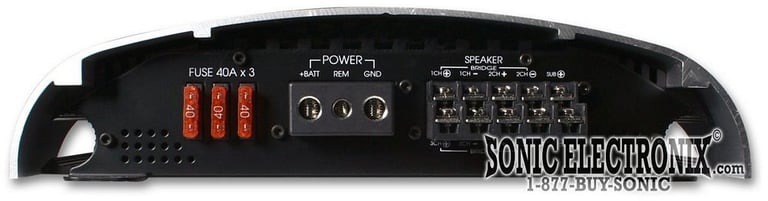

Fuse Rating
40A x 3
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

D2205

Weight:

26.00lbs

Internal SKU:

d2205

Internal Product ID:

4335

Product and How-to Videos


Customer Ratings & Reviews


Directed Audio (DEI) D2205 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.4
Value
5
Features
4
Design
4.7
Usability
4.7

Customer Reviews

Sort by:

Loading...

Excellent!

At first I was having problems with this shutting off suddenly, but it was because my alternator couldn't supply enough power to this beast! So make sure you throw in a capacitor if you're going to power this and you'll be set!

By Chris on December 13, 2007

7 found this helpful


DD2205 Review

Great amp. I hid it behind the seats in my crewcab..barely fit! It sounds great and has plenty of power. This is my second DEI amp; my first lasted 5 years and was installed in 3 vehicles, so they can stand up to long term abuse. Great value.

By xscott71x on March 15, 2011

8 found this helpful


Very happy

I like this thing, its huge i had to mount it to the back of both of my seats. the built in crossovers are awesome. and I only have the sub on half way, and it rattles the pictures on the walls of my house, from the driveway. Very happy

By Gerald on January 19, 2009

6 found this helpful




No picture

Alpine R-A90S (Open Box, Good)

900W RMS Class D R Series 6 Channel Car Amplifier

$419.97

List price $840.00

AXTC-1 small

Axxess AXTC-1

Universal Steering Wheel Control and Data Interface

$129.99

List price $149.99

AX-SWC-PARROT,ASWC-1 small

Axxess ASWC-1_PARROT

Universal Steering Wheel Control Interface for Parrot Asteroid Receivers

(4)

$79.98

List price $148.98

HITZ WP-380 small

Creative HITZ WP-380 (WP380)

Lightweight On-ear Bluetooth Headset with NFC

$59.99

List price $99.99

No picture

Alpine PDX-M12 (Open Box Complete Like New)

1200W RMS, PDX Series Monoblock Power Density Class D Digital Car Amplifier(Open Box Complete Like New)

$469.95

List price $900.00

THX I100-8 small

Monster Cable THX-Certified RCA Audio Interconnect Cable (THX I100-8)

8 ft. (2.43 Meters) of Standard THX-Certified RCA Audio Interconnect Cable with 24k Gold Contacts

$16.99

List price $19.99

NE101S_10W1V34 small

NVX NE101S w/ JL Audio 10W1v3-4

Single 10" Sealed 3/4" MDF Black Carpeted Subwoofer Enclosure – 0.65 Cu. Ft. with Polyfil and NVX Logo w/ 300W RMS 10" W1v3 Series Single 4-ohm Car Subwoofer

(8)

$305.98

List price $333.98

MACHETE MFA-5.1000 small

Deaf Bonce Machete MFA-5.1000

480W RMS Class D Machete Series 5-Channel Car Amplifier

$289.90

List price $289.90

BRT0516_10 small

Belva BRT0516 20-Pack (10 Positive, 10 Negative)

1/0 Gauge Ring Terminals, 5/16" Opening with Nickel Plated Brass - 20 Pieces (10 Red & 10 Black)

(5)

$39.90

List price $99.90

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1971 Ford Thunderbird

2008 Ford Explorer

1975 Mercury Comet

1995 GMC C1500

2003 Isuzu Ascender

2003 Audi A4

2007 Volvo C70

2000 Dodge Caravan

2007 Dodge Nitro

1995 Mitsubishi Eclipse

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
