MTX TD75.4

400W 4-Channel TD Series Class A/B Car Amplifier

MTX
Shop all MTX
Product videos
highlight-star-icon

• 4 ohm: 75 watts x 4-Chan.
• 2 ohm: 100 watts x 4-Chan.
• Bridged, 4 Ohm: 200 x 2 chan.
• 4/3/2 channel operation

Learn more about the td754

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Product Highlights


• 4 ohm: 75 watts x 4-Chan.
• 2 ohm: 100 watts x 4-Chan.
• Bridged, 4 Ohm: 200 x 2 chan.
• 4/3/2 channel operation

Description


MTX brand icon

Authorized dealer

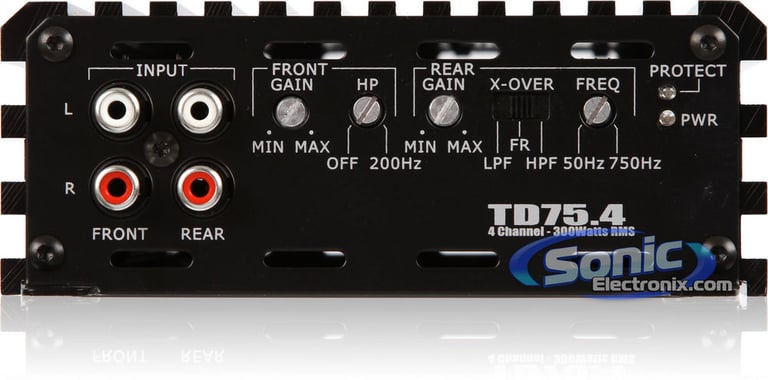

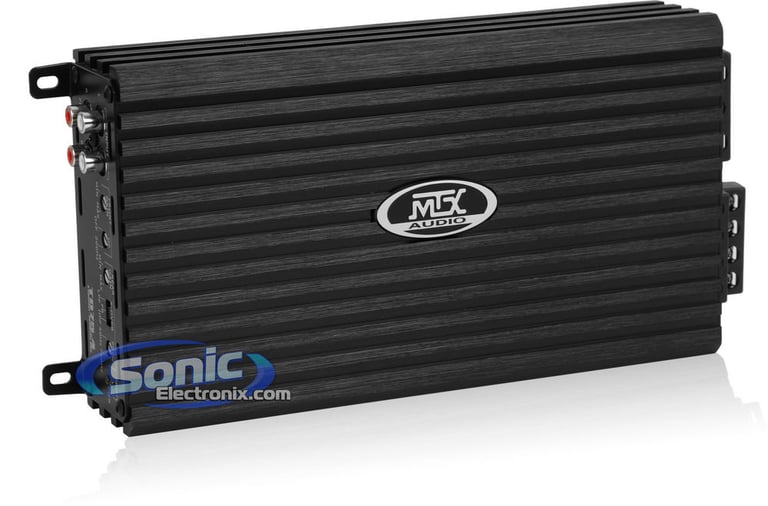

General Features:

  • 4-Channel TD Series Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 75 watts x 4 chan.
    • 2 ohm: 100 watts x 4 chan.
    • Bridged, 4 Ohm: 200 x 2 chan.
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
  • Soft start turn-on
  • 4/3/2 channel operation
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity:
    • Low level: 200mV
  • Variable low-pass filter (50-750 Hz, 12 dB/octave)
  • Variable high-pass filter (10-200 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Subsonic filter (10-50 Hz 12 dB at 15 Hz)
  • Frequency response: 10-220 Hz

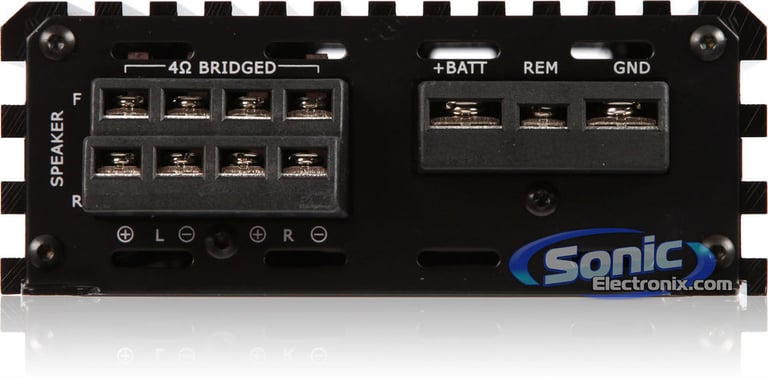

  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 5-1/2"W x 10"L x 2-1/8"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Extend your MTX warranty to 2 Years when you install your new MTX amplifier with a compatible STREETWIRES amplifier kit! For a limited time, you can register your MTX amplifier and power kit to qualify for an additional 1 year of coverage. This offer is only available through authorized MTX Dealer in the United States of America or Canada and will only last for a limited time. With this amplifier, the following power kits will qualify for the extended warranty program: StreetWires ZN3K-04,StreetWires ZN3KI-04


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
100 watts x 4 channel
Bridged RMS Power
200 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total RMS Power Output
400 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
10 - 200 Hz
Low-Pass Crossover Frequency
50 - 750 Hz
Subsonic Filter
10 - 50 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

MTX

Model Number:

TD75.4

Weight:

5.00lbs

Internal SKU:

td754

Internal Product ID:

43788

Product and How-to Videos


  • MTX Audio TD Amplifier | Compact Chassis Car Amp
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


MTX TD75.4 thumbnail image

5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%



Durability
4.5
Value
4
Features
4.5
Design
3.5
Usability
5

Customer Reviews

Sort by:

Loading...

Wonderful Amp, Design OK

The MTX TD75.4 is a worthwhile amp for starters who aren't looking to spend the big bucks to get Class A/B sound on their first build. That said, there are definitely better valued amps on the market from Kenwood and even the great Rockford Fosgate, for similar pricing, but in class D and other qualities.
I paired this up with a Pioneer DEH-X5500HD Deck unit and Alpine Type-R speakers in both the front (SPR-60) and rear (SPR-69) locations, rated at 100w RMS, 300w MAX. The MTX can drive them to near full nominal power, producing crisp highs and full-range mids, and because the frequency of the rear 6x9's goes down to 60Hz, it's possible to get decent bass response by adjusting the cutoff on the amp.

The only drawbacks I see are in the design of the connectors going into the amp; they could have been more compacted so as to improve their durability should you be mounting the amp in a trunk where you may carry other items. What would have helped is having ALL the inputs and speaker outputs on the same end, even if it meant cramming them into a tiny space. That or at least extending a small shroud over the speaker wire end, as currently they jut out about 2 inches in extra length past the amp, posing a snagging hazard if you carry other items in the trunk.
All in all, I still enjoy the MTX TD75.4 as my first amp, and think I'll keep it until I decide to go 5 channel's for a sub. Until then, it drives my Type-R's to full clarity, giving me bass response when I need it and quality when I want it.

By KiRaShi on July 17, 2013

5 found this helpful


Highly satisfied

I bought this item for my husband. He is very happy that I purchased this item. He is very happy with it.

By Val on October 5, 2013
