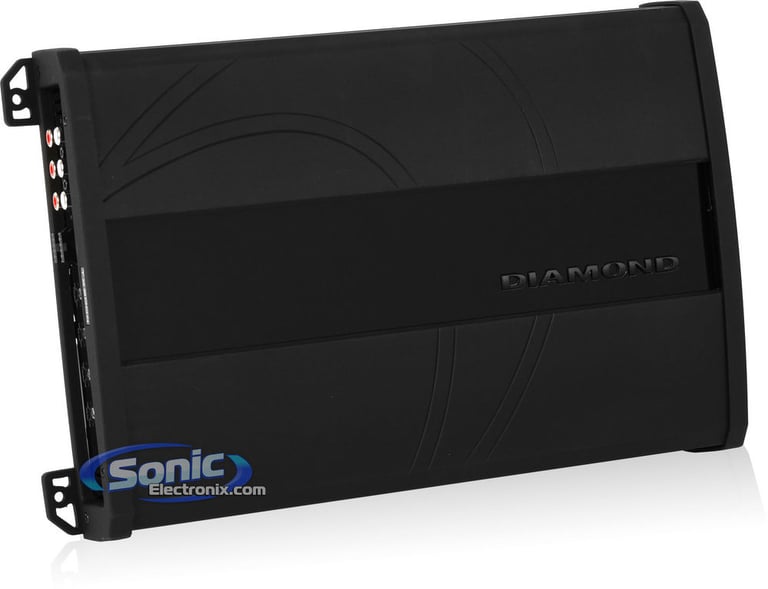

Diamond Audio TX300.4

300W RMS 4-Channel Class AB TX Series Amplifier (TX3004)

Diamond Audio
Shop all Diamond Audio
Product videos
highlight-star-icon

TX Series 4-Channel Class AB Amplifier • 50W x 4 Chan. @ 4 ohm • 75W x 4 Chan. @ 2 ohm • 150W x 2 Chan. @ 4 ohm • 3-Way System Protection • 4/3/2 Channel Operation • 4 Gauge Power and Ground Inputs • High Efficiency Thermal Convection Heat Sink

Learn more about the tx3004

We apologize

This item has been discontinued


Loading...
Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

Product Highlights


TX Series 4-Channel Class AB Amplifier • 50W x 4 Chan. @ 4 ohm • 75W x 4 Chan. @ 2 ohm • 150W x 2 Chan. @ 4 ohm • 3-Way System Protection • 4/3/2 Channel Operation • 4 Gauge Power and Ground Inputs • High Efficiency Thermal Convection Heat Sink

Description


General Features:

  • TX Series 4-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 50 watts x 4 chan.
    • 2 ohm: 75 watts x 4 chan.
    • Bridged, 4 ohm: 150 watts x 2 chan.
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
  • 4/3/2 channel operation

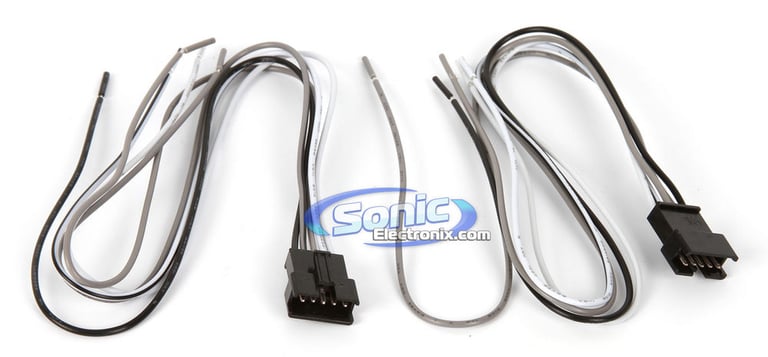

  • Speaker level inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • High efficiency thermal convection heat sink

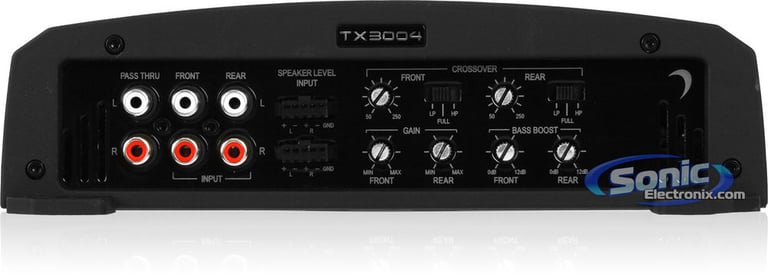

  • Nickel-plated RCA level inputs

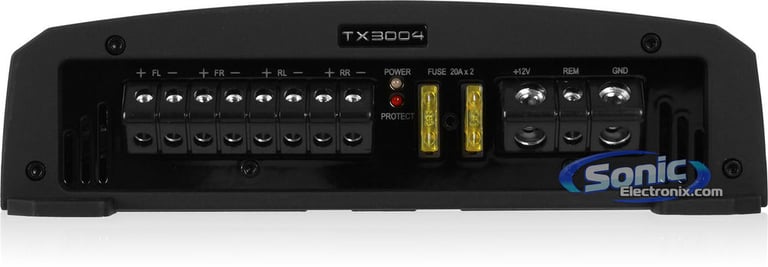

  • Nickel-plated, low resistance power and speaker connector blocks
  • Input sensitivity:
    • Low level: 150mV-5V
  • Variable high-pass filter (50-250 Hz, 12 dB/octave)
  • Variable low-pass filter (50-250 Hz, 12 dB/octave)
  • Frequency response: 20-20,000 Hz
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 13-7/16"W x 8-3/4"D x 2-5/16"H
  • 1-year Manufacturer's Warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

KTA-450 small

Alpine KTA-450 Power Pack

• 50 watts x 4 channel @ 4 ohm
• 45 watts x 4 channel @ 2 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(20)

$299.95

List price $360.00

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 4 channel
RMS Power @ 2 ohms
75 watts x 4 channel
Bridged RMS Power
150 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total RMS Power Output
300 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.02%
Speaker Level Inputs
Yes - with included adapter
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
90 dB
Channel Separation
90 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No

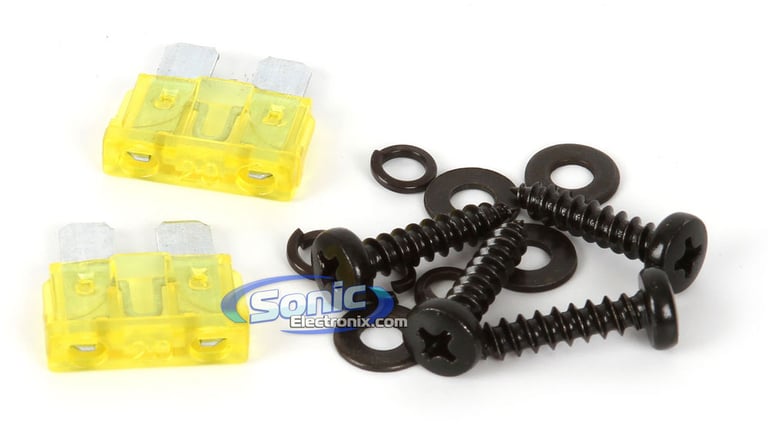

Fuse Rating
20A x 2
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TX300.4

Weight:

9.50lbs

Internal SKU:

tx3004

Internal Product ID:

65830
