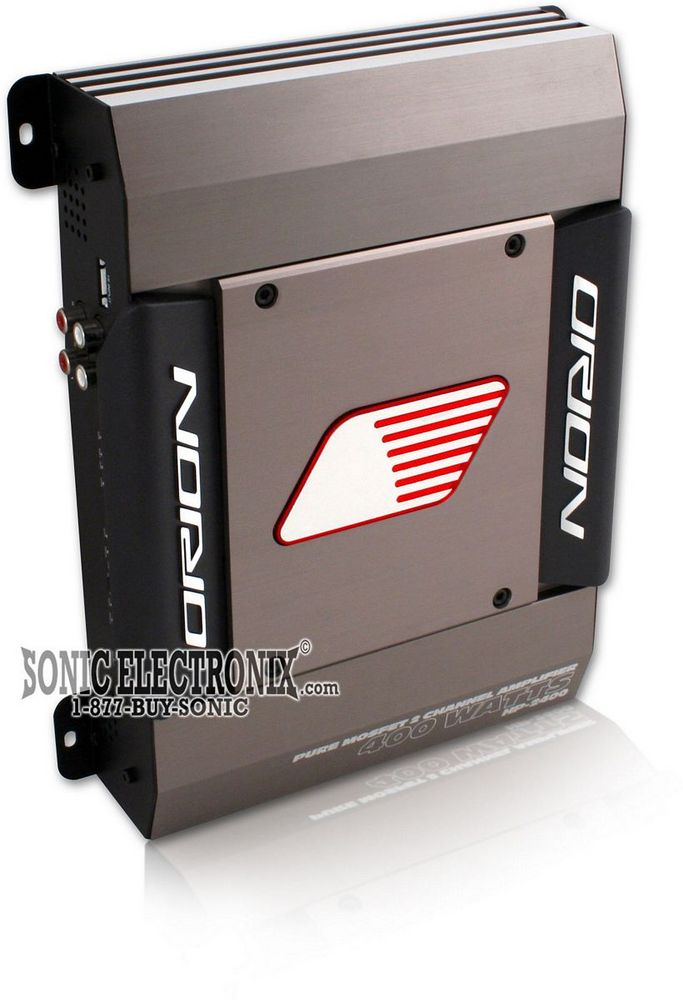

Orion HP-2400 (HP2400)

400W Max, 2-Channel Car Amplifier

Orion
Shop all Orion
Product videos
highlight-star-icon

Class A/B 400 watts, 2-Channel Amplifier • 100 watts x 2 chan. @ 2 Ohm • 200 watts x 1 chan. Bridged • MOSFET Power Supply • Crossover: Low Pass, All Pass, or High Pass • CEA-2006 compliant

Learn more about the hp2400

We apologize

This item has been discontinued


Loading...
RSFD3 main

Kleinn RSFD3 Remote Start for Select 2014-2025 Ford Vehicles

Easy DIY Remote Starter Kit for Key-to-Start and Push-to-Start Vehiles, Takes Less Than 1 Hour to Install

-17.39%

$189.99

List price $229.99

72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

43
-20.01%

$11.99

List price $14.99

AXLOC-FD2 main

Axxess AXLOC-FD2

2-Channel 110W Line Output Converter with Gain Controller for select 2011-2025 vehicles from Ford with Non-Amplified Systems

3
-10.48%

$93.99

List price $104.99

82-5604 main

Metra 82-5604

Speaker Plates for select 2014-2024 Transit Connect and Ranger and Maverick

-40.01%

$17.99

List price $29.99

95-5600 main

Metra 95-5600 Dash Kit

Install a new Double-DIN car stereo in select 1995-2025 vehicles from Ford, Mercury, Mazda Multi-Kit

2
-12.00%

$21.99

List price $24.99

AXDI-FD2 main

Axxess AXDI-FD2 Wiring Interface

Install a New Car Stereo and Retain Factory Features in select 2011-2023 vehicles from Ford

-10.00%

$116.99

List price $129.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5

Product Highlights


Class A/B 400 watts, 2-Channel Amplifier • 100 watts x 2 chan. @ 2 Ohm • 200 watts x 1 chan. Bridged • MOSFET Power Supply • Crossover: Low Pass, All Pass, or High Pass • CEA-2006 compliant

Description


Orion brand icon

Authorized dealer

  • Class A/B 400 watts, 2-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 75 watts x 2 chan.
    • 2 ohm: 100 watts x 2 chan.
  • Connection Port for Bitwriter or ESP2 Security System
  • Crossover: Low Pass, All Pass, or High Pass
  • All new pure MOSFET output stage design
  • Massive loosely-regulated MOSFET power supply
  • CEA-2006 Compliant
  • Accepts 1v to 10v High Level Input from Head Unit
  • 12dB/octave High- and Low-pass Filter
  • Intelli Q Equalization Circuit
  • Accepts RCA input from a Head Unit, Preamp, or Equalizer
  • Various Protections: Thermal, DC Offset, Reverse Polarity, Short Circuit, Under/Over Voltage
  • Dimensions: 7.5"L x 10.25"W x 2.4"H
  • 1-year SonicElectronix.com warranty

Loading...
SB-F-RNGSCG4/10TW1 main

JL Audio Stealthbox® SB-F-RNGSCG4/10TW1

Custom-Fit Loaded 10" Subwoofer Enclosure for select 2019-2025 Ranger

$1,149.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 2 channel
RMS Power @ 2 ohms
100 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
200 watts x 1 channel
Amplifier Specifications
Number of Channels
2-Channel
Total RMS Power Output
200 watts
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
1.0%
Speaker Level Inputs
Yes
Preamp Outputs
No
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
75 dB
Bass Boost
0 - 16 dB
Fuse Rating
30A
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

HP-2400

Weight:

14.00lbs

Internal SKU:

hp2400

Internal Product ID:

6724

Product and How-to Videos


Customer Ratings & Reviews


Orion HP-2400 (HP2400) thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

sweet

this amp powers my hp 6" components. SWEET!!!!!!!!!! I love orion products

By geo on April 9, 2008
