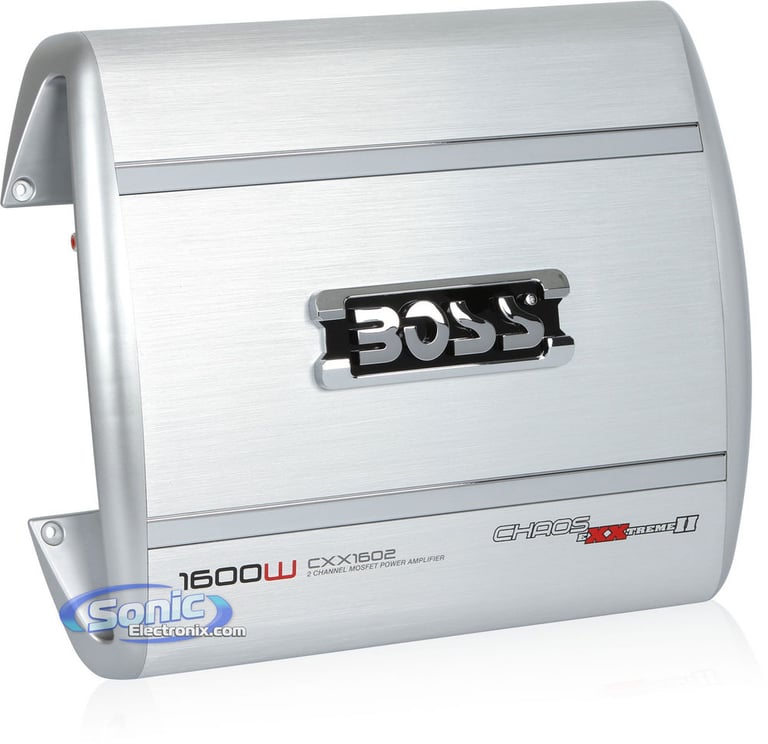

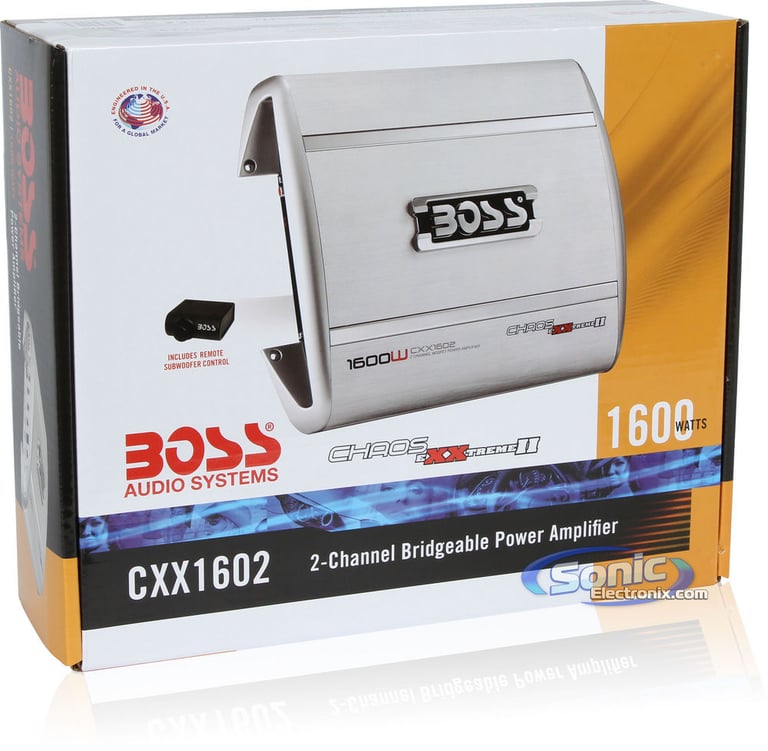

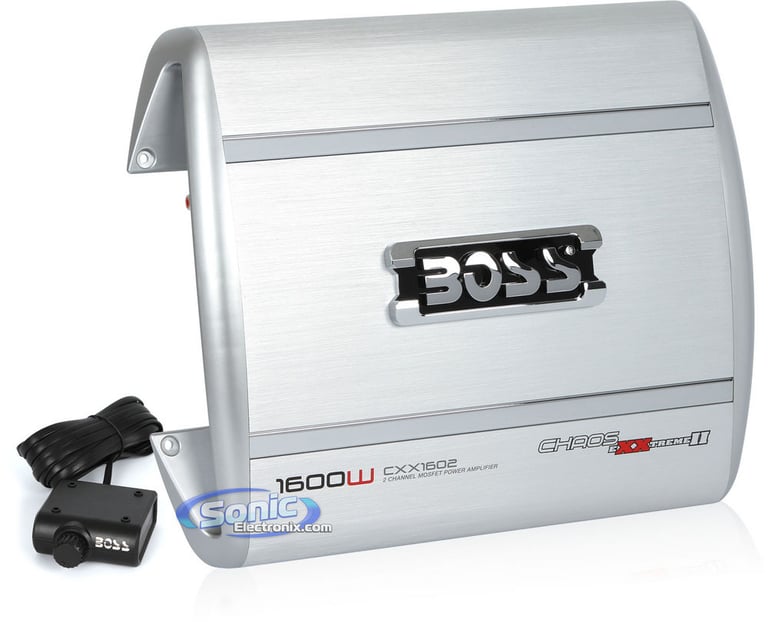

Boss CXX1602

800W RMS Class AB 2-Channel Chaos Exxtreme Series Amplifier

Boss
Shop all Boss
Product videos
highlight-star-icon

• 240W x 2 Chan. @ 4 ohm
• 800W x 1 Chan. @ 4 ohm
• 3-Way System Protection
• 2/1 Channel Operation
• 4 Gauge Power and Ground Inputs
• 2 Ohm Stable Stereo Operation with Power Output Increase

Learn more about the cxx1602

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-4568 main

Metra 72-4568

Install New Speakers in select 1990-2021 vehicles from Chevrolet, GMC, Buick

121
-33.36%

$9.99

List price $14.99

MDA1B main

Scosche MDA1B Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

366
-33.07%

$5.99

List price $8.95

70-1858 main

Metra 70-1858 Wiring Harness

Install a new car stereo in select 1986-2006 vehicles from Chevrolet, GMC, Pontiac

64
GMK421 main

American International GMK421

Single DIN or Double DIN Stereo Dash Kit for select 1992-2012 vehicles from Chevrolet, GMC, Buick

15
-66.69%

$12.99

List price $39.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
VSP65KIT main

NVX VSP65KIT

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

84
-16.67%

$119.99

List price $143.99

KDC-BT382U main

Kenwood KDC-BT382U

Single DIN CD Receiver with Bluetooth and Built-in Alexa (SiriusXM Ready)

14
-10.50%

$179.00

List price $200.00

Limited time!
46CSC464 main

Kicker CSC46 (46CSC464)

300W Peak (100W RMS) 4x6” CS Series 2 Way Coaxial 4-ohm Speakers

88
-29.45%

$59.96

List price $84.99

43DSC460 main

Kicker DSC460 (43DSC4604)

240W Peak (60W RMS) 4x6" DS Series 2-way 4-ohm Coaxial Car Speakers (DSC4604)

49
-13.34%

$64.99

List price $74.99

Product Highlights


• 240W x 2 Chan. @ 4 ohm
• 800W x 1 Chan. @ 4 ohm
• 3-Way System Protection
• 2/1 Channel Operation
• 4 Gauge Power and Ground Inputs
• 2 Ohm Stable Stereo Operation with Power Output Increase

Description


Boss brand icon

Authorized dealer

General Features:

  • Chaos Extreme Series 2-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 240 watts x 2 chan.
    • Bridged, 4 ohm: 800 watts x 1 chan.
  • Max power output: 1600 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply

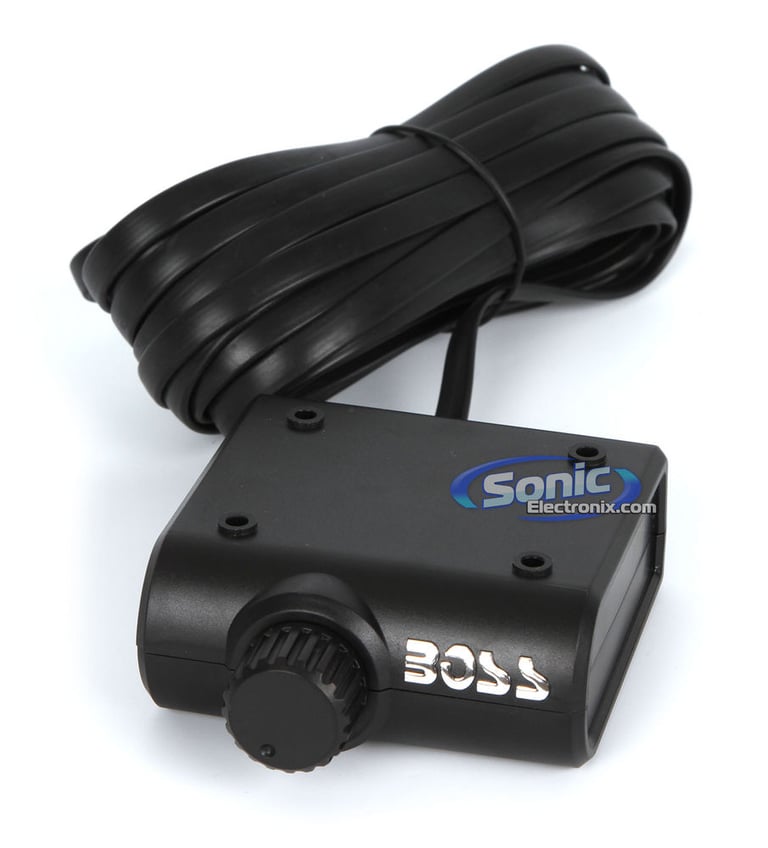

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB bass boost at 50 Hz)
  • Soft turn-on circuit
  • 2 or Mono channel operation
  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink

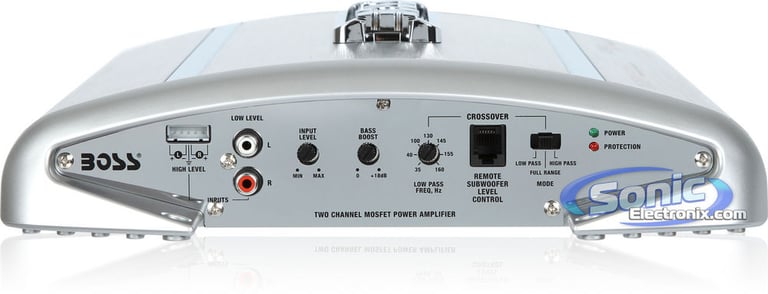

  • Fixed high-pass filter (80 Hz)
  • Variable low-pass filter (35-160 Hz)

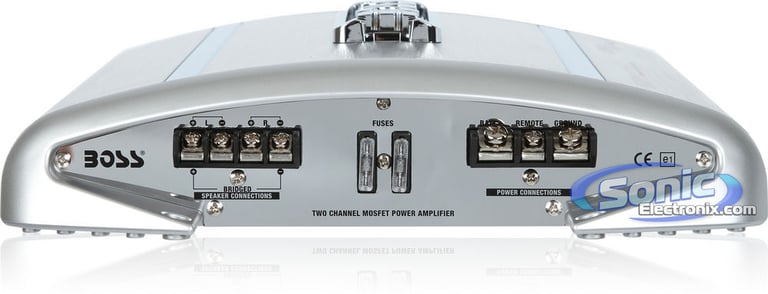

  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 11"W x 13-3/4"L x 2-7/8"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Boss CXX1602 thumbnail
(newest, current model)
Boss CX750 thumbnail
(previous model, replaced by Boss CXX1602)
Boss CH900 thumbnail
(previous model, replaced by Boss CX750)

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-500.2 PRO small

Deaf Bonce Apocalypse ATOM-500.2 PRO

• 231 watts x 2 channel @ 4 ohm
• 390 watts x 2 channel @ 2 ohm
• 500 watts x 2 channel @ 1 ohm
• Bridged: 780 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 500 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$189.90

List price $189.90

R2-200X2 small

Rockford Fosgate Prime R2 R2-200X2

• 50 watts x 2 channel @ 4 ohm
• 100 watts x 2 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(2)

$239.99

List price $239.99

VADM2 small

NVX VADM2 v2 (VADM2v2)

• 200 watts x 2 channel @ 4 ohm
• 300 watts x 2 channel @ 2 ohm
• Bridged: 600 watts x 1 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(17)

$199.99

List price $239.99

ION700.2D small

DS18 ION700.2D

• 240 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

$299.95

List price $359.99

H400.2D small

Cerwin-Vega H400.2D

• 80 watts x 2 channel @ 4 ohm
• 125 watts x 2 channel @ 2 ohm
• Bridged: 290 watts x 1 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable 2-Channel Amplifier

$239.99

List price $287.99

MFA 2.520 small

Deaf Bonce Machete MFA 2.520

• 520 watts x 2 channel @ 4 ohm
• 750 watts x 2 channel @ 2 ohm
• Bridged: 1500 watts x 1 channel @ 4 ohm
• Total RMS Power: 1500 watts
• Class D 2 ohm Stable 2-Channel-Channel Amplifier

(2)

$239.90

List price $239.90

NBA201 small

NVX NBA201

• 200 watts x 2 channel @ 4 ohm
• 350 watts x 2 channel @ 2 ohm
• Bridged: 700 watts x 1 channel @ 4 ohm
• Total RMS Power: 700 watts
• Class A/B 2 ohm Stable 2-Channel Amplifier

(11)

$99.99

List price $249.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
240 watts x 2 channel
Bridged RMS Power
800 watts x 1 channel
Amplifier Specifications
Series
Chaos EXXtreme Series
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
1600 watts
Total RMS Power Output
800 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.01%
Speaker Level Inputs
Yes
Preamp Outputs
No
High-Pass Crossover Frequency
80 Hz Fixed
Low-Pass Crossover Frequency
35 - 160 Hz
Signal-to-Noise Ratio
103 dB
Channel Separation
90 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
25A x 2
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CXX1602

Weight:

9.00lbs

Internal SKU:

cxx1602

Internal Product ID:

68493

Product and How-to Videos


  • Boss Chaos EXXtreme Amplifiers
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


Boss CXX1602 thumbnail image

5 star
50%
4 star
25%
3 star
0%
2 star
25%
1 star
0%



Durability
3.2
Value
3.6
Features
3.2
Design
4.6
Usability
3.8

Customer Reviews

Sort by:

Loading...

Chaos exxtreme amp CXX1602

The amp was well worth the money I have it hooked up to a polk DXI 12 bridged and let me say this thing is rumbling the block . Can't wait to get another 12 so I can use both channels. I would definitely recommend this to anyone looking for great bass on a budget.

By Chaos Exxtreme amp on April 20, 2014

10 found this helpful


Pleasent

The following review is for a previous version (CH900).

This sub used to power two 6x9 speakers and two 10" Boss subs. The amp used to pound my car and you could hear the entire range of vocals and instrumentals. Then it fried on me. I wasn't pushing near what it said it was rated for either. This is a good temporary buy. The Boss subs are beautiful though.

By Dustin on December 8, 2007

5 found this helpful


horrible

The following review is for a previous version (CX750).

First, the amp blew on me, so I sent it in to Boss. They sent me back an amp with a blown speaker terminal. Nobody informed me that the amp they sent me was broken as well, and when I hooked it up, it blew my fuse. So, I replace my fuse and bridge the amp, and turn it wayyyy down. Then, I started tuning it, and it goes into protect until I unhook it and rehook it. Long story short: this amp did its job for the small time I had it and I'm so glad its gone now.

By alex on July 20, 2012

4 found this helpful


Good Amp

The following review is for a previous version (CX750).

this is a good amp. I have had it powering several different applications.
first was a boss sub. and it pounded pretty good. second was 2 12" kicker comps which also pounded pretty good. third was 2 12" Rockford Fosgate T1's, even tho it was underpowered for the t1's. it still slammed pretty good. and currently i have it powering a 10" 4 ohm kicker cvr in a sealed box, it sounds good. for the cons, if ur not careful you can break the mounting holes because the end caps on this amp are plastic. but no biggie I love this amp.

By DukeCityCivic on May 23, 2011

3 found this helpful


Awesome Sound!!

The following review is for a previous version (CX750).

This was a great choice for me and i recommend this product to anyone looking for a hi quality amp.

By L-Jay on November 2, 2011

2 found this helpful




M2LV312D2 small

DC Audio Level 3 12 m2.1 D2

1800W Peak 12" Level 3 Series m2.1 Version Dual 2-Ohm Car Subwoofer - M2LV312D2

(8)

$354.99

List price $483.99

BVNV9384RC small

Boss BVNV9384RC with Backup Camera

6.2" Double-DIN Touchscreen DVD Multimedia Receiver with Bluetooth and Built-in Navigation

(2)

$249.99

List price $399.99

MDAB small

Scosche MDAB Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

(21)

$6.99

List price $8.95

M2LV312D1 small

DC Audio Level 3 12 m2.1 D1

1800W Peak 12" Level 3 Series m2.1 Version Dual 1-Ohm Car Subwoofer - M2LV312D1

$296.00

List price $350.00

CBHVA small

Scosche voCALL CBHVA

Handsfree Bluetooth Speakerphone with Voice Announce Caller ID

$69.99

List price $79.99

CP8CK small

Rockford Fosgate CP8CK

8 Gauge Amp Install Kit

$34.99

List price $49.99

DOT0103 PINK small

Kogeto Dot Pink (LB4201)

360 Degree Panoramic Camera Lens for iPhone 4 & 4S

$17.99

List price $99.00

VX7022 small

Jensen VX7022 (Remanufactured)

Double DIN Multimedia Navigation Car Stereo w/ 6.2" TFT Touchscreen, SirusXM Radio Ready and Pandora Control

(11)

$229.95

List price $449.99

DQ-61 BLACK small

AudioControl DQ-61 (Espresso Black)

6 Channel Line Out Converter with Signal Delay, AccuBass, and EQ, with 5-year warranty*!

(2)

$299.99

List price $479.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2002 GMC Sonoma

2000 Jaguar S-Type

2002 Lexus IS300

2017 Ford C-Max

2000 Saturn SL

2011 Mazda CX-7

2006 Ford E Series

1998 GMC Jimmy

1996 Mazda B2300

1992 GMC Sonoma

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
