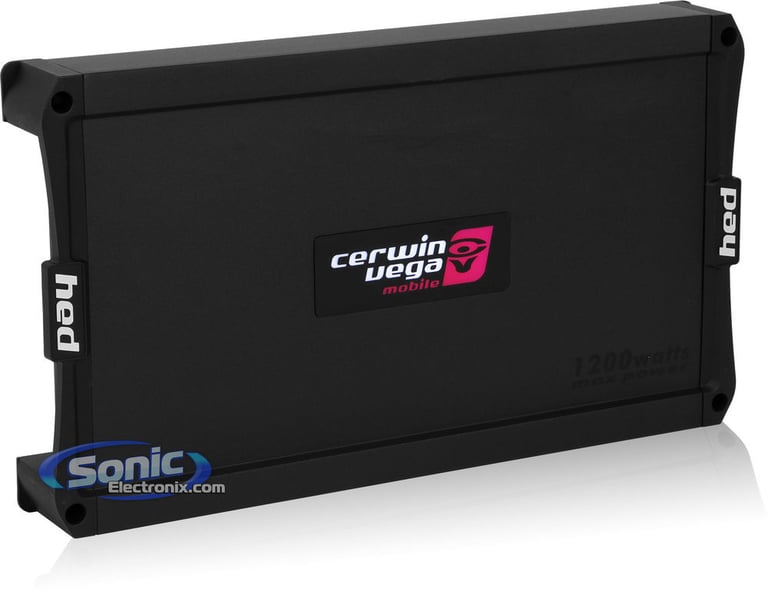

Cerwin-Vega HED31200.4

1200W 4-Channel HED3 Series Class AB Car Power Amplifier

Cerwin-Vega
Shop all Cerwin-Vega
Product videos
highlight-star-icon

• 80W x 4-Chan. @ 4 ohm
• 200W x 4-Chan. @ 2 ohm
• 400W x 2 Chan. @ 4 ohm
• 3-Way System Protection
• 4/3/2/1 Channel Operation
• 4 Gauge Power and Ground Inputs
• Illuminated Cerwin-Vega Badge

Learn more about the hed312004

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

h412004 thumbnail

Cerwin-Vega H41200.4

OUR PRICE: $171.99

View item

Loading...
40-GM10 main

Metra 40-GM10

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

45
MDA1B main

Scosche MDA1B Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

366
-33.07%

$5.99

List price $8.95

70-2003 main

Metra 70-2003 Wiring Harness

Install a new car stereo in select 1998-2008 vehicles from Chevrolet, GMC, Kia

33
GMK421 main

American International GMK421

Single DIN or Double DIN Stereo Dash Kit for select 1992-2012 vehicles from Chevrolet, GMC, Buick

15
-66.69%

$12.99

List price $39.00

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

DPX305MBT main

Kenwood DPX305MBT

Double DIN Digital Media Receiver with Bluetooth and Built-in Alexa (SiriusXM Ready)

15
-20.50%

$159.00

List price $200.00

550B main

Boss Elite 550B

Single DIN CD Receiver with Bluetooth (Black)

2
GX628 main

JBL GX628 (GX628AM)

360W Peak (120W RMS) 6.5" GX Series 2 Way Coaxial 2.3-ohm Speakers

1
-12.50%

$69.99

List price $79.99

Product Highlights


• 80W x 4-Chan. @ 4 ohm
• 200W x 4-Chan. @ 2 ohm
• 400W x 2 Chan. @ 4 ohm
• 3-Way System Protection
• 4/3/2/1 Channel Operation
• 4 Gauge Power and Ground Inputs
• Illuminated Cerwin-Vega Badge

Description


Cerwin-Vega brand icon

Authorized dealer

General Features:

  • HED3 Series 4-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 80 watts x 4 chan.
    • 2 ohm: 200 watts x 4 chan.
    • Bridged, 4 ohm: 400 watts x 2 chan.
  • Max power output: 600 watts x 2 chan.
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Variable Vega Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • 4/3/2 or Mono channel operation
  • Speaker-level (high-level) inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity:
    • Level: 200mV-5V
  • Variable high-pass filter (50-400 Hz, Butterworth 12 dB/octave)
  • Variable low-pass filter (50-400 Hz, Butterworth 12 dB/octave)
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 9-1/8"W x 16"D x 2-1/8"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Cerwin-Vega H41200.4 thumbnail
(newest, current model)
Cerwin-Vega HED31200.4 thumbnail
(previous model, replaced by Cerwin-Vega H41200.4)

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
80 watts x 4 channel
RMS Power @ 2 ohms
200 watts x 4 channel
Bridged RMS Power
400 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1200 watts
Total RMS Power Output
800 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 400 Hz
Low-Pass Crossover Frequency
50 - 400 Hz
Signal-to-Noise Ratio
104 dB
Remote bass/level controller
No
Fuse Rating
30A x 2
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HED31200.4

Weight:

9.50lbs

Internal SKU:

hed312004

Internal Product ID:

68561
