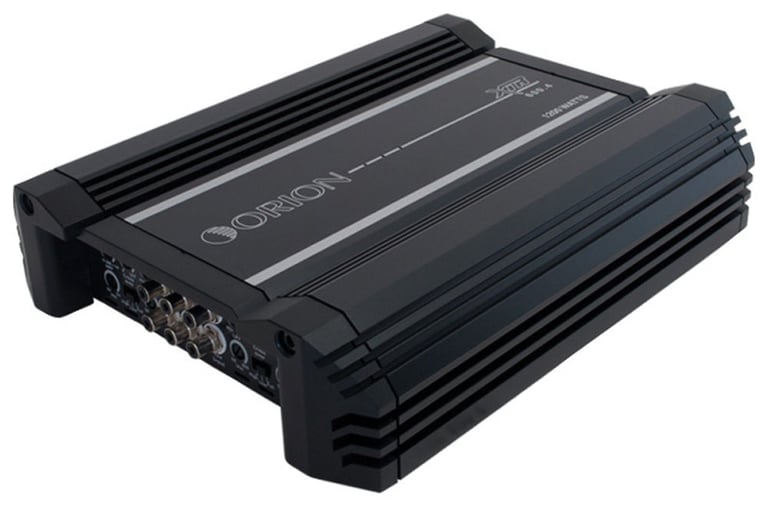

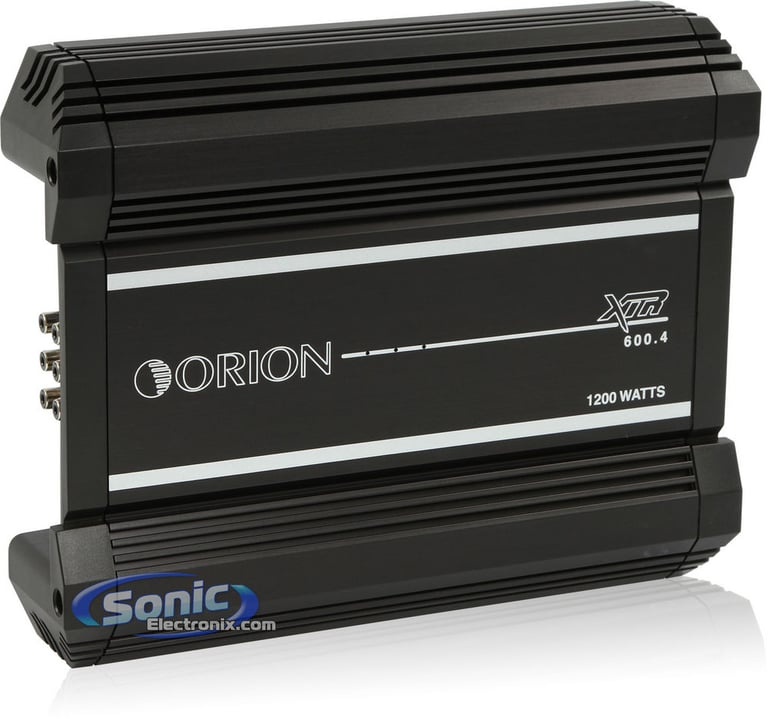

Orion XTR600.4

1200W 4-Channel XTR Series A/B Stereo Amplifier

Orion
Shop all Orion
Product videos
highlight-star-icon

• XTR Series 4-Channel Class A/B Stereo Amplifier
• 90W x 4-Chan. @ 4 ohm
• 150W x 4-Chan. @ 2 ohm
• 4-Channel Operation
• Soft Turn-On/Turn-Off
• Electronic Crossover Network

Learn more about the xtr6004

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

Product Highlights


• XTR Series 4-Channel Class A/B Stereo Amplifier
• 90W x 4-Chan. @ 4 ohm
• 150W x 4-Chan. @ 2 ohm
• 4-Channel Operation
• Soft Turn-On/Turn-Off
• Electronic Crossover Network

Description


Orion brand icon

Authorized dealer

General Features:

  • XTR Series 4-Channel Class A/B Stereo Amplifier
  • RMS Power Rating:
    • 4 ohm: 90 watts x 4 chan.
    • 2 ohm: 150 watts x 4 chan.
    • Bridged, 4 ohm: 300 watts x 2 chan.
  • Max power output: 1200 watts
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators

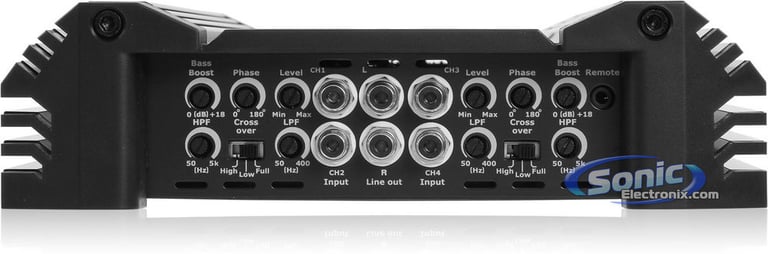

  • Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
  • Soft start turn-on/turn-off
  • Bass boost circuit with tri-mode capabilities
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

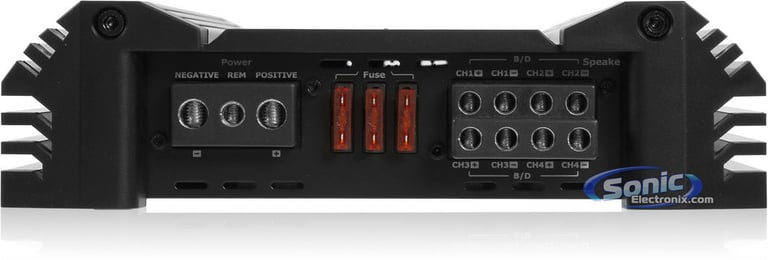

  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Variable high-pass filter (50-400 Hz, 12 dB/octave)
  • Variable low-pass filter (50-400 Hz, 12 dB/octave)
  • Heavy duty gauge direct-wire with high current power and speaker terminals
  • CEA-2006 compliant amplifier
  • Dimensions: 9-5/16"D x 11-1/2"L x 2-1/2"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
