AC600.2 | 2-Channel 2-Ohm Stable Amplifier | Planet Audio

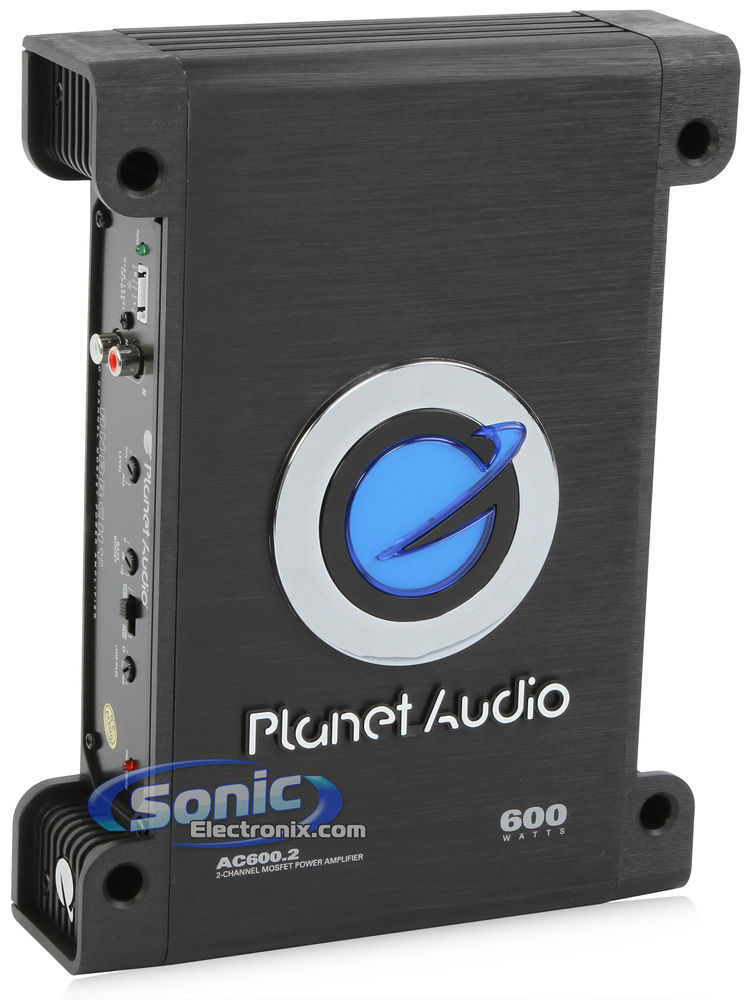

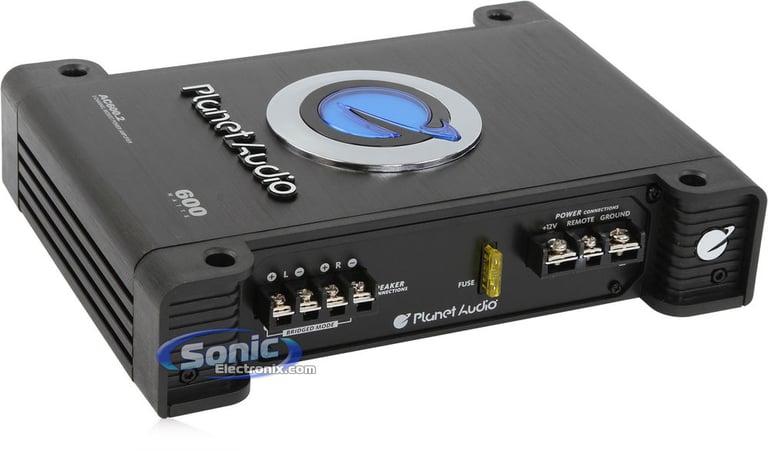

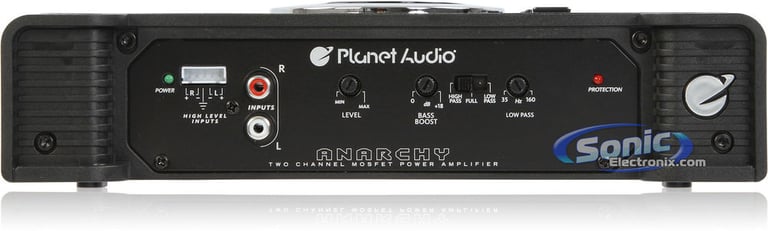

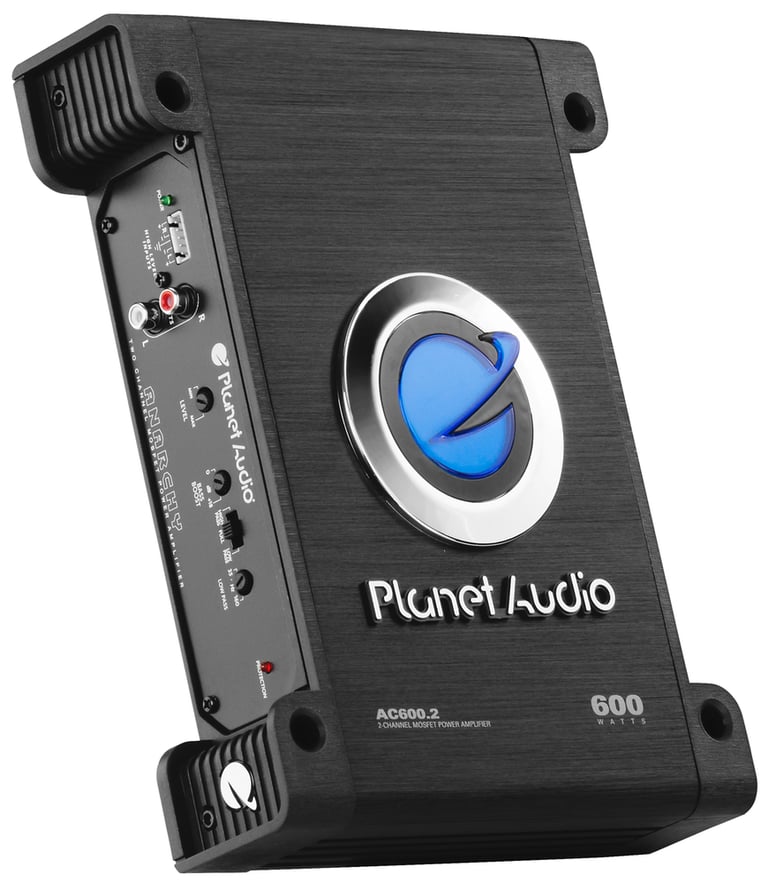

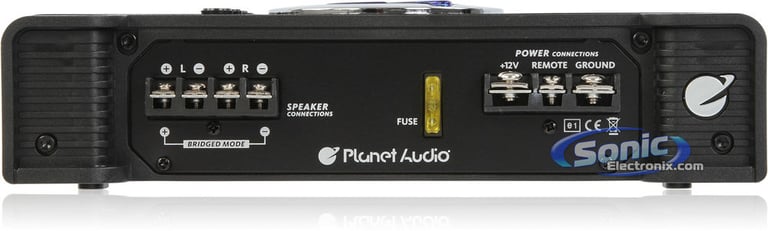

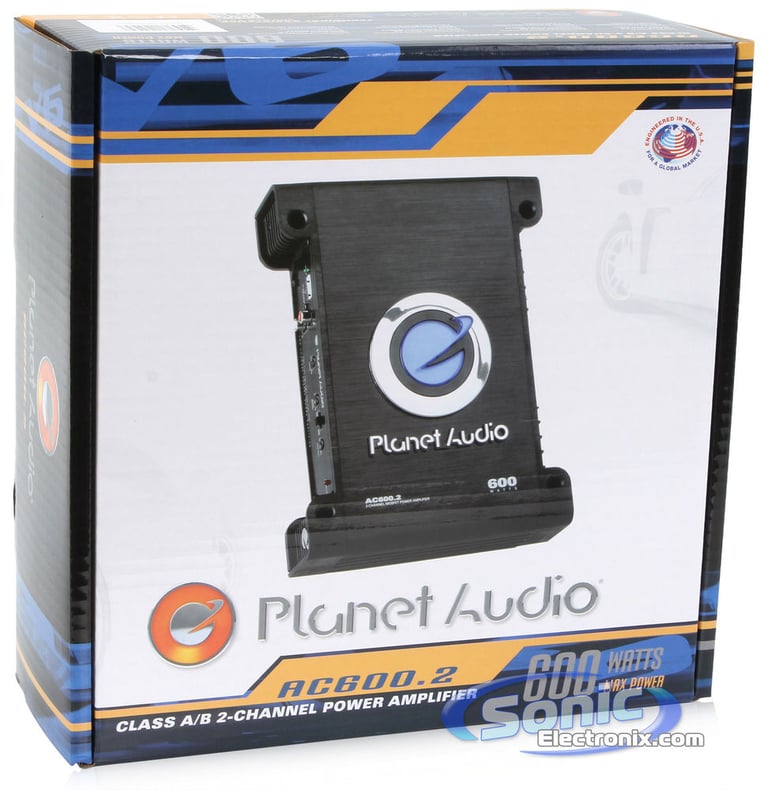

Planet Audio AC600.2

600W Peak (200W RMS) Anarchy Series Class-AB 2-Channel 2-Ohm Stable Amplifier

600W Peak (200W RMS) Anarchy Series Class-AB 2-Channel 2-Ohm Stable Amplifier

• Max Power: 150W x 2 @ 4 ohms, 300W x 2 @ 2 ohms
• Total Peak Power: 600W

• Dimensions: 10" W x 7-12/25" L x 2-9/16" H

SAVE when you bundle with select amp wiring kits:
Click Here to View Bundles!

4.8

(5)
List price $99.99
Save: $30.00

$69.99

Out of Stock - Backorder with warranty
Thanks , You Pay:

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for

Shipping
Fast, Free Shipping

Within the US 48

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

DESCRIPTION
Planet Audio

Authorized dealer



Planet Audio Authorized Dealer

General Features:

  • Planet Audio Anarchy Series AC600.2
  • Class-AB FullRange 2-Ohm Stable 2-Channel Amplifier
  • Max Power Rating:
    • 4 ohms: 150 watts x 2 chan.
    • 2 ohms: 300 watts x 2 chan.
    • Bridged, 4 ohms: 600 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 2 or Mono channel operation
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Nickel plated RCA, Power and Speaker connections
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Input sensitivity: 250mV - 10V
  • Frequency Response: 20 - 20,000 Hz
  • Total Harmonic Distortion (THD): 0.01%
  • Signal to Noise Ration: 102dB
  • Selectable crossover Modes: High Pass / Full / Low Pass
  • Variable low pass filter: 35 - 160 Hz
  • Selectable high pass filter: Fixed at 80 Hz
  • Variable Bass Boost: 0 to +18 dB bass boost at 50 Hz
  • Fuse Rating: 20A x 1
  • 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 10"W x 7-12/25"L x 2-9/16"H
  • Authorized Platinum Internet Dealer
  • 1 year Sonic Electronix, and 5 years Manufacturer's warranty


Check out the AC600.2 Owner's Manual

FEATURES & SPECS
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 2 channels
RMS Power @ 2 ohms
150 watts x 2 channels
Bridged RMS Power
200 watts x 1 channels
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
150 watts x 2 channels
Peak Power @ 2 ohms
300 watts x 2 channels
Bridged Peak/Max Power
600 watts x 1 channels
Amplifier Specifications
Amplifier Series
Anarchy (Planet Audio)
Marine Certified
No
Amplifier Class
AB
Number of Channels
2
Total Peak Power Output
600 watts
Total RMS Power Output
200 watts
Maximum Input Gauge Size
Any Gauge with use of Spade Terminal AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.01%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
Fixed at 80Hz
Low-Pass Crossover Frequency
35 - 160 Hz
Signal-to-Noise Ratio
102 dB
Channel Separation
90 dB
Bass Boost
0 - 18 dB
Bass/Gain Remote
No
Fan Cooled
No
Fuse Rating
20A x 1
Total Fuse Rating
20
Strappable
No
CEA-2006 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Authorized Dealer
Authorized Dealer
Authorized Dealer
What is in the box?
WITB: Amplifiers
Amplifier
Wired gain knob (wire attached)
Paperwork
User manual
Warranty and Return Policy
Parts Warranty Duration
6 years
Labor Warranty Duration
6 years
Warranty Provider
Manufacturer
