Audiopipe APCL-1004

1000W Consumer Line Series 4-Channel Class AB Amplifier

Audiopipe
Shop all Audiopipe
Product videos
highlight-star-icon

• RMS Power: 50W x 4 @ 4 ohm, 100W x 4 @ 2 ohm
• Total Peak Power: 1000W
• Adjustable High and Low Pass Crossovers
• High Quality Aluminum Heat Sink
• Dimensions: 6.9" W x 13.1" L x 2.16" H

Learn more about the apcl1004

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
USB-MZ01 main

Crux USB-MZ01

USB Adaptor for Select 2013-Up Mazda vehicles

-35.71%

$16.20

List price $25.20

R165X3 main

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154
XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

Product Highlights


• RMS Power: 50W x 4 @ 4 ohm, 100W x 4 @ 2 ohm
• Total Peak Power: 1000W
• Adjustable High and Low Pass Crossovers
• High Quality Aluminum Heat Sink
• Dimensions: 6.9" W x 13.1" L x 2.16" H

Description


Audiopipe brand icon

Authorized dealer



Quality without the Cost

The Audiopipe Consumer Line series amplifiers were reengineered from the ground up in 2012 to provide plenty of high quality power for even the highest end sound system while keeping their footprint as compact as possible. Audiopipe didn’t skimp on the internals of these amps, the Consumer Line features the finest in electronic protection circuitry to protect against harmful short circuits, thermal overloads and overheating. These premium choice amplifiers are sure to impress.

Oversized Toroids for Better Sound

Oversized Toroids for Oversized Sound

The Consumer Line amplifiers are built with performance in mind, and a quick look under the hood of these amplifiers reveal oversized toroids. These toroids (basically just wire coils) help to regulate the voltage in the amplifier. By overbuilding them, Audiopipe ensures that every CL series amp puts out even, consistent power for the best possible sound, and the longest life from your components.

Outstanding Heat Dissipation

The Finest in Heat Dissipation

When redesigning the Consumer Line series, Audiopipe took great care in designing an amplifier that would not overheat. These amps feature a high quality aluminum heat sink with cooling fins running along each side and grills embedded in the top plate to ensure outstanding heat dissipation and prevent any unwanted heat related shutdowns.

Speaker Level Inputs

High Level Convenience

Audiopipe’s multi-channel Consumer Line amplifiers feature high level inputs (or speaker level inputs) to allow much simpler installations. High level inputs eliminate the need for RCA cables and line output converters by picking up the audio signal directly from the speakers in your car. They are ideal for use with factory radios that do not have RCA outputs to run amplifiers.




General Features:

  • Consumer Line Series 4-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 50 watts x 4 chan.
    • 2 ohm: 100 watts x 4 chan.
    • Bridged, 4 ohm: 150 watts x 2 chan.
  • Max power output: 1000 watts
  • Variable Bass Boost (0 to +15 dB bass boost at 45 Hz)
  • LED power (green) indicator
  • 4/2 channel operation
  • Input sensitivity:
    • Low level: 250mV-2.5V
  • Input sensitivity speaker level:
    • Low level: 500mV-5V
  • Speaker-level (high-level) inputs
  • Variable high-pass filter (55-550 Hz, 24 dB/octave)
  • Variable low-pass filter (55-550 Hz, 24 dB/octave)
  • Overload, short circuit and thermal system protection
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • 4 gauge power and ground wiring is required for installation
    • Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
  • Dimensions: 6.9"W x 13.1"L x 2.16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

What's in the Box?

  1. APCL-1004 4-Channel Amplifier

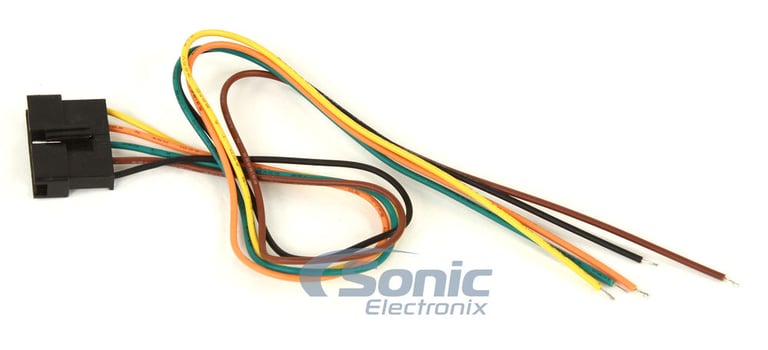

  2. High Level Input Adapter
  3. User Guide

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(25)

$279.99

List price $335.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$304.99

List price $379.99

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

MDX2000.4 2 Ohm small

PRV Audio MDX2000.4 2 Ohm

• 330 watts x 4 channel @ 4 ohm
• 500 watts x 4 channel @ 2 ohm
• Bridged: 1000 watts x 2 channel @ 4 ohm
• Total RMS Power: 2000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$219.91

List price $274.89

GM-DX874 small

Pioneer GM-DX874

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable 4-Channel Amplifier

(14)

$220.00

List price $300.00

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 4 channel
RMS Power @ 2 ohms
100 watts x 4 channel
Bridged RMS Power
150 watts x 2 channel
Amplifier Specifications
Series
Consumer Line Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1000 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.05%
Speaker Level Inputs
Yes
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
55 - 550 Hz
Low-Pass Crossover Frequency
55 - 550 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 15 dB
Remote bass/level controller
No
Fuse Rating
40A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

APCL-1004

Weight:

8.20lbs

Internal SKU:

apcl1004

Internal Product ID:

81640
