SPL FX2-420

420W Max, FX Series 2-Channel Amplifier

SPL
Shop all SPL
Product videos
highlight-star-icon

• 420W Max, FX Series 2-Channel • 4 ohm: 80 watts x 2 chan • 2 ohm: 95 watts x 2 chan • Bridged, @ 4 ohm: 190 watts x 1 chan • S/N Ratio: 98dB • THD: 0.02%

Learn more about the fx2420

We apologize

This item has been discontinued


Loading...
40-GM10 main

Metra 40-GM10

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

45
99-2011 main

Metra 99-2011 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 1990-2012 vehicles from Chevrolet, GMC, Buick

20
-37.05%

$16.99

List price $26.99

SOCGM-17 main

Crux SOCGM-17 Wiring Interface

Install a new car stereo and retains the safety warning chimes in select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

6
-35.71%

$58.05

List price $90.30

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

43DSC69304 main

Kicker DSC6930 (43DSC69304)

720W Peak (180W RMS) 6x9” DS Series 3-way 4-ohm Coaxial Car Speakers with Integrated Midrange

33
-14.29%

$119.99

List price $139.99

DEH-S4220BT main

Pioneer DEH-S4220BT

Single DIN CD Receiver with Bluetooth and Amazon Alexa

9
-11.77%

$149.99

List price $170.00

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Product Highlights


• 420W Max, FX Series 2-Channel • 4 ohm: 80 watts x 2 chan • 2 ohm: 95 watts x 2 chan • Bridged, @ 4 ohm: 190 watts x 1 chan • S/N Ratio: 98dB • THD: 0.02%

Description


SPL brand icon

Authorized dealer

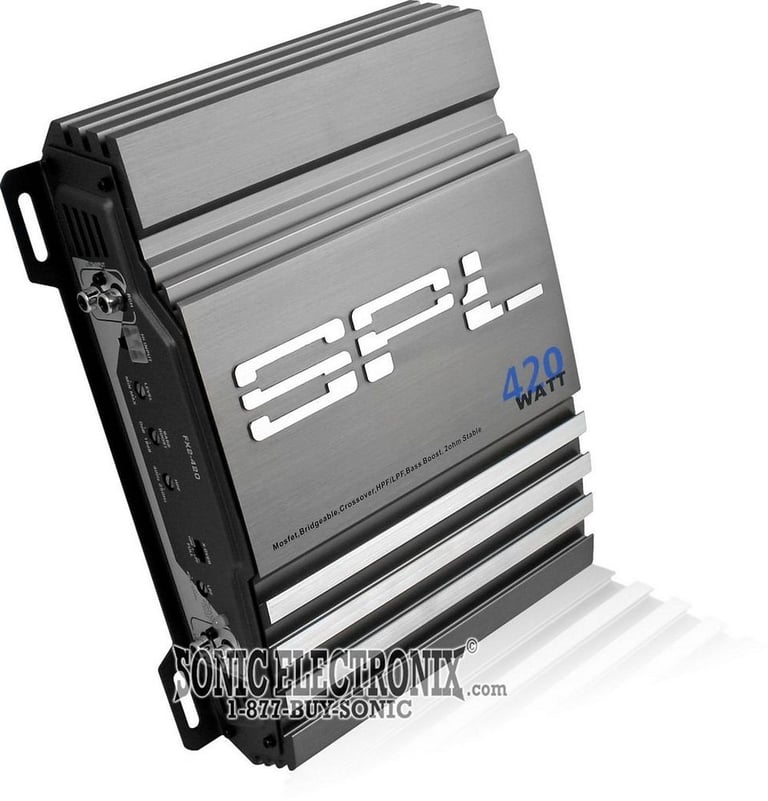

  • SPL FX2-420 420W Max, FX Series 2-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 80 watts x 2 chan.
    • 2 ohm: 95 watts x 2 chan.
    • Bridged, @ 4 ohm: 190 watts x 1 chan.
  • Full Mosfet Power Supply
  • PWM Circuitry

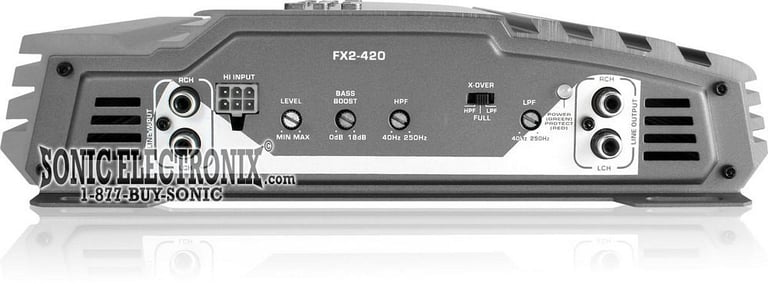

  • Full Selectable Crossover Hi/Full/Low
  • Three Way Protection Circuit
  • 2 Ohm Stable Stereo
  • Tri-Mode Capable
  • Variable Low Pass 40 Hz-250 Hz
  • Variable Hi Pass 40 Hz-250 Hz
  • Variable 18 dB Bass Boost @ 40 Hz
  • Frequency Response: 10 Hz to 30 KHz
  • S/N Ratio: 98dB
  • THD: 0.02%
  • System Distress Indicator
  • Platinum Plated RCA Connectors
  • Line Output
  • High/Low Level Inputs with Floating Ground
  • Dimensions: 7.2" L x 11.1" W x 2.3" H
  • 4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • 1-year Manufacturer's warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
80 watts x 2 channel
RMS Power @ 2 ohms
95 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
190 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
420 watts
Total RMS Power Output
190 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.02%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
40 - 250 Hz
Low-Pass Crossover Frequency
40 - 250 Hz
Subsonic Filter
n/a
Signal-to-Noise Ratio
98 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fuse Rating
20A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

SPL

Model Number:

FX2-420

Weight:

6.40lbs

Internal SKU:

fx2420

Internal Product ID:

9166

Product and How-to Videos


Customer Ratings & Reviews


SPL FX2-420 thumbnail image

5 star
0%
4 star
50%
3 star
25%
2 star
0%
1 star
25%



Durability
3.3
Value
3.8
Features
2.8
Design
3.8
Usability
4.3

Customer Reviews

Sort by:

Loading...

Great amp for the cost

This amp holds up very well for being so affordable. Even though it is not CEA compliant it seems to put out somewhere close to its RMS ratings. Great amp.

By Joe on December 24, 2009

22 found this helpful


not as great as it seems

I bought this amp because it was perfect for my speaker set up. It ran nice for about 6 months then just stopped working one day. since i threw away the box i couldn't return it to sonic which sucks but i guess i got what i paid for

By Tony on September 30, 2010

14 found this helpful


Very good product

I bought this amp and an open box Rockford Fosgate 12" for my first system. I bridged the two channels, put it in a sealed box in the back of my blazer and couldn't have been happier. Obviously you can't achieve ground shaking bass with this little amp but for the price, it put enough bump in my truck to make me smile from ear to ear while driving back and forth to school. Well it didn't last long, some lowlife stole my BUDGET system on the first week of school. Now saving for an L7. I would definitely buy another SPL amp, they're great would recommend to anybody without the money for JL or Kicker. oh and my two cents about theives, REBAR and a MIG will keep your box safe as long as you don't care about cosmetics in the trunk,

By Mikey on February 4, 2011

14 found this helpful


beware, doesn't reach RMS

Well after reading the other reviews for this product. I was optimistic because it was the only amp at a reasonable price I found that could put out 80 watt RMS at 4 ohm per channel. This amp was for a set of TS-D6902R (RMS at 80 watts), which in no way are a bad set of 6x9's. So I wired everything up, and to get any volume at all I had to set the gain to max. Any time any bass hit the speakers would distort like crazy so I set the high pass filter. This product is suppose to have a range of 40-250hz... 40 hz sounded identical to the 250 cutoff. It filtered zero bass out. So the crossover is extremely ineffective. Then i started to suspect power, so I pulled out my multi-meter to see how much power the amp put out. I used a test tone of 60hz at full volume on the system. It was only putting out 10V per channel at 4 ohms. This is only 20 watts. It should have been pumping out 80 watts RMS, but instead only 20. I checked the bridged power output and found it only putting out about 125 watts, way short of the 180 watt RMS. I have replaced this amp with a Dual xpa2500 (which is CERTIFIED for 50watt RMS), and the speakers sing, so I know it was the SPL amp that was way under powering the 6x9's. Long story short. avoid this amp, buy one that is certified by CES. It puts out the power of a head-unit. This thing has driven me crazy...it I hadn't thrown away the box I would be returning it.

By Patrick on May 14, 2011

11 found this helpful
