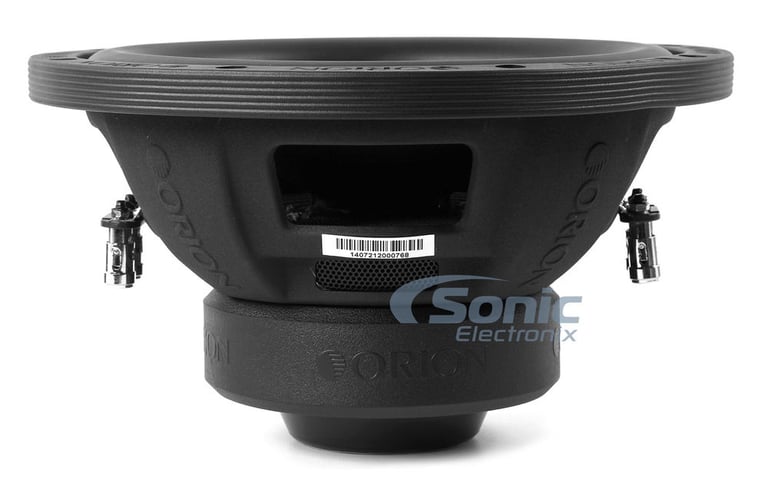

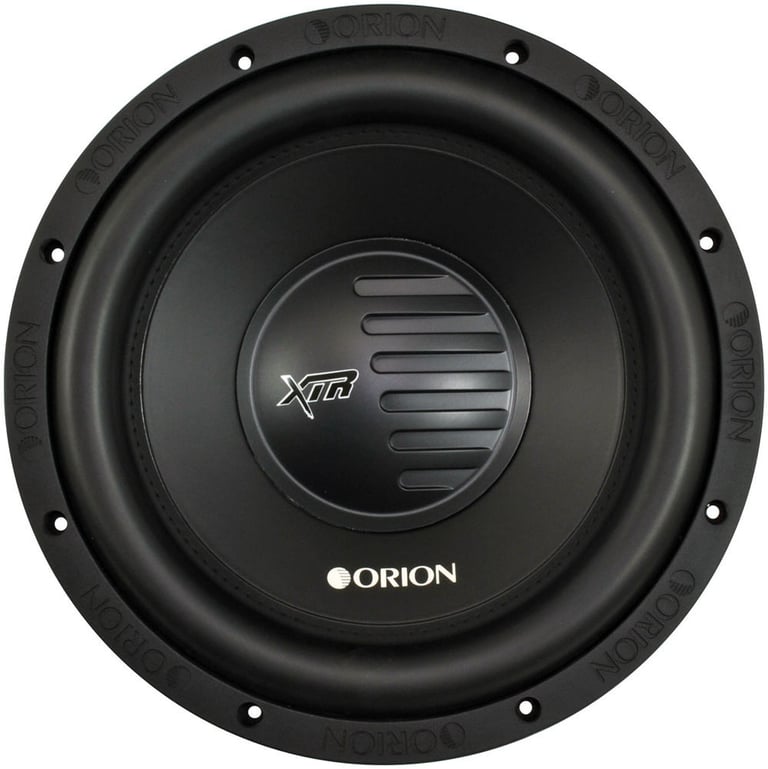

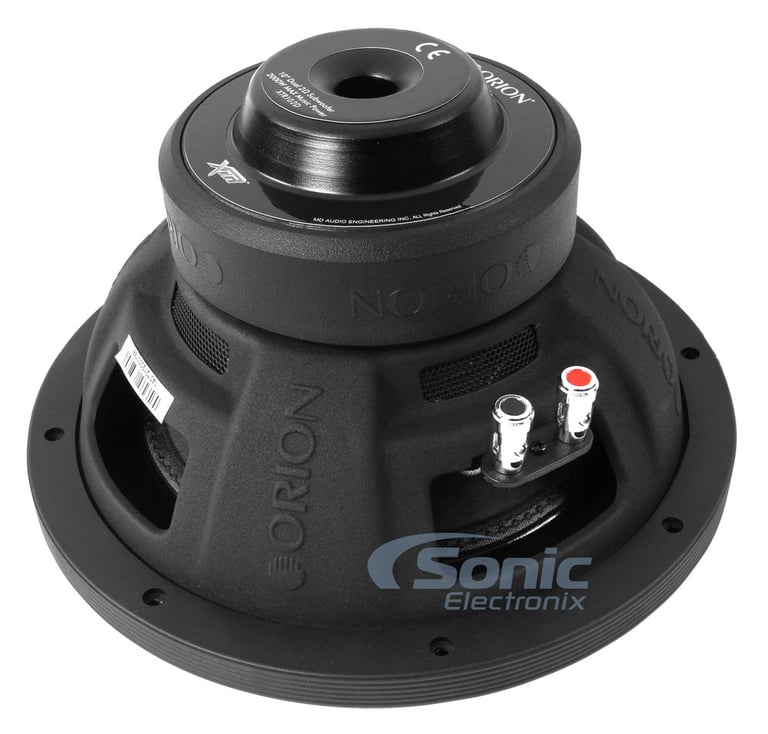

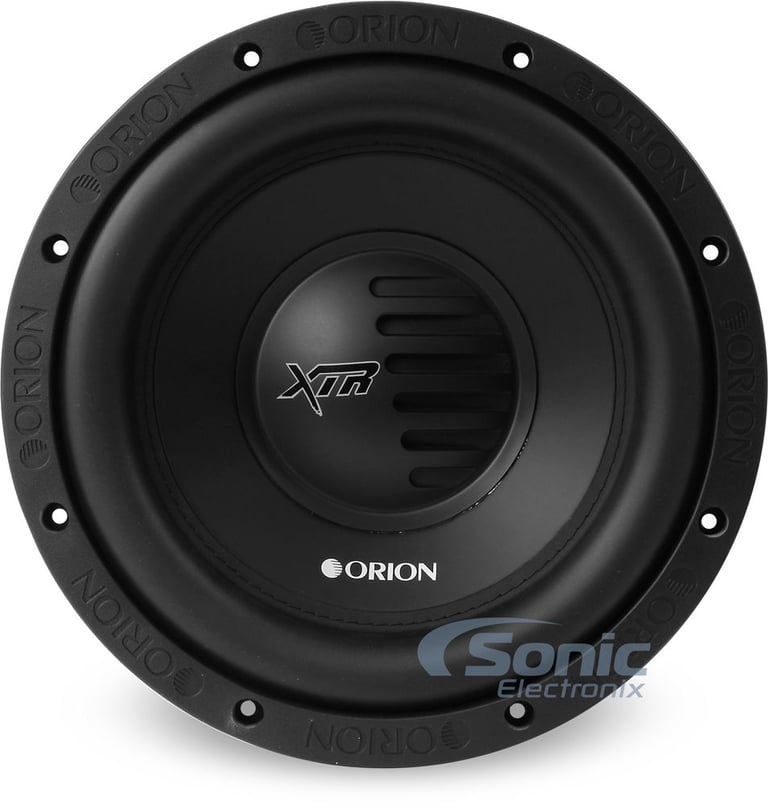

Orion XTR102D

2000W Peak (500W RMS) 10" XTR Series Dual 2-ohm Car Subwoofer

Orion
Shop all Orion
Product videos
highlight-star-icon

• RMS Power: 500W
• Polypropylene dust cap - moisture and UV resistant
• Oversized Nitrile-butadiene rubber surround
• Paper cone woofer
• Kapton voice coil former
• Sensitivity: 84.41 dB
• Frequency response: 20 - 250 Hz

Learn more about the xtr102d

We apologize

This item has been discontinued


Loading...
99-3045 main

Metra 99-3045

Single DIN or Double DIN Stereo Dash Kit for select 1994-1997 vehicles from GMC, Chevrolet, Isuzu (Black)

12
-42.87%

$19.99

List price $34.99

Limited time!
XAV-AX3200 main

Sony XAV-AX3200

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay, and Android Auto (SiriusXM Ready)

14
-25.50%

$298.00

List price $399.99

T46 main

Earthquake Sound T46

600W Peak 4x6” TNT Series 2-Way Coaxial 4-ohm Car Speakers

1
-19.20%

$79.99

List price $99.00

H7652 main

Cerwin Vega H7652

640W Peak (120W RMS) 6.5" HED Series 2-Way Coaxial 4-ohm Speakers

31
-16.67%

$69.99

List price $83.99

Stage3 427F main

JBL Stage3 427F (STAGE3427FAM)

300W Peak (60W RMS) 4" Stage3 Series 2-Way Coaxial 3-ohm Car Speakers

3
-22.23%

$69.95

List price $89.95

H746 main

Cerwin-Vega H746

550W Peak (80W RMS) 4x6" HED Series 2-Way Coaxial 4-ohm Speakers

9

Product Highlights


• RMS Power: 500W
• Polypropylene dust cap - moisture and UV resistant
• Oversized Nitrile-butadiene rubber surround
• Paper cone woofer
• Kapton voice coil former
• Sensitivity: 84.41 dB
• Frequency response: 20 - 250 Hz

Description


Orion brand icon

Authorized dealer

General Features

  • XTR Series Dual 2 ohm Subwoofer
  • Power Handling:
    • MAX: 2000 watts
    • RMS: 500 watts
  • Recommended power range: 200 -500 watts RMS
  • Polypropylene dust cap - moisture and UV resistant
  • Oversized Nitrile-butadiene rubber surround
  • Paper woofer cone
  • Custom stamp steel frame
  • Kapton voice coil former
  • TT steel front plate
  • Large ceramic magnets
  • Steel back plate/pole piece T yoke assembly
  • 1.125" bottom end vent
  • PVC magnet protector
  • High temperature copper dual voice coil
  • Interlaced conex spider with stitched and looped tinsel leads
  • PVC trim ring decor
  • Spring loaded push terminals
  • Frequency response: 20 - 250 Hz
  • Sensitivity: 84.41 dB
  • Xmax: 12.075 mm
  • Top-Mount Depth: 5.31"
  • Cutout Diameter: 9.10"
  • Driver Displacement: 0.05 ft³
  • Recommended sealed enclosure: 1.00 ft³
  • Recommended ported enclosure: 1.00 ft³
  • 1-year Sonic Electronix Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Orion XTR102D Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Orion XTR102D Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Orion XTR102D Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Orion XTR102D Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Series
XTR Series
Subwoofer Size
10"
Peak Power Handling
2000 watts
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
2.5"
Frequency Response
20 - 250 Hz
Sensitivity
84.65 dB
Xmax (millimeters)
12.075 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Dark Gray
Woofer Composition
Paper
Woofer Surround
Nitrile Butadiene Rubber NBR
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.00 cubic feet
Optimum Ported Box Volume
1.00 cubic feet
Top-Mount Depth (Mounting Depth)
5.31"
Cutout Diameter
9.10"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
25.0 Hz
Equivalent Compliance (Vas)
52.690 liters
Total Speaker Q Value (Qts)
0.469
Electrical Q Value (Qes)
0.483
Electrical Resistance of Voice Coil (Re)
3.93 ohm
Mechanical Q Value (Qms)
16.275
Efficiency Bandwidth Product (EBP)
42
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

XTR102D

Weight:

13.40lbs

Internal SKU:

xtr102d

Internal Product ID:

92812
