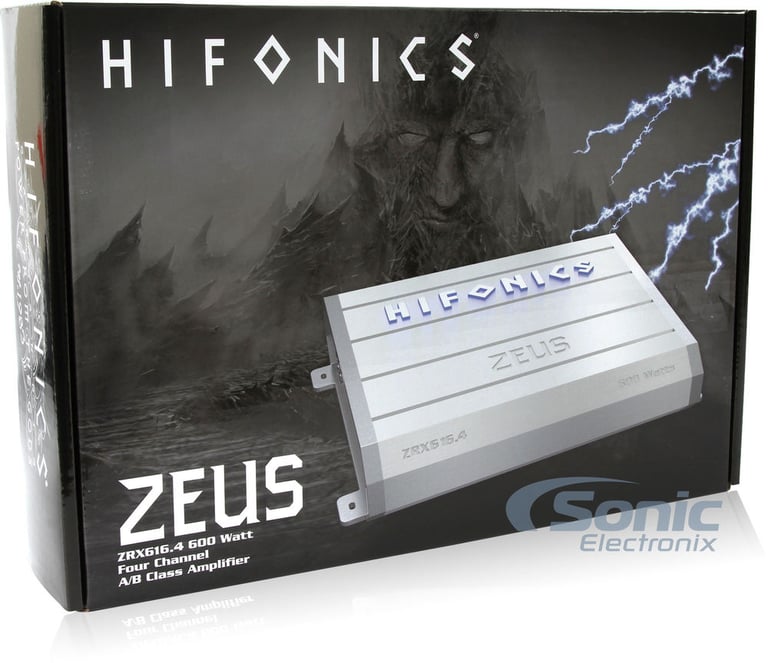

Hifonics Zeus ZRX616.4

600 Watt 4 Channel Zeus Series Class AB Amplifier

Hifonics
Shop all Hifonics
Product videos
highlight-star-icon

• Max Power: 250W x 4 @ 4 ohm, 500W x 4 @ 2 ohm
• Total Peak Power: 2000W
• Variable Low and High Pass Filters
• Dimensions: 10" W x 12.6" L x 2.4" H

Learn more about the zrx6164

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

44
-20.01%

$11.99

List price $14.99

95-7526B main

Metra 95-7526B Dash Kit

Install a new Double-DIN car stereo in select 2014-2018 3

-10.00%

$89.99

List price $99.99

40-HD10 main

Metra 40-HD10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2005-2024 vehicles from Honda, Mazda, Acura

29
-15.40%

$10.99

List price $12.99

82-7501 main

Metra 82-7501

Speaker Brackets for select 2013-2023 vehicles from Mazda - Pair

3
-48.85%

$21.99

List price $42.99

70-7905 main

Metra 70-7905 Wiring Harness

Install a New Car Stereo in select 2016-2024 vehicles from Mazda

-11.12%

$23.99

List price $26.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00

Product Highlights


• Max Power: 250W x 4 @ 4 ohm, 500W x 4 @ 2 ohm
• Total Peak Power: 2000W
• Variable Low and High Pass Filters
• Dimensions: 10" W x 12.6" L x 2.4" H

Description


Hifonics brand icon

Authorized dealer



General Features:

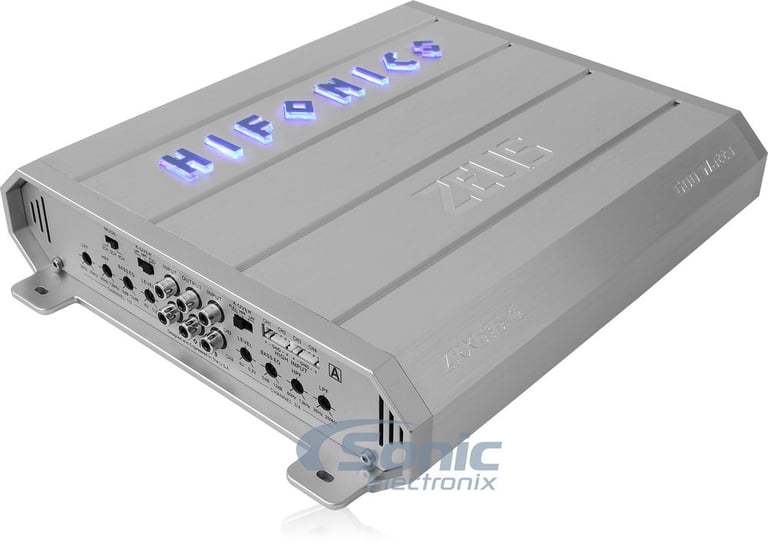

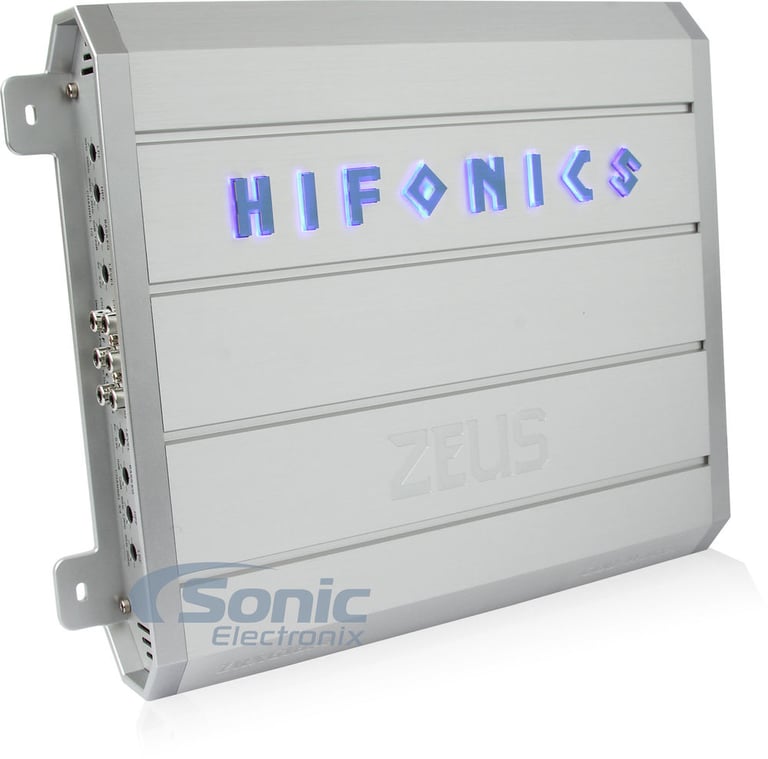

  • Zeus Series 4-Channel Class AB Car Amplifier
  • Max Power Rating:
    • 4 ohm: 75 watts x 4 chan.
    • 2 ohm: 150 watts x 4 chan.
    • Bridged, 4 ohm: 300 watts x 2 chan.
  • Max power output: 600 watts
  • Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • 4/3/2 channel operation

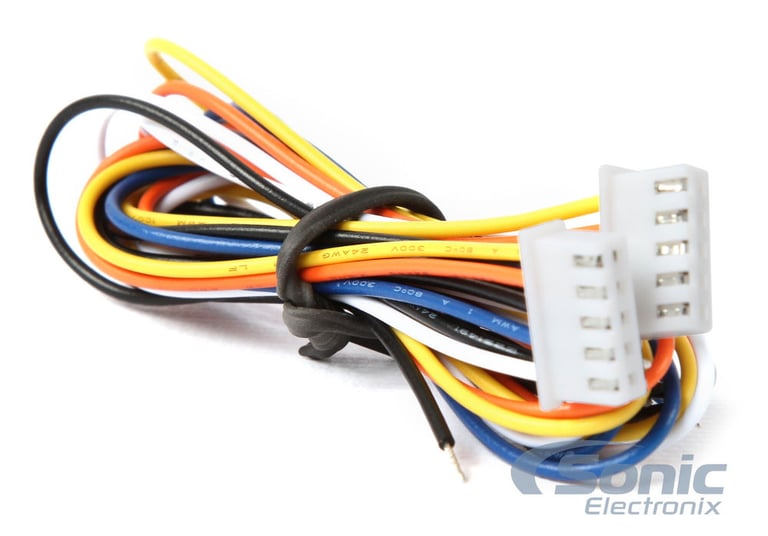

  • Speaker-level (high-level) inputs

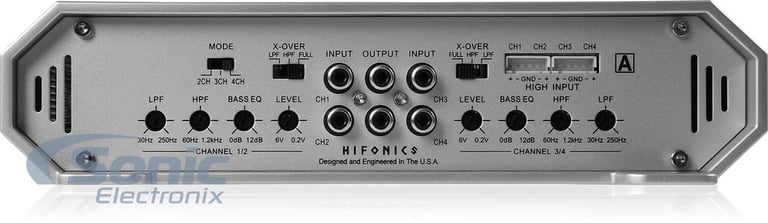

  • Variable high-pass filter (60-1200 Hz, 24 dB/octave)
  • Variable low-pass filter (30-250 Hz, 24 dB/octave)
  • Frequency Response: 10-45,000 Hz
  • Old School Hifonics heatsink provides superior heat dissipation
  • Military grade PCB construction
  • Simpatico coil design
  • Hifonics surface mount design
  • DC, short circuit, thermal and overload protection

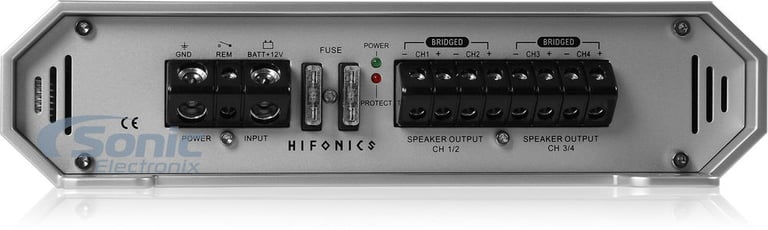

  • 8 gauge power and ground wiring is required for installation
    • Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
  • Dimensions: 10"W x 12.6"L x 2.4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Hifonics ZRX616.4 thumbnail
(newest, current model)
Hifonics ZRX600.4 thumbnail
(previous model, replaced by Hifonics Zeus ZRX616.4)
Hifonics ZXi80.4 thumbnail
(previous model, replaced by Hifonics Zeus ZRX600.4)
Hifonics ZXi4410 thumbnail
(previous model, replaced by Hifonics Zeus ZXi80.4)
Hifonics ZXi4408 thumbnail
(previous model, replaced by Hifonics ZXi 4410)
Hifonics ZXi4406 thumbnail
(previous model, replaced by Hifonics ZXi 4408)
Hifonics ZX4400 thumbnail
(previous model, replaced by Hifonics ZXi 4406)

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(22)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(111)

$209.99

List price $239.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(117)

$279.99

List price $335.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

R2-500X4 small

Rockford Fosgate Prime R2 R2-500X4

• 75 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(10)

$359.99

List price $359.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

MDX2000.4 2 Ohm small

PRV Audio MDX2000.4 2 Ohm

• 330 watts x 4 channel @ 4 ohm
• 500 watts x 4 channel @ 2 ohm
• Bridged: 1000 watts x 2 channel @ 4 ohm
• Total RMS Power: 2000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$219.91

List price $274.89

CXA360.4 small

Kicker CXA360.4 (46CXA3604T)

• 65 watts x 4 channel @ 4 ohm
• 90 watts x 4 channel @ 2 ohm
• Bridged: 180 watts x 2 channel @ 4 ohm
• Total RMS Power: 360 watts
• Class A/B 2 ohm Stable 4-Channel Amplifier

(16)

$229.99

List price $249.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
150 watts x 4 channel
Bridged RMS Power
300 watts x 2 channel
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
75 watts x 4 channel
Peak Power @ 2 ohms
150 watts x 4 channel
Bridged Peak/Max Power
300 watts x 2 channel
Amplifier Specifications
Series
Zeus Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
600 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.05%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
60 - 1200 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
25A x 3
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ZRX616.4

Weight:

7.40lbs

Internal SKU:

zrx6164

Internal Product ID:

94894

Product and How-to Videos


  • Maxxsonics Hifonics Zeus + Brutus Car Amplifiers | CES 2015
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


Hifonics Zeus ZRX616.4 thumbnail image

5 star
76%
4 star
18%
3 star
2%
2 star
2%
1 star
2%



Durability
4.5
Value
4.8
Features
4.8
Design
4.7
Usability
4.7

Customer Reviews

Sort by:

Loading...

Impressed...

The following review is for a previous version (ZRX600.4).

I bought this to run the new kicker LED speakers, 4 of them in our boat. it's not a marine amp but I installed it off the floor on some bushings and under our helm. I was amazed that an amp that cheap could sound that good. I was very skeptical! Plenty of power and it just so happened to light up with matching blue LED in my boat! Never felt warm to the touch during use.

Pro's: excellent price, provides plenty of power to run 4- 6.5" speakers.
Looks awesome lit up. I even got a price match!

Con's: little bigger than I thought

By shaniac on May 12, 2014

32 found this helpful


Amazing sound!

The following review is for a previous version (ZRX600.4).

I have this amp running two infinity kappa 2ohm 6.5s in the front and 2 5.25 Rockford 4ohm speakers in the back, and they get loud! I am very pleased with this set up!

By Tyler on December 22, 2014

26 found this helpful


Great power supply!

The following review is for a previous version (ZRX600.4).

People trash talk hifonics saying they're not as they used to be but i beg to differ.Every company except one or two make their products overseas and this is to make the product more affordable for us, unfortunately quality can suffer, but thankfully this amp doesn't fall into this category.
I have three amps currently in my car, one sub, 12 other speakers including tweeters. The zrx 600.4 replaced the 6/7 year old jbl gt75.4 i had because i wanted something smaller, more efficient with a new school, power efficient power supply for a reasonable price. Compared this amp to my rockford fosgate amps and i think those would win basically because the new rf amps are the best products they've made in a long long time. The sound quality is good, not great, but i know my speakers have way more clean power going to them now since they sound totally different.Mmids are louder, highsare cleaner and the amps mounted in my spare tire well, held down with velcro but ive read thats a good cool place to mount an amp. No problem except slight whining noise either from an old rca, the gain being too high or maybe crossed wires, im fairly certain it's not the amp tho unless gains just up too high. I use my zrx600 to power 6.5" infinity kappa coaxial 100w rms, 6.5" jbl p665 components also handlea nominal 100w (whch btw they bump some amazing mids now, infinitys do too).
I recommend this amp to hifonics loyalists in need of an efficient 4ch amp to power some mid/high end speakers that can handle atleast 80-85 watts,but i bet it could power a couple of 10" kicker comps easily. Ty sonic! As always best deal online, free shipping and good service is a bonus!

By MazdaSpeed3 on May 25, 2013

26 found this helpful


This is great!!!!

The following review is for a previous version (ZRX600.4).

This amp is awesome it works great in my avalanche

By Hugo on March 21, 2014

26 found this helpful


Awesome amp

The following review is for a previous version (ZRX600.4).

Love it. Amp works to perfection. This will be my second one bought.

By Justin on April 26, 2012

26 found this helpful


Great amp for mids and highs

The following review is for a previous version (ZRX600.4).

This is the amp to buy for mids and highs. I have it on four 5x7's and it rocks them way better than I thought it would. The price of this amp is very low for what you get. I have had way more expensive amps that haven't preformed as well as this one. Great buy for sure.

By Cmc on April 21, 2014

25 found this helpful


Amp

The following review is for a previous version (ZRX600.4).

Good price, decent amp. Little cheap made but gets it done.

By Corey on October 6, 2014

24 found this helpful


Great product if it works

The following review is for a previous version (ZRX600.4).

This will have been the second one I have purchased. I purchase one about a year and a half ago it worked great for about three months and the one channel started intermittantly going out it took about another three months to trouble shoot the problem. When finally everything pointed to the amplifier I replaced it with the same one to prevent changing connections so far prolem solved and working great as I said great product when it works

By Rokie on September 27, 2014

24 found this helpful


Great little amp

The following review is for a previous version (ZRX600.4).

At first I thought it was going to be a little cheap compare to other amps but I was very surprised. Right now I am loving it and the best part is the price was awesome....

By Manuel on October 20, 2014

22 found this helpful


Screamin

The following review is for a previous version (ZRX600.4).

I bought this amp for my 6.5 coaxial speakers and it was a night and day difference. Cant beat the price of hifonics amps

By Caddy on 8s on May 4, 2014

24 found this helpful




BTBTLMGY boomBOTTLE MINI small

Scosche boomBOTTLE MINI BTBTLM (Gray)

Rugged Weatherproof Wireless Bluetooth Portable Speaker

$49.00

List price $59.99

HWHL71305 small

Herstal 2030071305

Cori Wine Rack Holds 12 Bottles (Black)

$49.99

List price $94.00

WR-12 small

Sangean WR-12 (Walnut)

AM/FM Radio Receiver Speaker System

$137.95

List price $169.95

ATTCL80101 small

AT&T ATTCL80101

Dect 6.0 Accessory Phone Handset For The 800 Series

$21.00

List price $19.95

MPS-UNDG-KT1 small

Metra MPS-UNDG-KT1

6 LED Tube Universal Underglow Chase Kit for UTV, ATV, and Golfcart

$286.99

List price $318.99

JL-SBAR22/BK small

DS18 JL-SBAR22/BK

Custom-fit Empty Sealed Overhead Soundbar Enclosure for select 2019-2026 Wrangler Unlimited 4xe and Wrangler (JL) and Wrangler

$539.95

List price $539.95

Agent (USC) S6AGDZ-150 small

Skullcandy Agent S6AGDZ-150 - USC

Trojans University of Southern California (USC) Over-Ear Headphones

$28.99

List price $59.99

AIR-SA20PK small

Sony AIR-SA20PK Wireless iPod Whole House S-AIR Audio System

Wireless iPod Whole House S-AIR iPod Dock and 2 Digital Wireless Speakers (S-AirPlay)

(4)

$179.99

List price $399.99

PCPA10W small

Panasonic PCPA10W Blood Pressure Monitor

Panasonic Ewbw10w Blood Pressure Monitor

$47.99

List price $89.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2017 Mazda 3

2005 Ford Five Hundred

2003 BMW M3

2007 Mazda CX-7

1997 Lincoln Town Car

2015 Mazda 3

1985 Chevrolet Spectrum

2008 Ford Ranger

2007 Kia Optima

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
