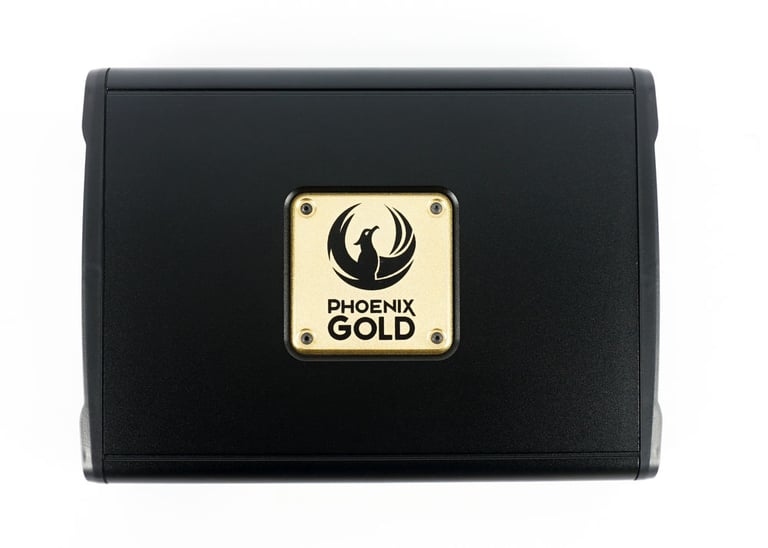

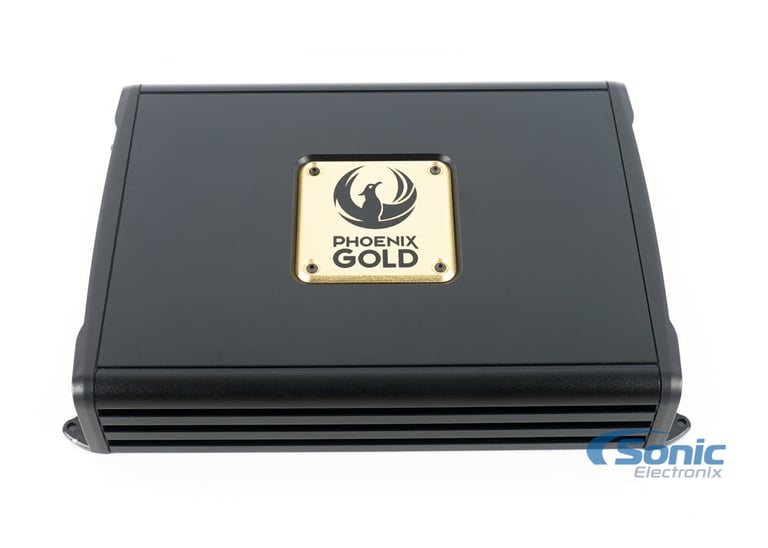

Phoenix Gold RX2 750.5 (RX27505)

750W RMS 5-Channel Full Range Class D Amplifier

highlight-star-icon

• 750 Watt 5 Channel Full Range Class D Amplifier
• Small Footprint Chassis Design

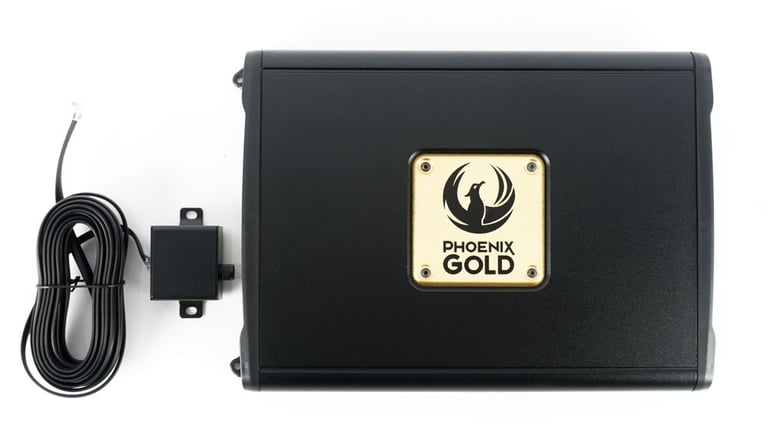

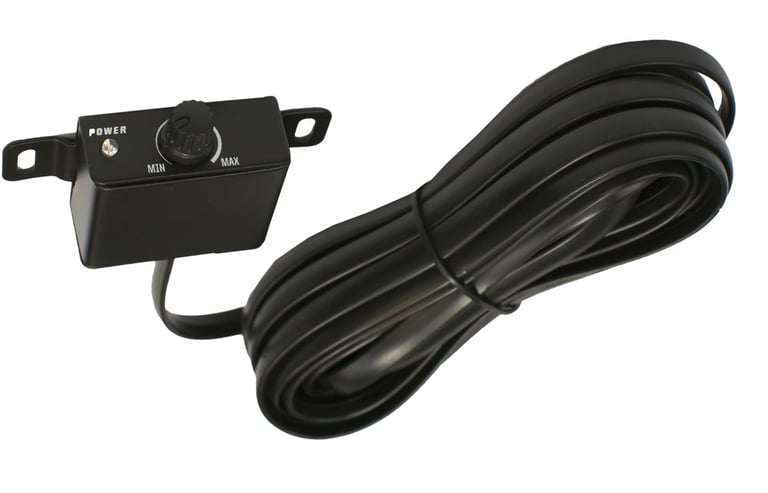

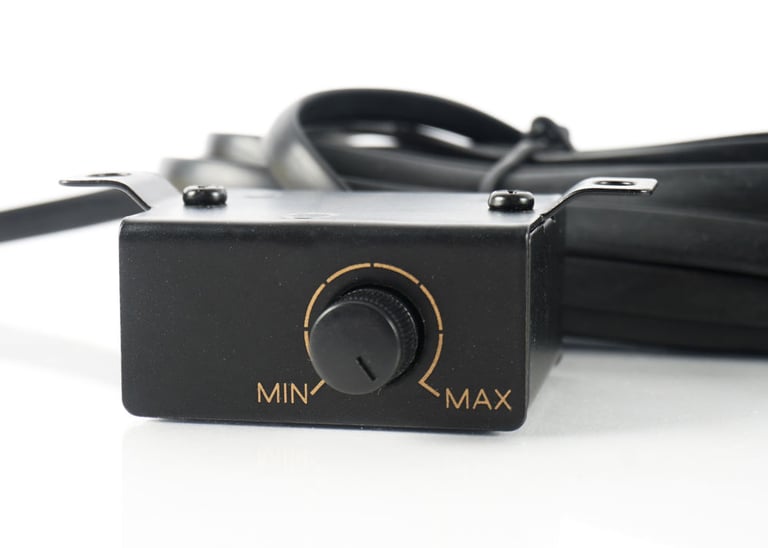

• Remote Bass Controller Included
• Robust Unregulated Power Supplies

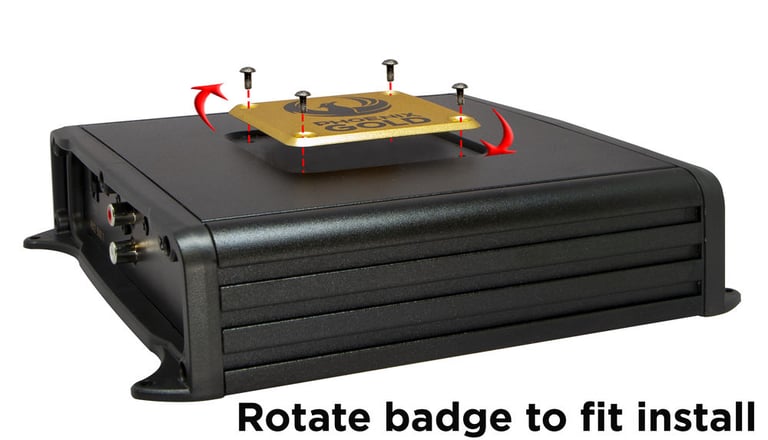

• Rotatable Badging for installation flexibility
• High level Inputs for Easy OEM Integration
• Audio Precision® Quality Control Verification

Learn more about the rx27505

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
LEX5VL2 main

GROM Audio LEX5VL2 VLine Lexus Infotainment Video Interface

For select 2006-2009 vehicles from Lexus, Toyota. Upgrade your factory radio to an Android infotainment display with music streaming, navigation and more

4
-16.67%

$679.95

List price $815.99

LEX5VT2 main

GROM Audio LEX5VT2

Factory Radio Android Auto, Apple CarPlay and Navigation Integration Upgrade for select 2006-2009 vehicles from Lexus, Toyota

1

$549.95

List price $559.95

82-SU1 main

Metra 82-SU1

Speaker Adapter & Harness Kit for select 2002-2024 vehicles from Toyota, Subaru, Lexus (Front Speakers)

-46.52%

$22.99

List price $42.99

AXDIS-TY1 main

Axxess AXDIS-TY1

Install New Car Stereo and Retain Steering Wheel Controls and Other Factory Features In select 2001-2015 vehicles from Toyota, Lexus

3
-10.27%

$235.99

List price $262.99

Limited time!
C2-350X main

JL Audio C2-350x

50W RMS 3.5” C2 Series 2 Way Coaxial 4-ohm Car Speakers

15
-15.63%

$134.99

List price $159.99

Description


Phoenix Gold brand icon

Authorized dealer

General Features:

  • Number of Channels: 5
  • 60w x 4  @ 4 Ohm + 250w x 1 @ 4 Ohm
  • 90w x 4 @ 2 Ohm + 400w x 1 @ 2 Ohm
  • 4Ω: CH 5 250W x 1
  • 2Ω: CH 5 400w x 1
  • Total RMS Power (Sum of rated power): 760W
  • Bridgeable: Yes

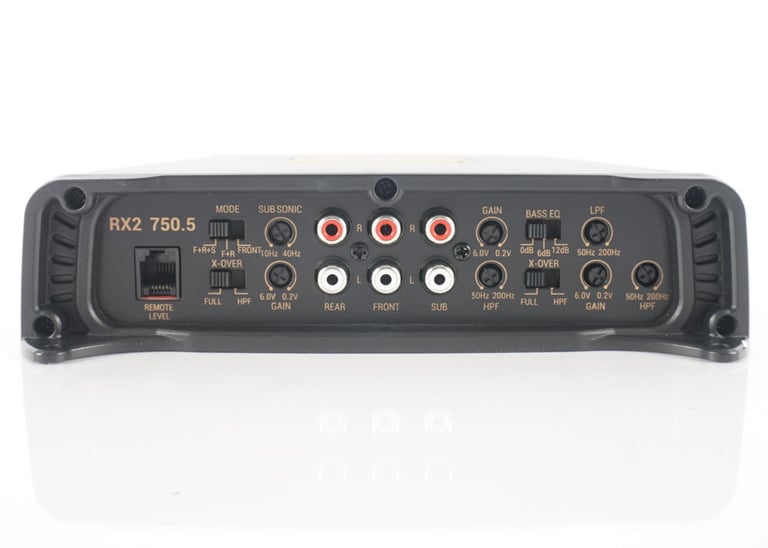

  • Crossover Control, Linkwitz-Riley: FLAT/HP/LP
  • Crossover: 50Hz - 200Hz @ 12dB/Oct
  • Input Sensitivity: 198mV – 4.0V SUB  217mV – 2.9 MAIN
  • Signal to Noise (@ CEA Standard): 80.1dB
  • Frequency Response: Full Range 10-40k Sub 15-200Hz
  • Topology Class: D
  • Heatsink Type: Extruded Aluminum
  • Bass EQ: 0dB, +6dB +12dB
  • Subsonic Crossover Range: 10Hz to 40Hz
  • Cooling Type: Radiation
  • Operating Voltage: 8V to 16V
  • Switchable Auto-Turn On: Yes
  • Power Supply Type: Unregulated with OTM | Onboard Thermal Management
  • 4-gauge power and ground wiring is recommended for installation. Contact our Sales team for information regarding a discount on select amplifier kits when purchased together with this amplifier
  • Speaker Terminal: 12 Gauge

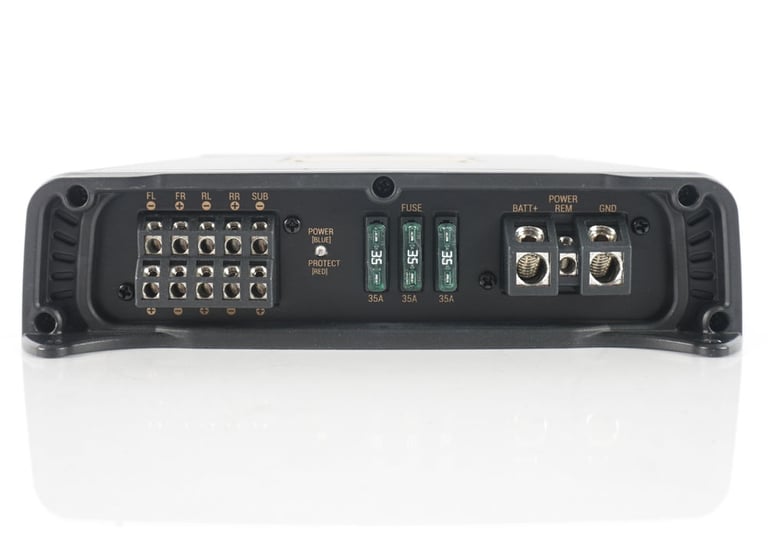

  • Recommended Fusing: 3 x 35A
  • Dimensions (L x W x H): 11.81” x 8.11” x 1.98” 300mm x 206mm x 50.5mm
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Phoenix Gold RX2750.5 owner’s manual

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

1
-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00


Best selling similar products

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(137)

$349.99

List price $419.99

NDA11005 small

NVX NDA11005

• 100 watts x 4 channel + 315 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(17)

$259.99

List price $323.99

VAD22008v2 small

NVX VAD22008 v2 (VAD22008v2)

• 150 watts x 6 channel + 250 watts x 2 channels @ 4 ohm
• 225 watts x 6 channel + 400 watts x 2 channels @ 2 ohm
• Bridged: 450 watts x 3 channel + 850 watts x 1 channel @ 4 ohm
• Total RMS Power: 2200 watts
• Class D 2 ohm Stable 8-Channel Amplifier

(2)

$399.99

List price $539.99

HDP-D90 small

Alpine Status HDP-D90

• 50 watts x 8 channel + 80 watts x 4 channel @ 4 ohm
• Total RMS Power: 720 watts
• Class D 4 ohm Stable 12-Channel Digital Sound Processor Amplifier
• High-resolution (Hi-Res) audio playback
• Selectable pre-configured sound system configurations
• Embedded RTA signals for customized sound tuning
• Bluetooth audio streaming with included external module

(1)

$1999.95

List price $3480.00

EPICFIVE small

AudioControl EPICFIVE

• 75 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• 700 watts x 1 channel @ 1 ohm (subwoofer output)
• Bridged: 400 watts x 2 channel @ 4 ohm
• Total RMS Power: 1100 watts
• Class D 1 ohm Stable 5-Channel Amplifier

(2)

$259.00

List price $259.00

RD800/6 small

JL Audio RD800/6

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 400 watts x 1 channel @ 4 ohm
• Total RMS Power: 800 watts
• Class D 2 ohm Stable 6-Channel Amplifier

(1)

$549.99

List price $779.98

X803-5 small

Kenwood eXcelon X803-5

• 50 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 75 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 150 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 800 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(5)

$499.99

List price $600.00

LC-5.1300 small

AudioControl LC-5.1300

• 100 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 200 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1300 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(2)

$660.00

List price $1369.00

XQA16005 small

NVX XQA16005

• 125 watts x 4 channel + 300W x1 @ 4 ohm
• 200 watts x 4 channel + 500W x 1 @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm + 800W @ 1 ohm
• Total RMS Power: 1600 watts
• Class D 1 ohm Stable 5-Channel Amplifier

(2)

$449.99

List price $719.99

GM-DX975 small

Pioneer GM-DX975

• 75 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 100 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(2)

$549.99

List price $650.00

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
60 watts x 4 channel
RMS Power @ 2 ohms
90 watts x 4 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
250 watts x 1 channel
RMS Power @ 2 ohms
400 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
5-Channel
Total RMS Power Output
760 watts
Maximum Input Gauge Size
2 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 40000 Hz
Low-Pass Crossover Frequency
50 - 200 Hz
Subsonic Filter
10 - 40 Hz
Signal-to-Noise Ratio
80.1 dB
Bass Boost
6 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
35A x 2
Total Fuse Rating
70
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier
Wired gain knob (wire attached)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

RX2750.5

Weight:

6.75lbs

Internal SKU:

rx27505

Internal Product ID:

165307
