Kenwood KAC-M1814

180W RMS KAC Series Class-D 4-Channel Marine Amplifier

Kenwood
Shop all Kenwood
Product videos
highlight-star-icon

• 45 watts x 4 channel @ 4 ohms
• 45 watts x 4 channel @ 2 ohms
• Bridged: 90 watts x 2 channel @ 4 ohms
• Total RMS Power: 180 watts
• Class D 2 ohms Stable 4-Channel Amplifier

Learn more about the kacm1814
Was $200.00 Details
Thanks , You Pay:

$169.00

 with warranty

Heads up

We confirm fitment and offer accessories for speakers. Please set your vehicle first if you would like to purchase more than one kacm1814.

Set your vehicle or Return to product page
shipping truck icon Free shipping in USA. Provide zip for delivery date.
Dollar Icon
VIP Product Get $16.90 in rewards to spend later
Quantity
In Stock
Brand new

Buy it now


Acima Logo

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Allstate logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires.

  • Mechanical, electrical and product failure covered! 100% parts and labor covered. (Coverage starts after Mfr. warranty)
  • Easy online management! Zero hassle claim service, available 24/7
Swoosh Icon Icon of Swoosh

For over 24 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

Award winning icon
Award-Winning Service
Shipping icon
FREE Shipping Orders $49+
60 days return policy icon
60-Day Easy Returns
lowest price guarantee icon
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Product Highlights


• 45 watts x 4 channel @ 4 ohms
• 45 watts x 4 channel @ 2 ohms
• Bridged: 90 watts x 2 channel @ 4 ohms
• Total RMS Power: 180 watts
• Class D 2 ohms Stable 4-Channel Amplifier

Description


Kenwood brand icon

Authorized dealer

Product Details:

  • KAC Series Class D 2 ohms Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 45 watts x 4 channel
    • 2 ohms: 45 watts x 4 channel
    • Bridged: 90 watts x 2 channel @ 4 ohms
  • Total power output: 180 watts
  • LED Power/Protect Light
  • Speaker-level (high-level) inputs
  • 1 pair of pre-amp outputs
  • Signal sensing remote turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • CTA-2006 compliant
  • Conformal-coated circuit board
  • Input sensitivity: 0.2 - 5 volts
  • Frequency Response: 20 - 20000 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 90 dB
  • Variable high-pass filter: 50 - 200 Hz
  • Variable low-pass filter: 50 - 200 Hz
  • Variable Bass Boost: 0 - 12 dB
  • Fuse Rating: 15A
  • 12 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 8-5/8" L x 3-15/16" W x 1-13/16" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: KAC-M1814

PDF IconKenwood KACM1814 owner’s manual

Specifications & Details


Key Features
Amplifier Key Features
Bass Boost
Speaker Level Inputs
Weather-Resistant
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
45 watts x 4 channel
RMS Power @ 2 ohms
45 watts x 4 channel
Bridged RMS Power
90 watts x 2 channel
Amplifier Specifications
Series
KAC Series
Amplifier Class
D
Number of Channels
4-Channel
Total RMS Power Output
180 watts
Maximum Input Gauge Size
12 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
Frequency Response
20 - 20000 Hz
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 200 Hz
Low-Pass Crossover Frequency
50 - 200 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
15A x 1
Total Fuse Rating
15
Sonic Certified Amplifier
Not Tested
Low-Level Input Sensitivity
0.2 - 5 volts
High-Level Input Sensitivity
0.2 - 5 volts
What is in the box?
Paperwork
User manual
Warranty/Registration card
Quick start guide
WITB: Amplifiers
Amplifier
Mounting screws (4)
One spare fuse
High-level input wiring harness w/ molex connector
Allen wrenches (2)
Other Accessory #1
Two 14" Zip Ties
Other Accessory #2
Two 4" Zip Ties
Other Accessory #3
2 Sets of clear self-adhesive control covers
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

KAC-M1814

Weight:

8.00lbs

Internal SKU:

kacm1814

Internal Product ID:

169891

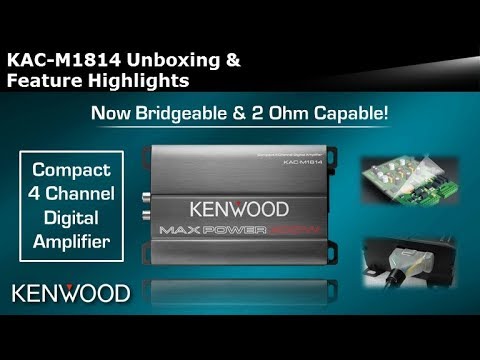

Product and How-to Videos
