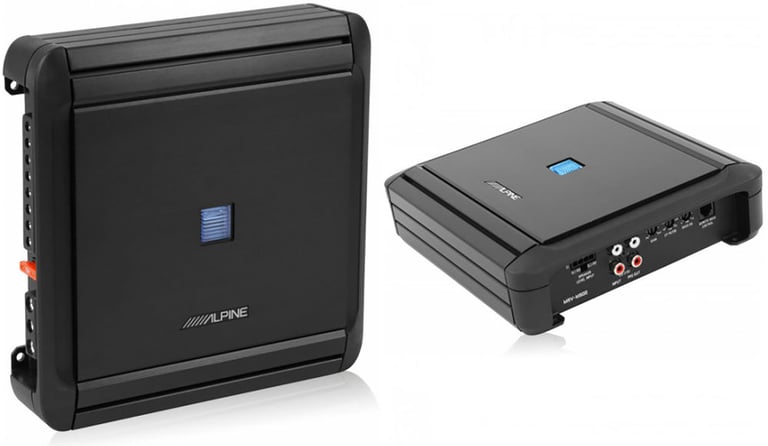

Alpine MRV-F300 4-Channel Amplifier + MRVM500 Monoblock Amplifier

Class D V-Power Series Compact Car Amplifiers

Alpine
Shop all Alpine
highlight-star-icon

• RMS Power: 50W x 4-Chan. @ 4 ohms, 75W x 4-Chan. @ 2 ohms
• 3-Way System Protection
• 4/3/2/1 Channel Operation
• 8 Gauge Power and Ground Inputs
• Same Power in a 40% Smaller Chassis

Learn more about the mrvf300_mrvm500

We apologize

This item has been discontinued

Description


Alpine

Authorized dealer

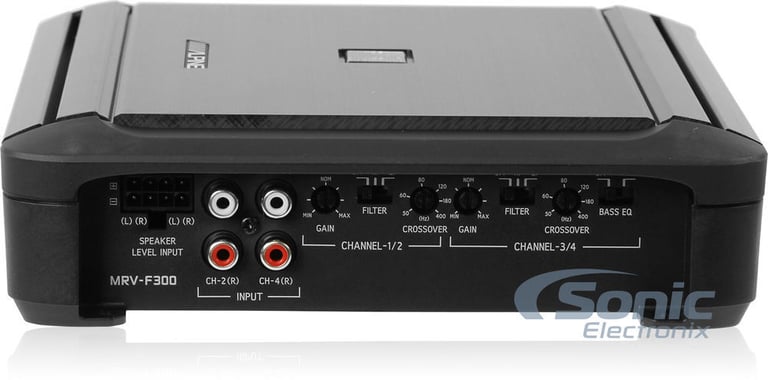

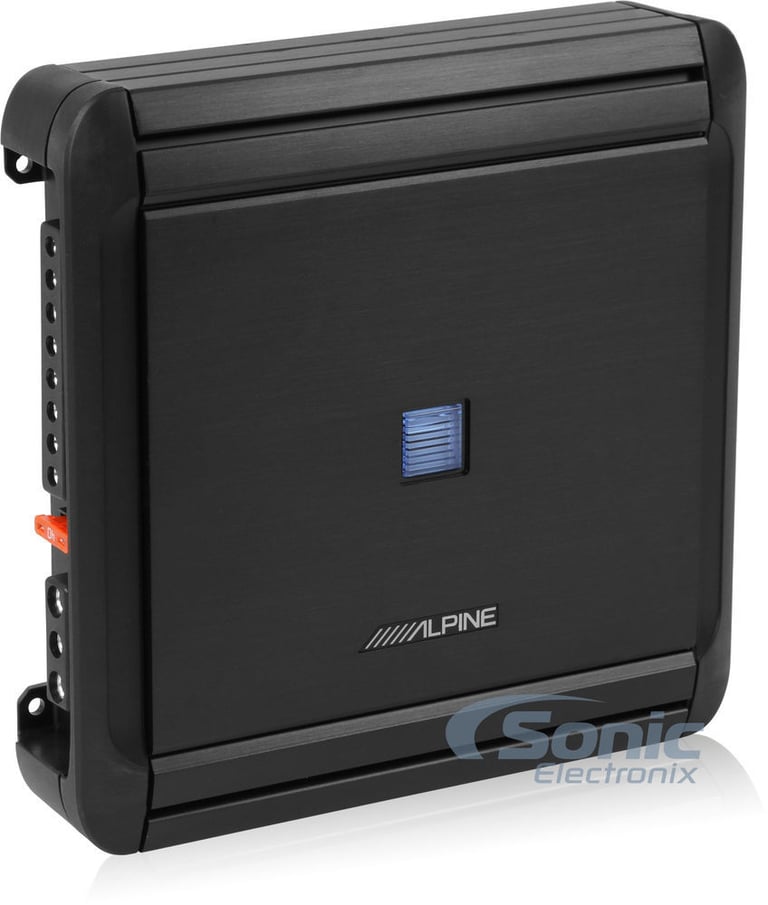

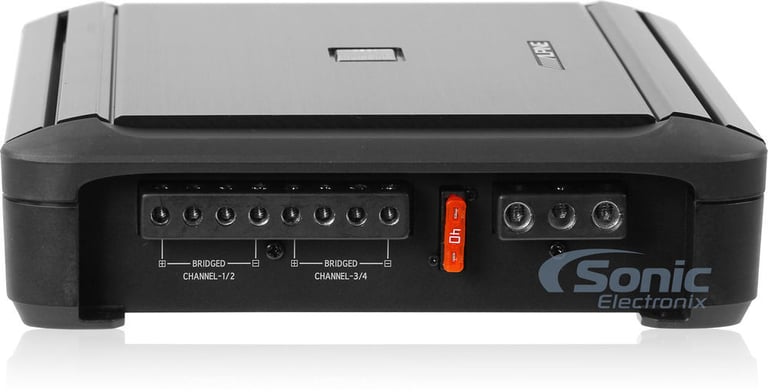

Alpine MRV-F300

300W 4-Channel Class D V-Power Series Compact Car Amplifier
Quantity: 1

General Features:

  • V-Power Series 4-Channel Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 50 watts x 4 chan.
    • 2 ohms: 75 watts x 4 chan.
    • Bridged, 4 ohms: 150 watts x 2 chan.
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Selectable Bass Boost (0 or +12 dB bass boost at 50 Hz)
  • Soft start turn-on
  • 4/3/2 or Mono channel operation
  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity:
    • Low level: 200mV-4V
    • High level: 500mV-10V
  • Variable high-pass filter (50-400 Hz, 12 dB/octave)
  • Variable low-pass filter (50-400 Hz, 24 dB/octave)
  • CEA-2006 compliant amplifier
  • 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 7-7/8"W x 7-7/8"L x 2-3/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

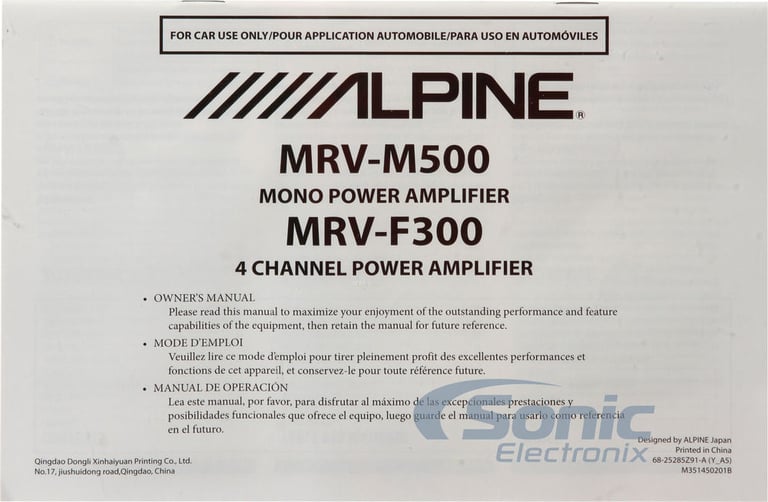

Check out the Alpine MRV-F300 Owner's Manual

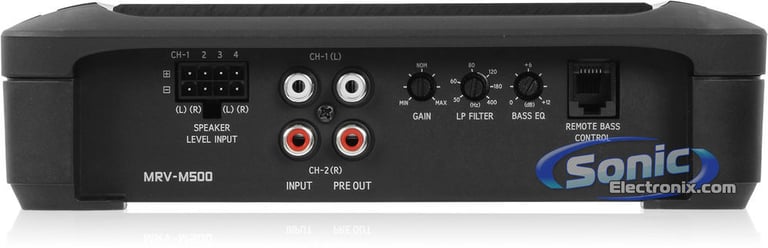

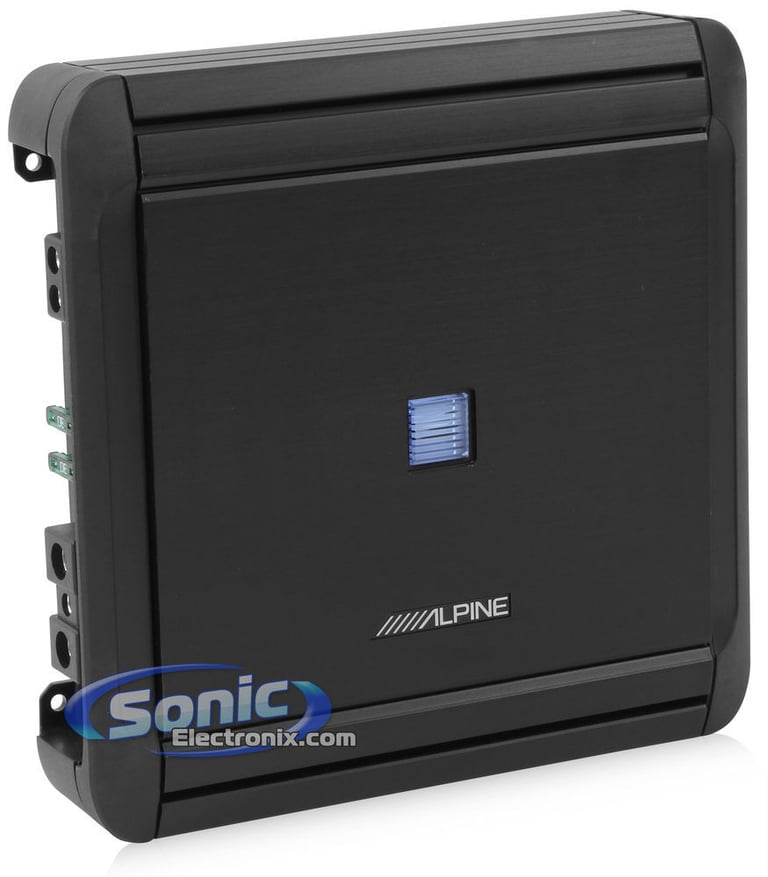

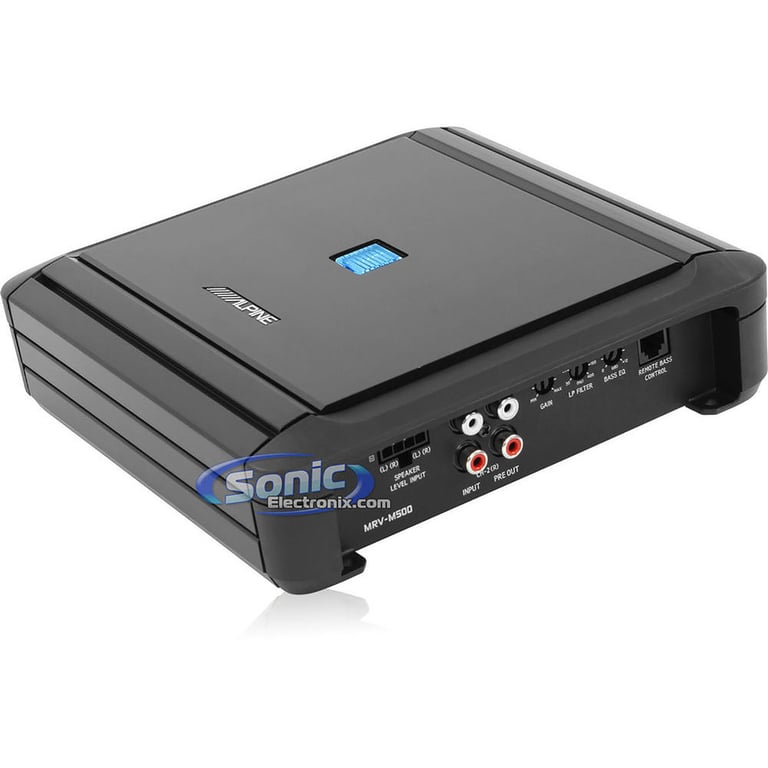

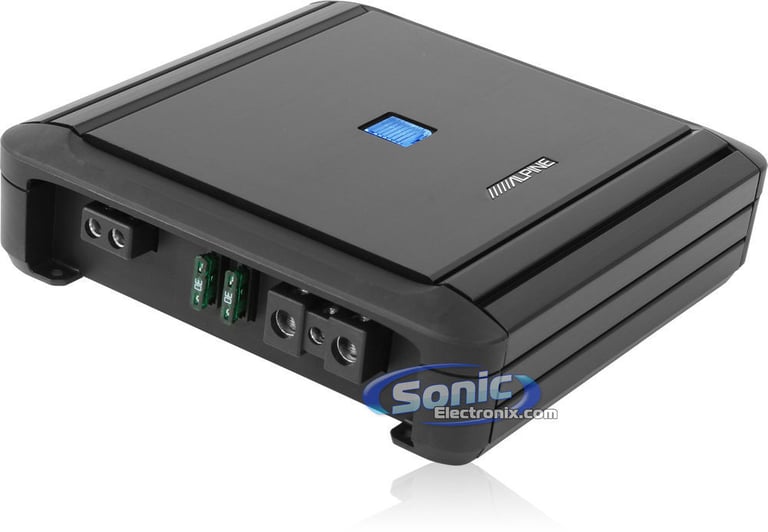

Alpine MRV-M500

1100W Peak (500W RMS) V-Power Series Class D Monoblock Amplifier
Quantity: 1

Product Details:

  • V Power Series Class D 2 ohms Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohms: 300 watts x 1 channel
    • 2 ohms: 500 watts x 1 channel
  • Total RMS power output: 500 watts
  • LED Power/Protect Light
  • Wired bass level remote control with optional Alpine RUX-KNOB.2
  • Speaker-level (high-level) inputs
  • 1 pair of pre-amp outputs
  • Signal sensing remote turn-on
  • 4-way protection circuitry (Over-Current, Over-Voltage, Under-Voltage, and Thermal Protection)
  • Input sensitivity:
    • Low level: .15 - 4 volts
    • High level: .4 - 10 volts
  • Frequency Response: 7 - 400 Hz
  • Total Harmonic Distortion (THD): .3%
  • Signal to Noise Ratio: 85 dB
  • Variable low-pass filter: 50 - 400 Hz
  • Variable Bass Boost: 0 - 12 dB
  • Fuse Rating: 60
  • 4 AWG gauge amplifier wiring kit is recommended for installation.
  • Dimensions: 7-7/8" L x 7-7/8" W x 2-3/16" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: MRV-M500
Check out the Alpine MRV-M500 Owner's Manual

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 4 channel
RMS Power @ 2 ohms
75 watts x 4 channel
Bridged RMS Power
150 watts x 2 channel
Amplifier Specifications
Series
V Power Series
Amplifier Class
D
Number of Channels
4-Channel
Total RMS Power Output
300 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.03%
Speaker Level Inputs
Yes
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 400 Hz
Low-Pass Crossover Frequency
50 - 400 Hz
Signal-to-Noise Ratio
98 dB
Bass Boost
Selectable 0/+12 dB
Remote bass/level controller
No
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier
Wired gain knob (wire attached)
Mounting screws (4)

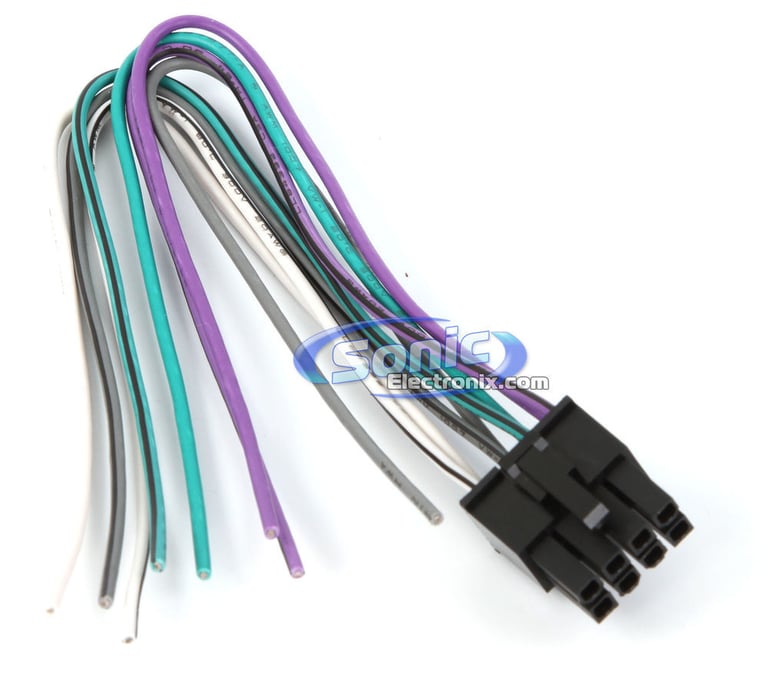

High-level input wiring harness w/ molex connector
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

MRV-M500,MRV-F300

Weight:

12.07lbs

Internal SKU:

mrvf300_mrvm500

Internal Product ID:

177491

Customer Ratings & Reviews



5 star
90%
4 star
10%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
4.9
Features
4.9
Design
4.9
Usability
4.9

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Really good

The following review is for MRV-M500, which is a part of the bundle you are viewing.

Have this amp connected to my Dodge factory head unit using high level output connected to 2- 12inch pioneer champion series at 300 RMS 4ohm. unbelievable quality and sound. Once you tune your subwoofer and amp to specs you wil have no problem. more that enough bass needed, Great amp!!

By Ricky on July 29, 2014

71

found this helpful.

Alpine MRV-M500

The following review is for MRV-M500, which is a part of the bundle you are viewing.

My buddy had 1 of these running to pioneer 10s and it sound great Hit pretty hard great amp over all.Probably does a little more then rated 550/600 maybe.Very clean looking amp sturdy feeling and great clean sound

By josh on March 17, 2014

67

found this helpful.

The perfect amp for my needs!

The following review is for MRV-M500, which is a part of the bundle you are viewing.

This little amp puts out just the right amount of power for my system. I mounted it behind an internal side panel so that it would be out of sight, and it fit perfectly. I haven't had any problems with it what so ever, and it really brought good sounding base to my sub woofer. I would definitely recommend this amp to my friends.

By Gregar on January 14, 2015

63

found this helpful.

Big power with little space

The following review is for MRV-M500, which is a part of the bundle you are viewing.

Not a bad little amp. I run 2 kenwood 12's @ 2 ohm with this amp and I love every minute of it. I am sometimes tempted to turn the gain down but it runs so clean I never do.

By Drum4life on April 8, 2014

54

found this helpful.

Beautiful

The following review is for MRV-M500, which is a part of the bundle you are viewing.

I just bought this amp, I upgraded from a power acoustic 870 watt 4 channel, and its powering 2 12 inch audiobahns, and it's amazing! It is definitely worth the money. I would recommend this to anyone

By Adam on February 23, 2014

50

found this helpful.

Great sound, great value

The following review is for MRV-F300, which is a part of the bundle you are viewing.

I was struggling with amp choice for my Mini Cooper sound system upgrade. So many choices and nearly impossible to know how they sound like without install that amp into YOUR car to drive the speakers YOU have. So this review is based on R56 Mini Cooper with JL Audio C2-600 components and C2-690CX.

Installation of Alpine MRV-F300 was a breeze due to its well designed interface and physical size. I mounted it vertically behind side panel onto a 1/4" MDF in truck area and still able to access to all the control on the side. Owner's manual was well designed and can be easily download onto iPad to use as reference. All connectors feels solid once cables are in.

Now come to the sound. I was blown away when I first turn it on. For $200 it was clean and surprisingly warmish with great detail. No significant flaw and nothing harsh on high/mid, vocal is balanced with good stage image (I have 'sit' right in the middle between front seats), bass on another hand having been coloured, which made Bass sound massive, cello sound like bass before I had to readjust the crossover/gain for both front and back. This could be the speakers too. Since I'm using speaker level input so I set front gain to just below 9'o clock position, rear 6x9s gets minim gain. Front channel on full range and rear has low pass with crossover set to 80hz. This allows me to get well balanced full range without overwhelming bass.

I'm very happy with my choice, only thing I wish better is bass for control and less colouring, but this maybe the deal with most car amps on the market. I'm an audiophile when it comes to home stereo, this entire upgrade to my Mini Cooper sound system (speakers, amp and sound deadening) is cheaper then an interconnect cable I use on the phono preamp, but I can now listen to it for hours and enjoy.

Test CDs:
1. Diabolus in Musica . Accardo interpreta Paganini
2. Burmester Reference CD III
3. Dynaudio Accentuations Guitar Impressions
4. The Famous Sound FIM
5. In Admiration Of Music, Dali CD Vol. 1
6. Lakatos - Roby Lakatos and His Ensemble
7. Earfood, Roy Hargrove Quintet
8. Audio Reference III - The Super Extended Resolution Sound Of TBM

By Steven on January 26, 2014

47

found this helpful.

Great amp

The following review is for MRV-M500, which is a part of the bundle you are viewing.

Good clean power this little amplifier can push a pair of rockford fosgates hard I definitely recommend it.

By Anonymous on August 12, 2019 checkmarkIcon Verified purchase

37

found this helpful.

Great Amp

The following review is for MRV-M500, which is a part of the bundle you are viewing.

Powerful small amp. I brought this amp to pair with a 10" Sundown Audio woofer in a 2012 Fors Mustang and it sounds great.

By Prince on July 22, 2019 checkmarkIcon Verified purchase

36

found this helpful.

Solid sound

The following review is for MRV-M500, which is a part of the bundle you are viewing.

Good amp. Not alot of power but it is a work horse

By Anonymous on August 31, 2019 checkmarkIcon Verified purchase

37

found this helpful.

Tiny Monster

The following review is for MRV-M500, which is a part of the bundle you are viewing.

Finally replaced my m500 after 7 years of 500rms. These things are durable, dependable little beasts and underrated. Excellent value.

By Anonymous on August 12, 2019

36

found this helpful.
