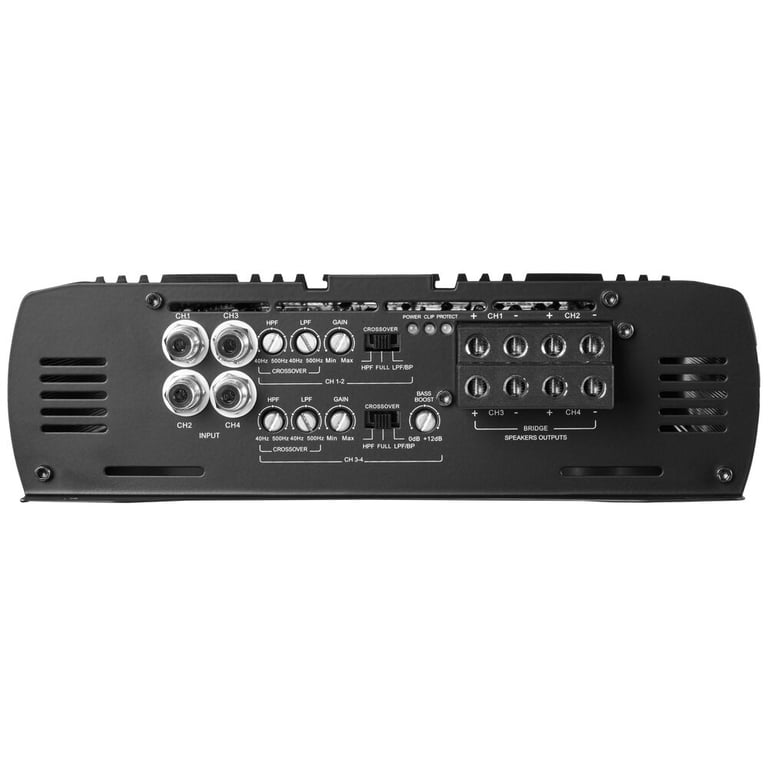

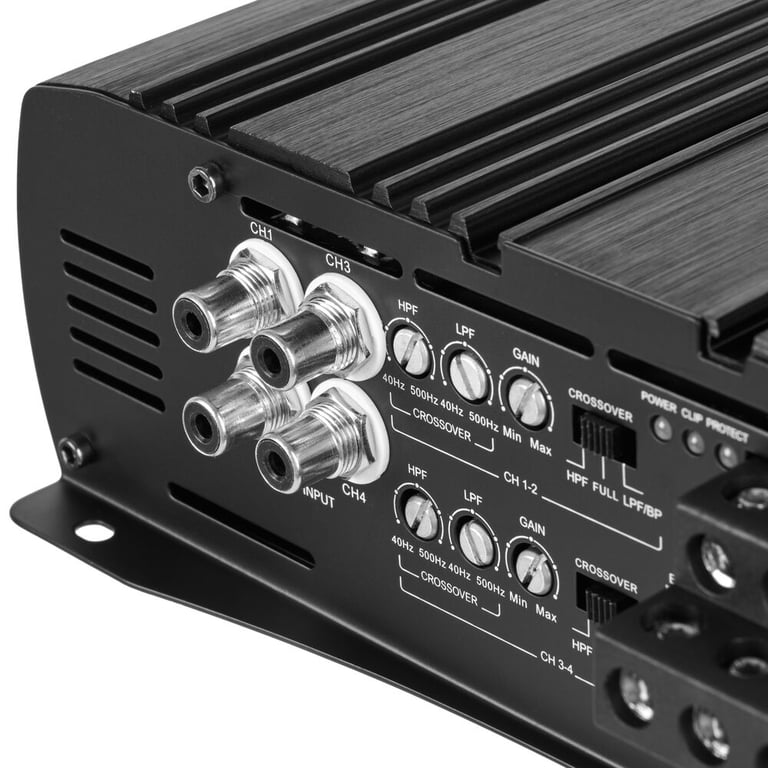

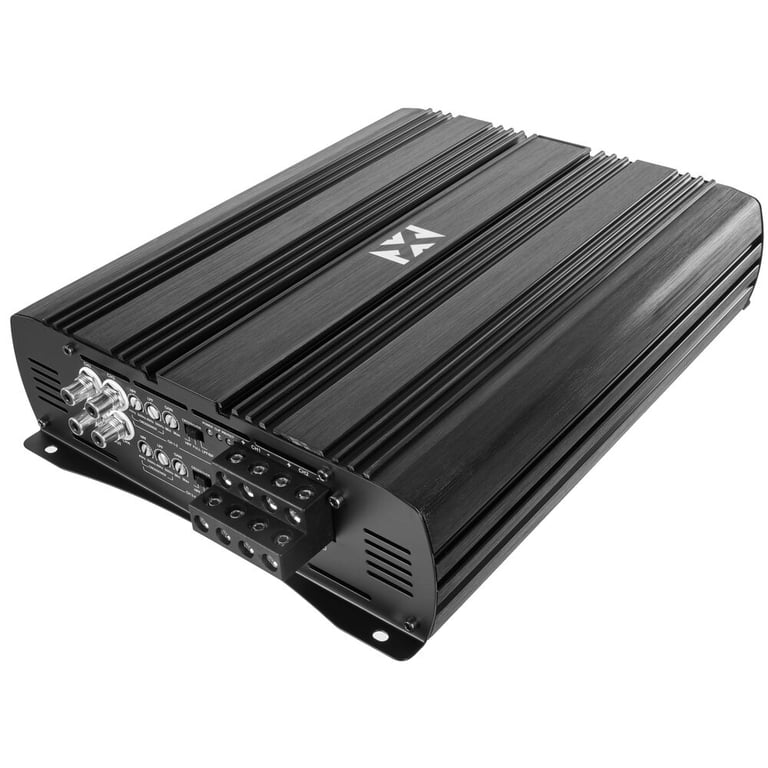

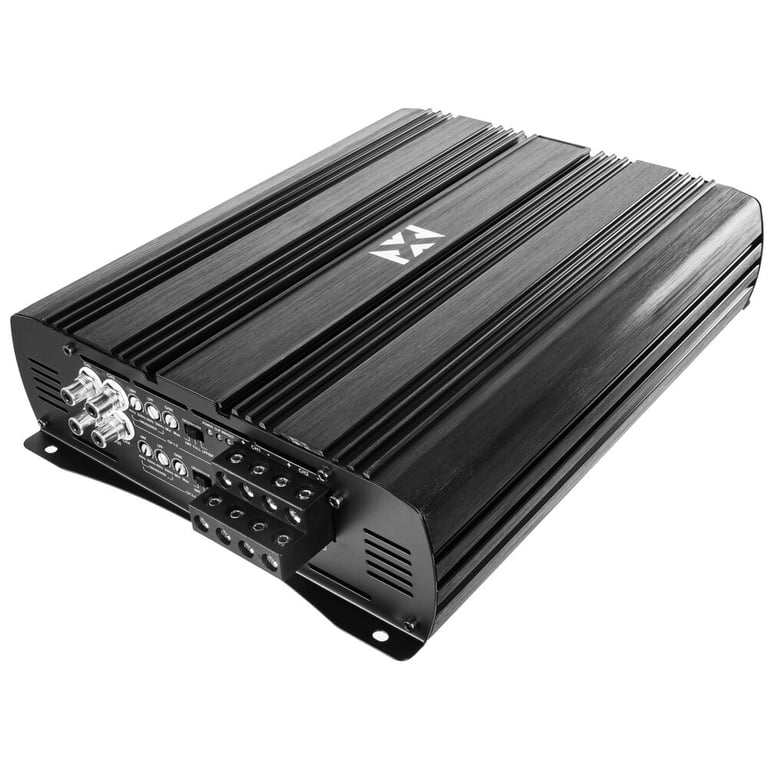

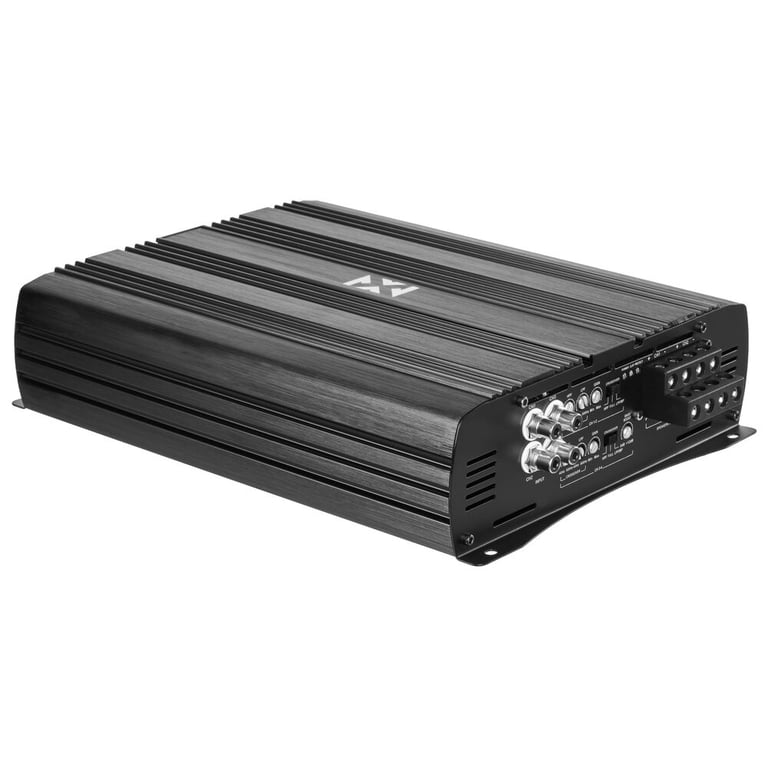

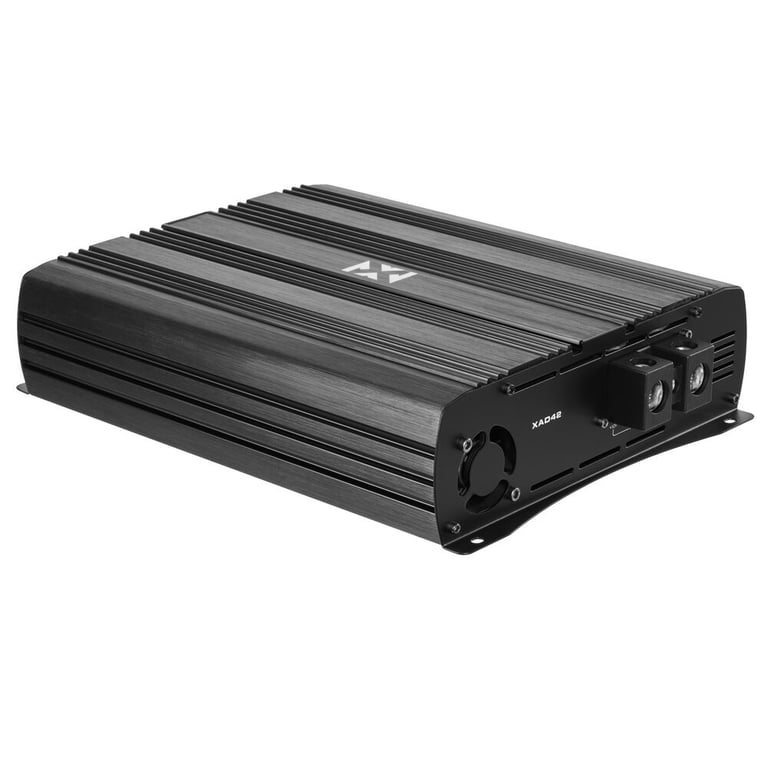

NVX XAD42

3200W RMS X-Series Full-Bridge Class D 1-Ohm Stable 4-Channel Amplifier

NVX
Shop all NVX
Product videos
highlight-star-icon

• 350 watts x 4 channel Watts RMS x 1 @ 4 ohm
• 400 watts x 4 channel Watts RMS x 1 @ 2 ohm
• 800 watts x 4 channel Watts RMS x 1 @ 1 ohm
• Total RMS Power: 3200 watts
• CEA-2006 Compliant

Learn more about the xad42

We apologize

This item has been discontinued


Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

CAR714MW main

Jensen CAR714MW

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto (SiriusXM Ready)

1

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Product Highlights


• 350 watts x 4 channel Watts RMS x 1 @ 4 ohm
• 400 watts x 4 channel Watts RMS x 1 @ 2 ohm
• 800 watts x 4 channel Watts RMS x 1 @ 1 ohm
• Total RMS Power: 3200 watts
• CEA-2006 Compliant

Description


NVX brand icon

Authorized dealer

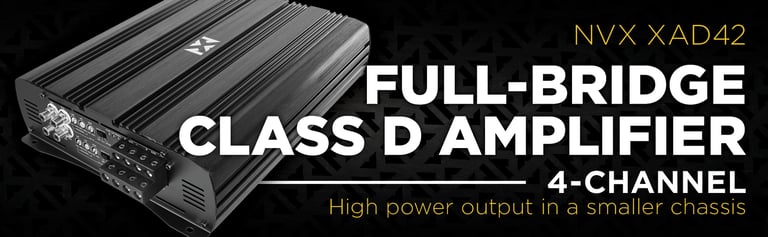

4 Channel Class D Amplifier

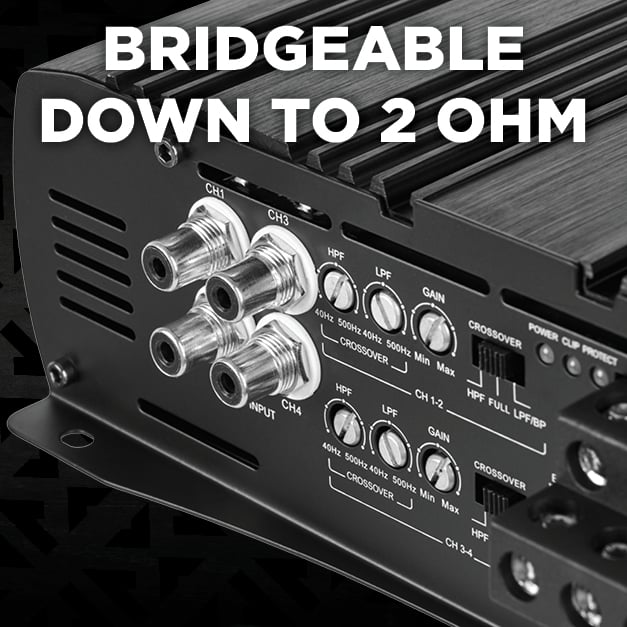

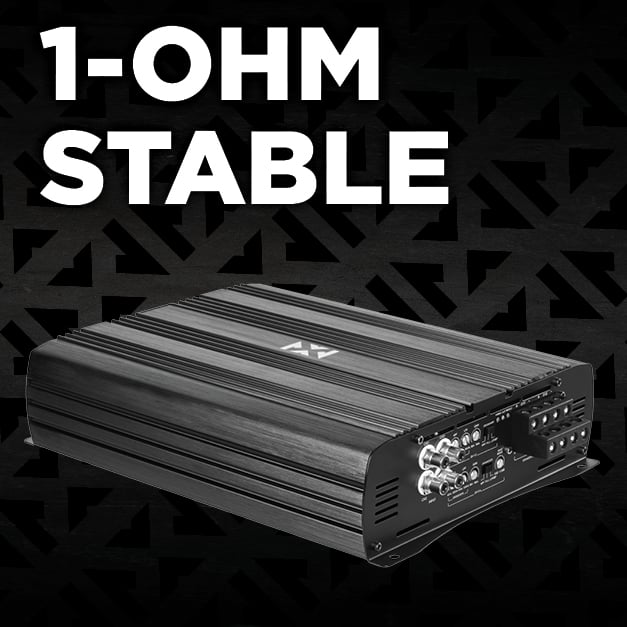

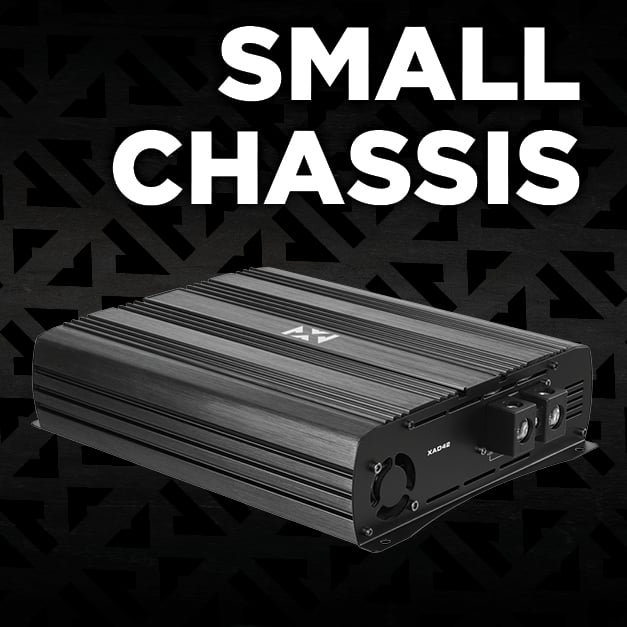

1 Ohm Stable Bridgeable Down To 2 Ohm Small Chassis

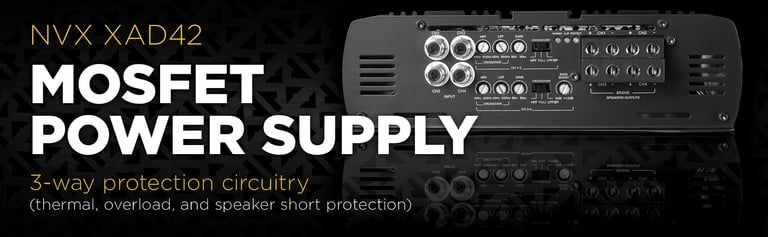

Mosfet Power Supply

Product Details:

  • NVX X Series Series XAD42
  • Class D 1 ohm 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 350 watts x 4 channel
    • 2 ohm: 400 watts x 4 channel
    • 1 ohm: 800 watts x 4 channel
    • Bridged, 4 ohm: 800 watts x 2 channel
    • Bridged, 2 ohm: 1600 watts x 2 channels
  • Total power output: 3200 watts
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply

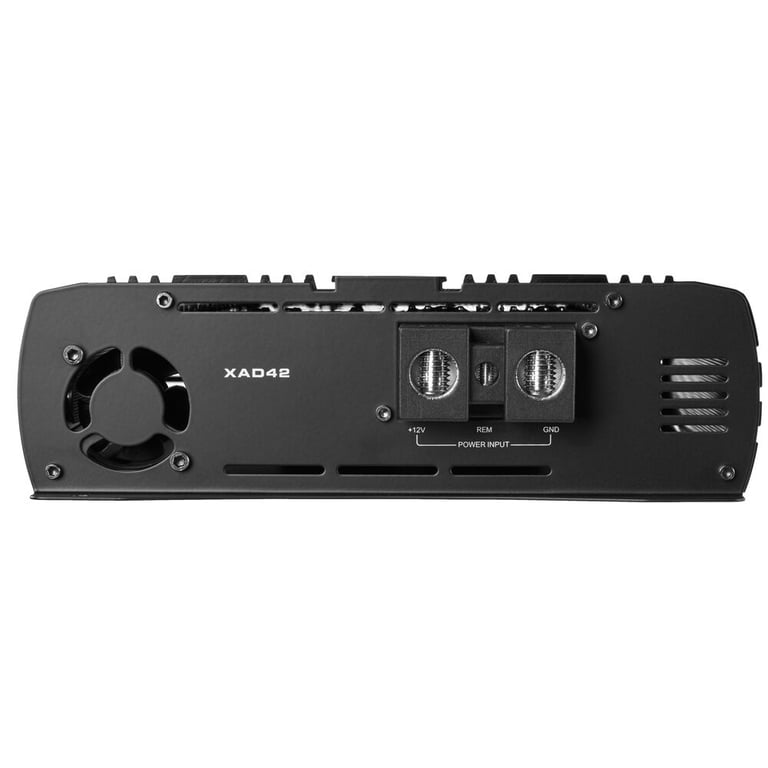

  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Input sensitivity: 200mV
  • Frequency Response: 10Hz - 20kHz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 100 dB
  • Variable high-pass filter: 40 - 500 Hz, 24 dB/octave
  • Variable low-pass filter: 40 - 500 Hz, 24 dB/octave
  • Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
  • 1/0 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 10.5"W x 8.75"L x 2.5"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
pdf icon Check out the NVX X-Series 4-Channel Amplifiers Owner's Manual

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

AVH-2550NEX main

Pioneer AVH-2550NEX

6.8" Double DIN Touchscreen DVD Receiver with Bluetooth, Apple CarPlay, and Android Auto (SiriusXM Ready)

-13.33%

$650.00

List price $750.00


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Key Features
Amplifier Key Features
Bass Boost
Fan Cooled
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
350 watts x 4 channel
RMS Power @ 2 ohms
400 watts x 4 channel
RMS Power @ 1 ohm
800 watts x 4 channel
Bridged RMS Power
800 watts x 2 channel
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
700 watts x 4 channel
Peak Power @ 2 ohms
800 watts x 4 channel
Peak Power @ 1 ohm
1600 watts x 4 channel
Bridged Peak/Max Power
1600 watts x 2 channel
Amplifier Specifications
Series
X Series
Amplifier Class
D
Number of Channels
4-Channel
Total Peak Power Output
6400 watts
Total RMS Power Output
3200 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
2 ohms
THD at Rated RMS Power
1%
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
40 - 500 Hz
Low-Pass Crossover Frequency
40 - 500 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Amplifiers
Amplifier
Wired gain knob (wire separate)
Gain knob wire
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

XAD42

Weight:

14.00lbs

Internal SKU:

xad42

Internal Product ID:

183715
