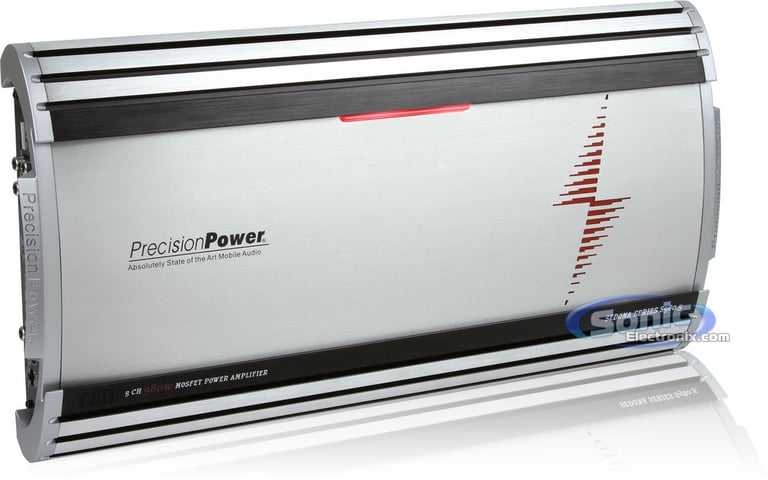

Precision Power PPI S580.5

580W Max, Sedona Series 5-Channel Amplifier

Product videos
highlight-star-icon

• 580W Max
• 190W x 4-Chan @ 2 Ohm + 260W x 1 Chan.
• 120W x 4-Chan @ 4 Ohm + 160W x 1 Chan
• IDI Intelligent Distress Indicator
• Tri-Mode Capable
• Soft Start Turn-On
• Platinum-Plated Terminals

Learn more about the s5805

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

Product Highlights


• 580W Max
• 190W x 4-Chan @ 2 Ohm + 260W x 1 Chan.
• 120W x 4-Chan @ 4 Ohm + 160W x 1 Chan
• IDI Intelligent Distress Indicator
• Tri-Mode Capable
• Soft Start Turn-On
• Platinum-Plated Terminals

Description


Precision Power brand icon

Authorized dealer

  • Sedona Series 5-Channel Class A/B Amplifier
  • RMS Power Rating:
    • 4 ohm: 60 watts x 4 chan. + 160 watts x 1 chan.
    • 2 ohm: 80 watts x 4 chan. + 260 watts x 1 chan.
    • Bridged, 4 ohm: 380 watts x 2 chan.
  • Max power output: 580 watts
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Selectable bass boost (0, 6, 12 dB at 50 Hz)
  • Soft Start Turn-on
  • Tri-mode capable
  • 5/4/3/2 Channel operation
  • Speaker-level inputs with signal sensing for automatic turn-on
  • IDI Intelligent Distress Indicator
  • 3-Way System Protection circuitry (thermal, impedance, and speaker short protection)
  • Heavy duty brushed aluminum alloy heatsink for maximum heat dissipation
  • Platinum-plated RCA level inputs
  • Platinum-plated screw terminals
  • Input sensitivity:
    • Level: 200mV-6V
  • Variable high-pass filter (15-4,000 Hz, 12 dB/octave)
  • Variable low-pass filter (50-4,000 Hz, 12 dB/octave)
  • Phase Switch: 180 Degrees
  • Damping factor: >181
  • Stereo Separation: 47 dB
  • Frequency response: 10-39,000 Hz
  • Dimensions: 19-1/8"L x 9-1/2"W x 2-3/8"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Best selling similar products

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(46)

$349.99

List price $419.99

VAD22008v2 small

NVX VAD22008 v2 (VAD22008v2)

• 150 watts x 6 channel + 250 watts x 2 channels @ 4 ohm
• 225 watts x 6 channel + 400 watts x 2 channels @ 2 ohm
• Bridged: 450 watts x 3 channel + 850 watts x 1 channel @ 4 ohm
• Total RMS Power: 2200 watts
• Class D 2 ohm Stable 8-Channel Amplifier

(2)

$399.99

List price $539.99

NDA11005 small

NVX NDA11005

• 100 watts x 4 channel + 315 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(9)

$259.99

List price $323.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
55 watts x 4 channel
RMS Power @ 2 ohms
80 watts x 4 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
160 watts x 1 channel
RMS Power @ 2 ohms
260 watts x 1 channel
Amplifier Specifications
Series
Sedona Series
Amplifier Class
A/B
Number of Channels
5-Channel
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.03%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
15 - 4000 Hz
Low-Pass Crossover Frequency
50 - 4000 Hz
Subsonic Filter
0 - 35 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0dB, 6dB, 12dB
Remote bass/level controller
No
Fuse Rating
35A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

S580.5

Weight:

15.00lbs

Internal SKU:

s5805

Internal Product ID:

24210

Product and How-to Videos


Customer Ratings & Reviews


Precision Power PPI S580.5 thumbnail image

5 star
60%
4 star
20%
3 star
20%
2 star
0%
1 star
0%



Durability
4.4
Value
4.6
Features
4.6
Design
4.4
Usability
3.8

Customer Reviews

Sort by:

Loading...

love it

I was having the hardest time deciding what amp and how many and then I saw this one. Price and what I wanted were perfect. I have two 10" jlw1v2-8 and two 8" for my mids and plus my highs. This amp is,perfect.

By david on September 1, 2012

46 found this helpful


Great value

I picked this unit because it had great reviews and it seemed to be really nicely priced for a 5.1 amp. Upgraded my front and rear speakers in my truck and added a sub. Works, doesn't get hot and sounds great!

By HD on July 28, 2013

22 found this helpful


PPI S580.5 Review

This is not a bad amp. However not as clean as i would expect from PPI which used to be a major player in the High end car audio market. Now they share almost identical platforms as their parent company sound stream. The x-over points indications are horribly marked making it difficult to select so you need to tune by ear. Pros: I prefer the screw type terminal strips, so this was a bonus for me. The price is another pro. Cons:The product manual is useless. It could use a bit more power. It would be if it was an AB/D amp, but you get what you pay for.

By Roadzter on May 12, 2012

22 found this helpful


Precision Power PPI S580.5

There is simply no better 5ch amp on the market for the money. I built my system for me e30 with this amp and no one can believe it's a 200 dollar amp. It would be nice if it had an adjustable remote sub controller but my Alpine has one that is easy to get to. Not a lot of info in the owners manual.

By Harv on October 27, 2010

22 found this helpful


great amp

I love this amp. It does everything I want. On the single channel I am pushing two 10" jl audio w1v2-8. Plus my hi's and mid's. Doesn't over heat at all.

By david on December 17, 2012

20 found this helpful
