Volfenhag ZX-4720

10" Dual 4 ohm ZX Series Car Subwoofer

Volfenhag
Shop all Volfenhag
Product videos
highlight-star-icon

10" High Power Subwoofer • 1000 Watts Max • 300 Watts RMS • Dual 4 ohm • Red Aluminum Cone • Rubber Surround • Gold Plated Screw Terminals • Dual Voice Coils • Double Magnet Structure

Learn more about the zx4720

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
BRV-S40C main

Alpine BRV-S40C

240W Peak (80W RMS) 4" BassRev Series 2-Way 4-ohm Component Speaker System

-33.35%

$239.95

List price $360.00

Product Highlights


10" High Power Subwoofer • 1000 Watts Max • 300 Watts RMS • Dual 4 ohm • Red Aluminum Cone • Rubber Surround • Gold Plated Screw Terminals • Dual Voice Coils • Double Magnet Structure

Description


Volfenhag brand icon

Authorized dealer

  • 10" Dual 4 ohm High Power Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 300 watts
  • Impedance: Dual 4 ohm
  • Red aluminum cone
  • Rubber surround

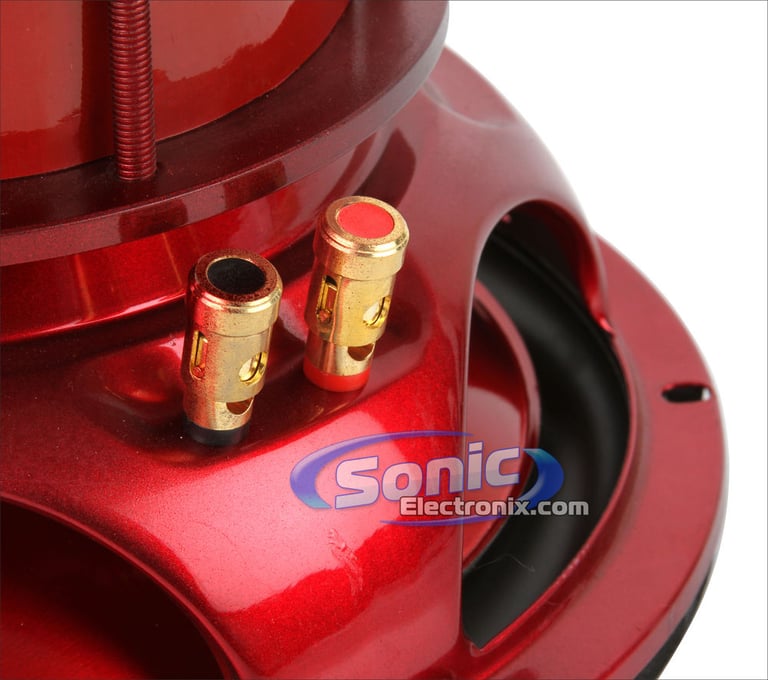

  • Gold plated screw terminals
  • Dual voice coils
  • Double magnet structure
  • Shining red basket
  • Sensitivity: 85 dB
  • Impedance: 4 ohm
  • Mounting Depth: 5-3/8
  • Cutout Diameter: 9-1/4"
  • 1-year SonicElectronix.com warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Volfenhag ZX-4720 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Volfenhag ZX-4720 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Volfenhag ZX-4720 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Volfenhag ZX-4720 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
AVH-3500NEX main

Pioneer AVH-3500NEX

7" Single DIN Flip-Out Touchscreen CD/DVD Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

9
-10.75%

$829.99

List price $930.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

28
-17.08%

$199.00

List price $240.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

35
-9.99%

$90.00

List price $99.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(89)

$139.99

List price $139.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(15)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
1000 watts
RMS Power Handling
300 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
85 dB
Xmax (millimeters)
8 mm
Subwoofer Design
Round / Circle
Main Cone Color
Red
Woofer Composition
Aluminum
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No

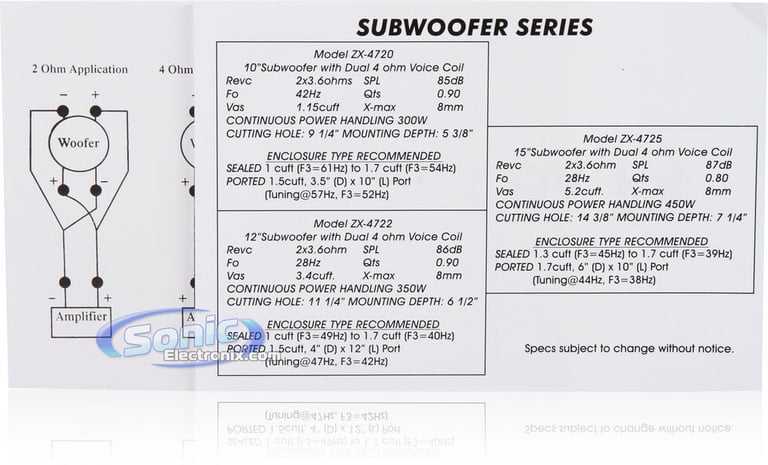

Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1 cubic feet
Maximum Sealed Box Volume
1.7 cubic feet
Minimum Ported Box Volume
1.5 cubic feet
Top-Mount Depth (Mounting Depth)
5-3/8"
Cutout Diameter
9-1/4"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ZX-4720

Weight:

14.00lbs

Internal SKU:

zx4720

Internal Product ID:

28295

Product and How-to Videos


Customer Ratings & Reviews


Volfenhag ZX-4720 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.7
Value
5
Features
4.7
Design
4.4
Usability
5

Customer Reviews

Sort by:

Loading...

Amazing sub

This brand has been amazing for my family and all there different road

By Anonymous on August 24, 2018


Get them! ...if you can find them.

I'm not being overly kind to these speakers. They do deserve a 5 star rating all around. I have owned the 12" version of these subs since Feb. 2003.

Value: For the price and having DVC's, they can't be beat.

Look & Design: Come on! They are *awesome*.

Durability: poked a 3/8" hole in one of them several years ago. That particular speaker has not gotten worse, it is a *thick* aluminum. That speaker also does not whistle or flutter at all, it's like the hole isn't even there.

Features: Dual Voice Coils at this price?

Ease of use: Well, it's a speaker like any other. No harder or easier to use.


I had run these on my old MTX Thunder 225HO pushine then to their rated wattage limit at all times, and exceeding RMS power at 1/3 volume, they took every bit of the power. They are now on a cheap Circuit City 250w amplifier and are still loud and powerful even being wired at 4ohms. I honestly thought the little 250w amp wouldn't be able to push them. ...been on that amp 3 years now and I listen to a lot of Drum and Bass and Dubstep.

...bottom line, aside from JL Audio's W & T series subs, these are the only speakers I'd recommend. the price to performance value is insane! If you can find a pair, do not hesitate to pick them up.

By TonyZ on February 12, 2016


Not Bad

Used to never mess with any generic brands such as these. But after testing out a pair on these in a sealed box, I was very easily impressed. Loud car shaking. With only a 280 watt generic amp too.

By Dickies on October 16, 2010
