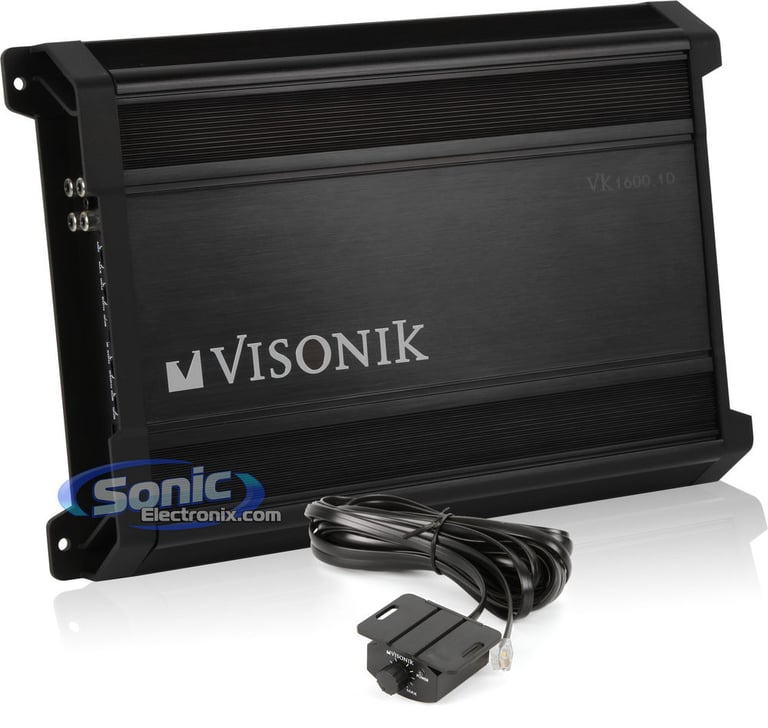

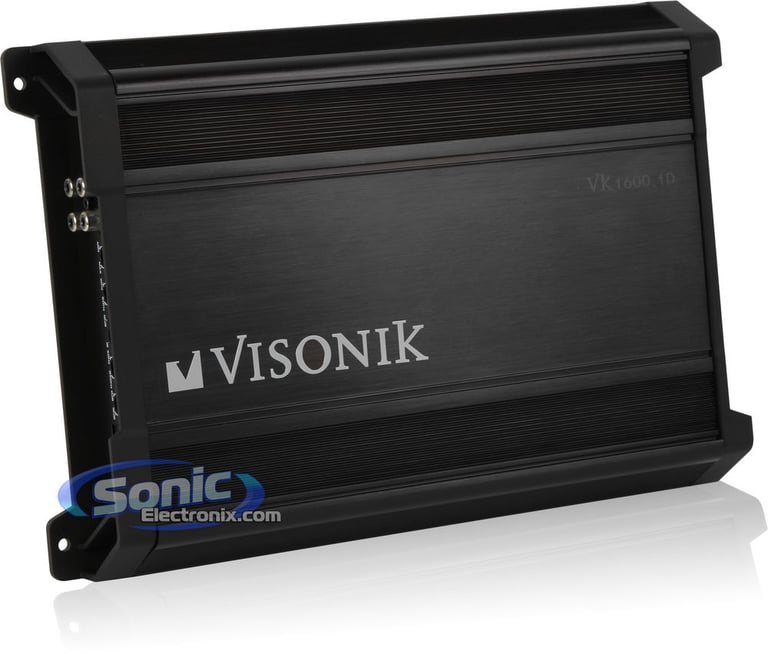

Visonik VK1600.1D

1600W Mono Block Premium Car Audio Collection Amplifier

Visonik
Shop all Visonik
Product videos
highlight-star-icon

Visonik Class D Mono Block Power Amplifier • 1600W RMS • MOSFET P.W.M Power Supply • LED Power and Protect Indicators • Variable Bass Boost • Variable Low-Pass Filter • Subsonic Filter

Learn more about the vk16001d

We apologize

This item has been discontinued


Loading...
99-3045G main

Metra 99-3045G

Single DIN or Double DIN Stereo Dash Kit for select 1994-1997 vehicles from Chevrolet, GMC, Oldsmobile (Gray)

1
-10.72%

$49.99

List price $55.99

NSP46 main

NVX NSP46

300W Peak (100W RMS) 4x6" N-Series 2 Way Coaxial Car Speakers

34
-16.67%

$49.99

List price $59.99

DPX305MBT main

Kenwood DPX305MBT

Double DIN Digital Media Receiver with Bluetooth and Built-in Alexa (SiriusXM Ready)

15
-20.50%

$159.00

List price $200.00

CMR2724 main

Jensen CMR2724

7" Double DIN Touch Screen Digital Multimedia Receiver with Bluetooth

4
43DSC504 main

Kicker DSC50 (43DSC504)

400W Peak (100W RMS) 5.25" DS Series 2-way 4-ohm Coaxial Car Speakers (DSC504)

17
-11.77%

$74.99

List price $84.99

MVH-S720BHS main

Pioneer MVH-S720BHS

Single DIN Digital Media Receiver with Bluetooth, HD Radio and SiriusXM Ready

4
-13.64%

$189.99

List price $220.00

S2-S65 main

Alpine S2-S65

480W Peak (160W RMS) 6.5" S-Series Hi-Res 2-Way Coaxial 4-ohm Car Speakers

5
-16.69%

$149.95

List price $180.00

SXE-1751S main

Alpine SXE-1751S

440W Peak (80W RMS) 6.5" SXE-Series 2-way 4-ohm Component Speakers with Mylar-Titanium Tweeters

4
-16.67%

$64.99

List price $77.99

MPR2121 main

Jensen MPR2121

Single DIN Digital Multimedia Receiver with Bluetooth

2
DMX125BT main

Kenwood DMX125BT

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth

4
-26.30%

$199.00

List price $270.00

Product Highlights


Visonik Class D Mono Block Power Amplifier • 1600W RMS • MOSFET P.W.M Power Supply • LED Power and Protect Indicators • Variable Bass Boost • Variable Low-Pass Filter • Subsonic Filter

Description


Visonik brand icon

Authorized dealer

Product Features
  • Visonik Mono Block Power Amplifier
  • RMS Power Rating:
    • 4 ohm: 800 watts x 1 chan.
    • 2 ohm: 1600 watts x 1 chan.
  • Class D Mono Block amplifier
  • Low noise line level inputs
  • Single frequency adjustable bass boots EQ
  • Low-pass butterworth crossover designs
  • Internal differential drive Preamp inputs
  • Low noise, low distortion full signal path circuit topology
  • Complete differential feedback ground loop control
  • MOSFET P.W.M power supply
  • LED power and protect indicators
  • Fully regulated Preamp power supply
  • Four-way amplifier protection (thermal, short circuit, overload, and DC offset)
  • Delayed turn on / turn off circuitry
  • Isolated signal and power grounds
  • Fast acting power supply capacitor banks

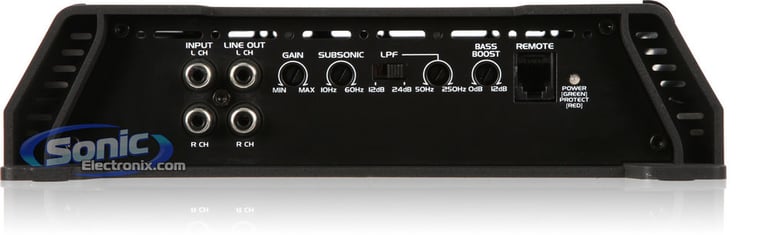

  • Variable Bass Boost (0-12 dB)
  • Adjustable sensitivity range: 0.2-6v
  • Single channel operation
  • Variable Low-Pass Filter (50-250 Hz), (12dB, 24dB)
  • Subsonic Filter: 10Hz-60Hz
  • Frequency Response: 250,000 Hz
  • THD (Total Harmonic Distortion): 0.01%

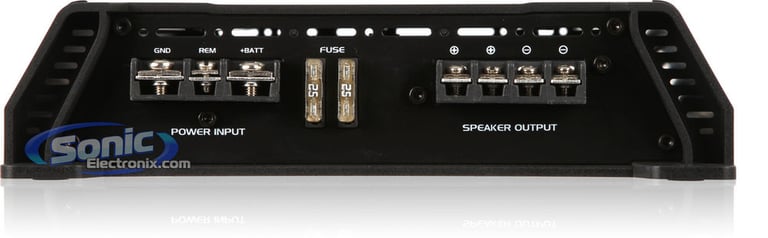

  • Fuse: 25A x 2
  • Dimensions: 13"D x 8-13/16"W x 2-1/4"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Note: The power ratings listed here are exactly what the manufacturer lists for the amplifier. However, please be aware that Sonic recommends using the RMS values above as a max power handling value.


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
800 watts x 1 channel
RMS Power @ 2 ohms
1600 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
.01%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass Crossover Frequency
Not Specified
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
10 - 60 Hz
Signal-to-Noise Ratio
Not Specified
Channel Separation
Not Specified
Bass Boost
0 - 12 dB

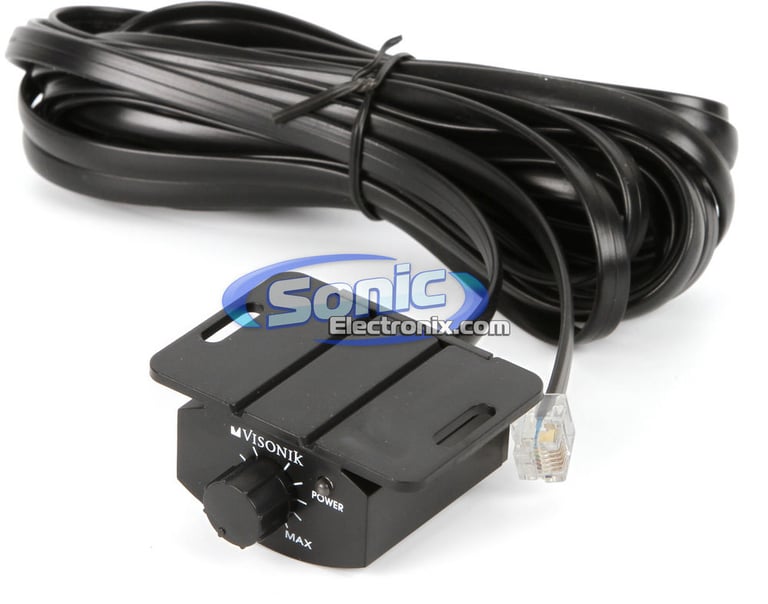

Remote bass/level controller
Yes
Fuse Rating
25A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

VK1600.1D

Weight:

6.00lbs

Internal SKU:

vk16001d

Internal Product ID:

35667
