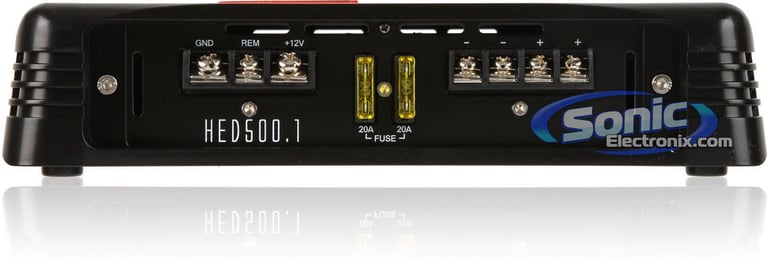

Cerwin-Vega HED500.1 Open Box Image 15 — Cerwin-Vega HED500.1 Open Box

Cerwin-Vega HED500.1 Open Box Image 16 — Cerwin-Vega HED500.1 Open Box

Cerwin-Vega HED500.1 Open Box Image 17 — Cerwin-Vega HED500.1 Open Box

Cerwin-Vega HED500.1 Open Box Image 18 — Cerwin-Vega HED500.1 Open Box

Cerwin-Vega HED500.1 Open Box Image 19 — Cerwin-Vega HED500.1 Open Box

Product videos

Product highlights

HED Series Monoblock Class AB Car Amplifier • 150W RMS x 1-Chan. @ 4 ohm • 250W RMS x 1-Chan. @ 2 ohm • PWM MOSFET Power Supply • 12dB Vega Bass Boost • Low/High Level Inputs • Variable High Pass Filter • Remote Bass Level Control Included

Learn more about the LS-hed5001-OB

Product Highlights

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Affordable Power with Cerwin-Vega HED Amplifiers

The HED500.1 has a RMS power rating of 150 watts @ 4 ohms, and 250 watts @ 2 ohms. Making it the perfect amplifier when looking to power up a single VEGA Dual 4 ohm subwoofer or even a single HED single 4 ohm subwoofers. This HED series monoblock amplifier features both low-level RCA inputs and high-level speaker inputs giving it the versatility to be integrated into any vehicle regardless of the car audio system being used. The HED amplifier is equipped with a low-pass filter and subsonic filter to better fine tune lower frequency response. The Vega Boost will add 0-12dB bass boost that can be controlled conveniently from the front of the vehicle with the included remote bass level control. With a high density alloy heatsink for heat dissipation and 3-Way System Protection circuitry, this HED amplifier will continue to play safely for long periods of time without causing damage to any device or even to its self. So if you want power and efficiency at an affordable price then look no further than the HED500.1 Cerwin-Vega car amplifier.

HED Series Monoblock Class AB Car Amplifier
RMS Power Rating:
- 4 ohm: 150 watts x 1 chan.
- 2 ohm: 250 watts x 1 chan.
Max power output: 500 watts x 1 chan.
PWM MOSFET power supply

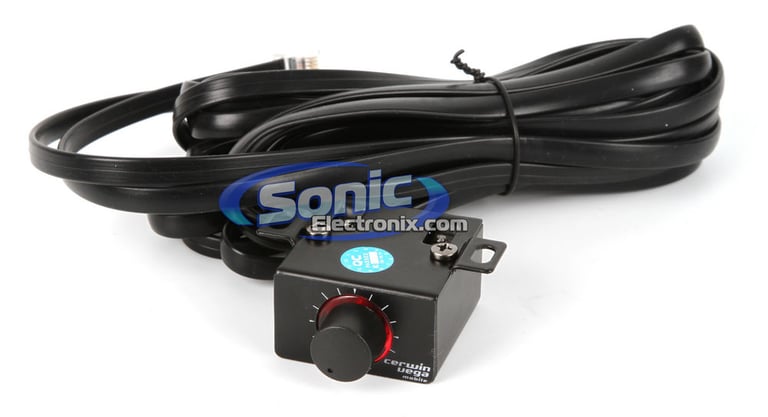

Remote bass level control included

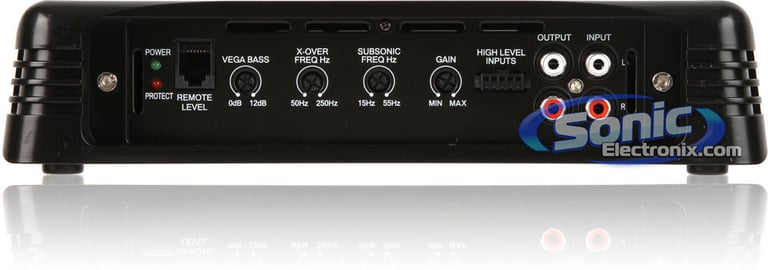

LED power (green) and protect (red) indicators
Vega Bass Boost (0 to +12 dB bass boost at 45 Hz)
Soft Start Turn-on
Mono channel operation
Speaker-level (high-level) inputs with signal sensing for automatic turn-on
Preamp RCA outputs to daisy chain multiple amps
3-Way System Protection circuitry
High-density aluminum alloy heatsink for extreme heat dissipation
Nickel-plated RCA level inputs
Nickel-plated screw terminals
Input sensitivity:
- Low level: 112mV-5.4V
- High level: 3.55V-20V
Variable low-pass filter (50-250 Hz, 12 dB/octave)
Variable sub-sonic filter (15-55 Hz, 12 dB/octave)
Damping factor: >222 at 50 Hz
Frequency response: 17-255 Hz
Dimensions: 11-5/8"L x 9-7/16"W x 2-1/8"H
8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website (SonicElectronix.com) when purchased together with this amplifier.
Authorized Internet Dealer
90-Day Manufacturer's warranty

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

150 watts x 1 channel

RMS Power @ 2 ohms

250 watts x 1 channel

RMS Power @ 1 ohm

Not Stable

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

1 - Mono

Total Peak Power Output

500 watts

Total RMS Power Output

250 watts

Maximum Input Gauge Size

8 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

0.04%

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

50 - 250 Hz

Subsonic Filter

15 - 55 Hz

Signal-to-Noise Ratio

101 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Yes

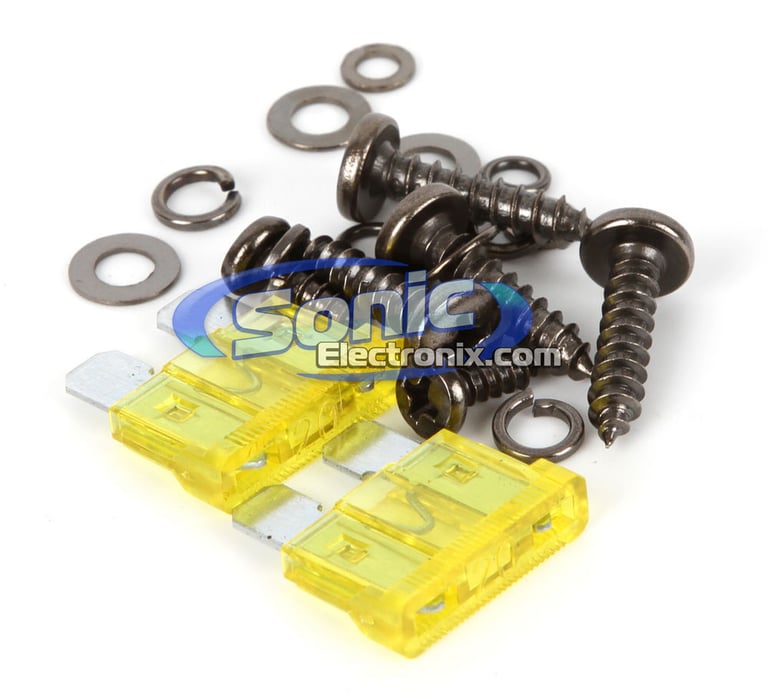

Fuse Rating

20A x 2

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer
