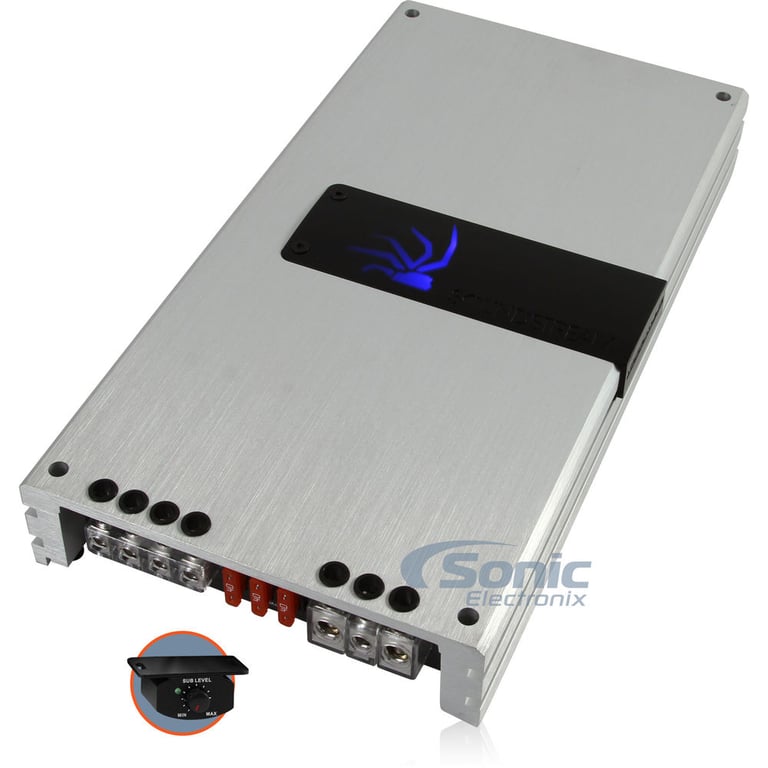

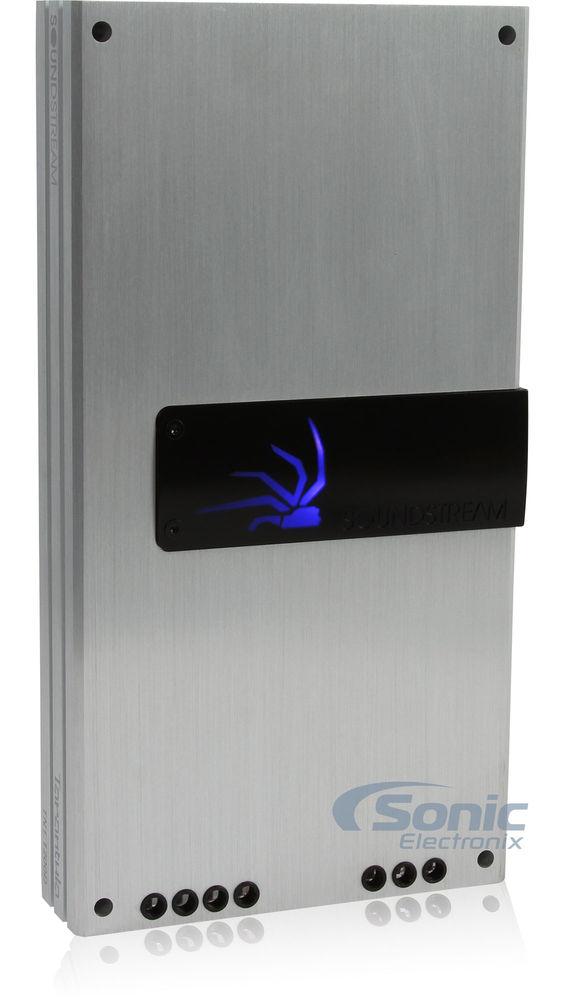

Soundstream TN1.1200D

1200W Monoblock Tarantula NANO Series Class-D Amplifier

Product videos
highlight-star-icon

• RMS Power: 660W x 1 @ 4 ohm, 1050W x 1 @ 2 ohm, 1200W x 1 @ 1 ohm
• Three-Way Protection Circuitry
• Low Pass Filter
• Dimensions: 6.75" W x 12.75" L x 1.75" H

Learn more about the tn11200d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-5600 main

Metra 72-5600

Install New Speakers in select 1993-2017 vehicles from Ford, Mazda, Mercury

109
-33.36%

$9.99

List price $14.99

40-VW10 main

Metra 40-VW10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1973-2025 vehicles from Audi, Mercedes-Benz, Volkswagen

22
-33.36%

$7.99

List price $11.99

40-VW53 main

Metra 40-VW53 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1973-2025 vehicles from Audi, Mercedes-Benz, Volkswagen

3
-27.79%

$12.99

List price $17.99

70-1770 main

Metra 70-1770 Wiring Harness

Install a new car stereo in select 1986-2004 vehicles from Ford, Mercury, Mazda

22
-14.31%

$5.99

List price $6.99

95-5806 main

Metra 95-5806 Dash Kit

Install a new Double-DIN car stereo in select 1999-2004 Focus and Cougar

13
-11.54%

$22.99

List price $25.99

99-5806 main

Metra 99-5806 Dash Kit

Install a new Single-DIN car stereo in select 1999-2004 Focus and Cougar

3
-10.00%

$26.99

List price $29.99

FMK566 main

American International FMK566

Double DIN Stereo Dash Kit for select 1999-2004 vehicles from Ford, Mercury

-70.87%

$6.99

List price $24.00

SA68 main

Scosche SA68

Add 5-1/4" or 6-1/2" Speakers to Factory 6" x 8" Mounting Locations for select 1950-2025 vehicles from Ford, Mercury, Mazda

39
-46.70%

$7.99

List price $14.99

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

Product Highlights


• RMS Power: 660W x 1 @ 4 ohm, 1050W x 1 @ 2 ohm, 1200W x 1 @ 1 ohm
• Three-Way Protection Circuitry
• Low Pass Filter
• Dimensions: 6.75" W x 12.75" L x 1.75" H

Description


Soundstream brand icon

Authorized dealer



Sonic Electronix Power Certified Amplifier

Soundstream's TN1.1200D monoblock amplifier is a Sonic Electronix Certified Amplifier. This amp's power output has been professionally tested with our SMD Amplifier Dyno, bringing you it's true power ratings.

Impedance
Claimed Output
Certified Results
Dynamic Results
4 Ω
660W @ 14.4V
651W @ 14.14V
681W @ 14.14V
2 Ω
1050W @ 14.4V
1004W @ 14.05V
1155W @ 14.05V
1 Ω
1200W @ 14.4V
1280W @ 13.93V
1769W @ 14.12V



General Features:

  • Tarantula NANO Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 660 watts x 1 chan.
    • 2 ohm: 1050 watts x 1 chan.
    • 1 ohm: 1200 watts x 1 chan.
  • Sonic Electronix Certified Power Rating*:
    • 4 ohm: 651 watts x 4 chan.
    • 2 ohm: 1004 watts x 4 chan.
    • 1 ohm: 1280 watts x 1 chan.

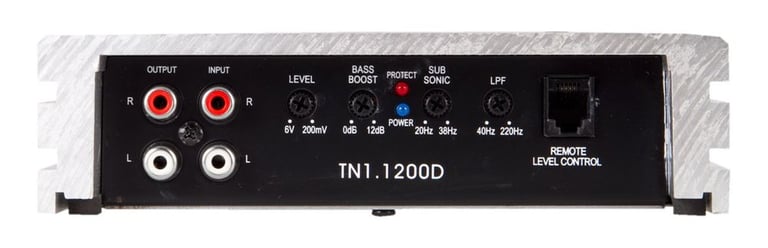

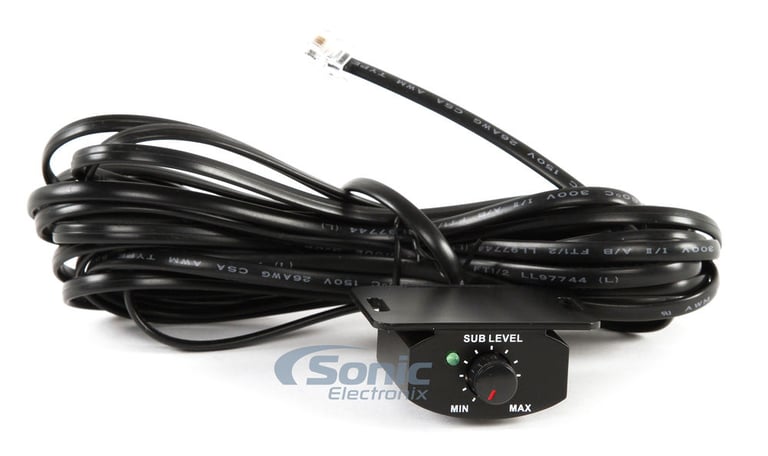

  • Dash mounted remote gain control
  • Double sided composite epoxy PCB
  • Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
  • Mono channel operation
  • Delayed on/off circuit
  • Variable low-pass filter (40-220 Hz, 12dB/octave)
  • Subsonic crossover: 20-38 Hz (12 dB at 15 Hz)
  • Signal to noise ratio: 106dB
  • Three-way protection circuitry
  • 4 gauge power and ground wiring is recommended for installation

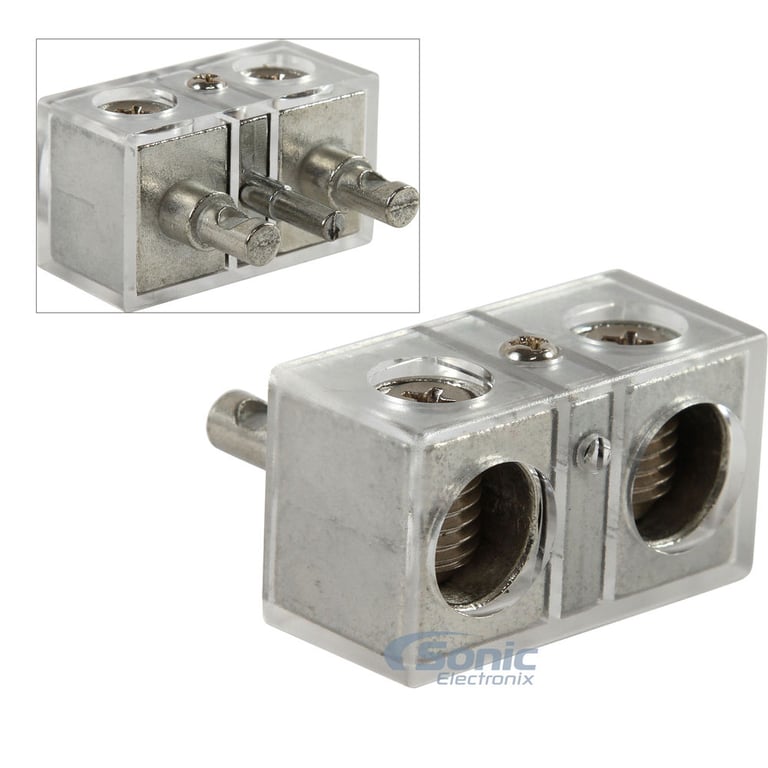

    • Included adapter accepts up to 0 Gauge
    • Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
  • Dimensions: 6.75"W x 12.75"L x 1.75"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
660 watts x 1 channel
RMS Power @ 2 ohms
1050 watts x 1 channel
RMS Power @ 1 ohm
1200 watts x 1 channel
Amplifier Specifications
Series
Tarantula-NANO Series
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1200 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
40 - 220 Hz
Subsonic Filter
20 - 38 Hz
Signal-to-Noise Ratio
106 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes

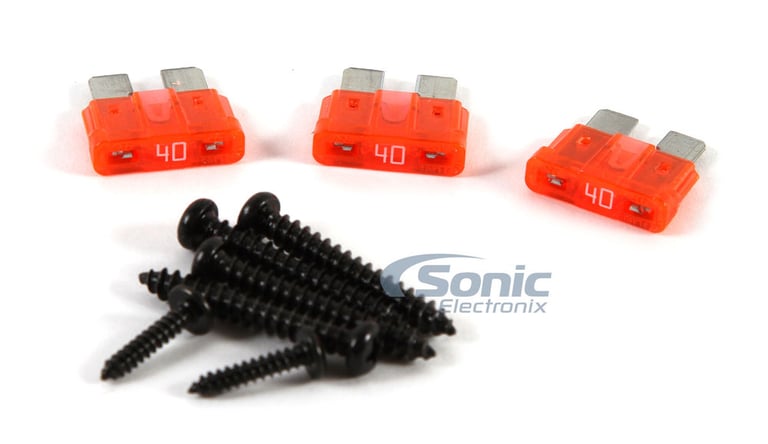

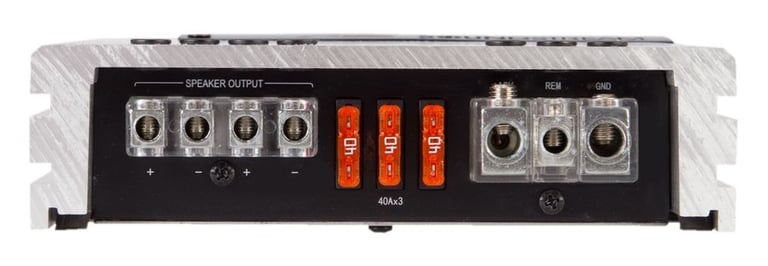

Fuse Rating
40A x 3
Strappable
No
Sonic Certified Amplifier
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TN1.1200D

Weight:

8.00lbs

Internal SKU:

tn11200d

Internal Product ID:

79507

Product and How-to Videos

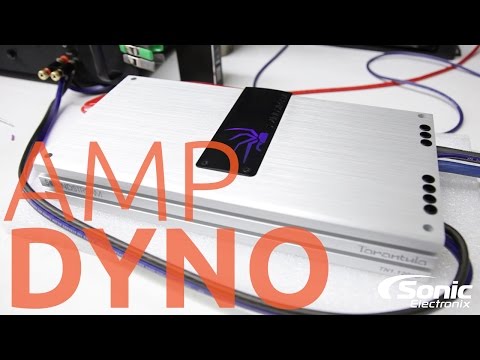

  • Soundstream TN1.1200D Car Amp Dyno & Amplifier Guts!
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


Soundstream TN1.1200D thumbnail image

5 star
71%
4 star
0%
3 star
29%
2 star
0%
1 star
0%



Durability
4.7
Value
5
Features
4.3
Design
4.6
Usability
4.7

Customer Reviews

Sort by:

Loading...

amazing value!

This amp is definitely serving quality clean power to my sub. The sound quality is amazing. Couldn't dream of better sound for the price. Although Idon't believe that the power and ground inputs are a true 4 gauge. They're smaller than the adapters that I bought.

By Justin on May 11, 2014

42 found this helpful


A lot of amp for the money

This is a small amplifier that puts out a lot of clean power. I've had it installed for six months running at 2 ohms without any issues. The only issue with the amp is the remote gain knob. It doesn't do anything until you reach the half way point. From there even the smallest adjustment results in very big difference in sound. So basically you only have about half the range to make all the adjustments. Even with this, I think this amp is a great bargain & I recommend it. I'm actually using an Audicontrol LC2i, & control the sub volume through its controller.

By Juan on June 21, 2015

29 found this helpful


Very clean!!!

Very powerful amp an very underrated so be careful when setting your gain it's far from 1200 at 1ohm had it bench tested it pushes at 1ohm almost 1800 watts so be careful I blew 2 sets of subs that we're rated 1200rms but other then that very good amp buy with caution!!! Oh this definitely false advertising!!

By Chris on July 21, 2016 Checkmark Icon Verified purchase

25 found this helpful


Glad I tried it

I got this amp because of the Sonic Certified review on it, and it's real tested output matched my needs.

So I'm running this amp @ 1ohm to a pair of JL 12W3v3-2 in parallel in a 2.7 cube box ported to 32Hz. Without fine tuning, I just set the gain at 3/4 and the boost at 0, and I hit 122.7db @ 35Hz (scosche handheld)

And while its not a micro amp, it is a bit smaller than the picture makes it look.

By Nate on October 17, 2016 Checkmark Icon Verified purchase

24 found this helpful


Excellent product.

Purchased the amp to replace a Phoenix Gold Octane 8.1
This amp is half the size and has twice the power.
Really does a number on my MTX subs.

By collin on September 15, 2016 Checkmark Icon Verified purchase

22 found this helpful


For the price very good

I purchased this amp. And i am the going to give a solid 6.5 out of 10. The good . it s a footprint amp you can fit it just about anywere you would like to, its also dose putout quite abit more rms power then its rated for. Which confused me why its not cea certified but its sonic certified? Well i think i know why now if this amp is pushed to it full potential u will have cutting out and protect problems this is why i only used mine for a week and sold it. Im not a green horn car audio guy eaither i know what im do trust me ! And if u dont its not expensive try it for yourself but remember i warned you. It will play good at regular use but don't push it and expect it to do what you want.

By kyle on September 4, 2016 Checkmark Icon Verified purchase

21 found this helpful


Great amp

I have this amp powering 2 NVX VCW 122 12" subs and it sounds amazing

Small footprint big power

By Jake on July 15, 2016 Checkmark Icon Verified purchase

21 found this helpful




KD-ADV49 small

JVC Arsenal KD-ADV49

"El Kameleon" In-Dash 3.6" TFT-LCD Monitor with DVD/CD/MP3 Receiver, Remote, USB, Built-in Bluetooth, and Proximity Sensors

(3)

$349.99

List price $579.99

CAD 15 small

DLS CAD 15 Digital

1600W, 1-Channel Class D Classic Series Monoblock Car Amplifier (Performance Classic -- 10-30211)

$799.95

List price $849.95

99-7871 small

Metra 99-7871 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2006-2011 Honda Civic (Gray)

(2)

$49.99

List price $66.00

No picture

Naztech n300 (9752)

3-in-1 Portable Samsung T809 Charger with Blue LED Indicator

$11.99

List price $59.99

99-7522B small

Metra 99-7522B Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2013-2016 CX-5 and 6 (Matte Black)

$17.99

List price $37.99

KD-A625 small

JVC Arsenal KD-A625

In-Dash CD/MP3/WMA Car Stereo with Front Aux, USB/iPod Playback, Remote and Variable Color Display

(1)

$109.99

List price $159.95

HP USB-12 ES small

Monster Cable High Performance USB Cable (HP USB-12 ES)

12 ft (3.65 Meters) of HP USB Cable (English/Spanish) with Heavy-Duty Dual-Layer Shielding

$19.99

List price $24.99

No picture

Naztech N300 (9758)

3-in-1 Portable iPod/ iPhone Charger with Blue LED Indicator

$12.99

List price $39.99

I2300 small

Image Dynamics i2300

250W RMS Bridgeable 2-Channel Class A/B i Series High Fidelity Car Amplifier

$178.99

List price $199.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2002 Ford Focus

2002 Volvo V70

1984 Cadillac DeVille

2010 Audi A5

2010 Mitsubishi Eclipse

2001 Ford Taurus

1973 Buick LeSabre

2005 Lexus IS300

2011 Ford Explorer

1979 MG Midget

Vehicle
Store
Delete

2002 Harley Davidson FXSTD Softail Deuce

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
