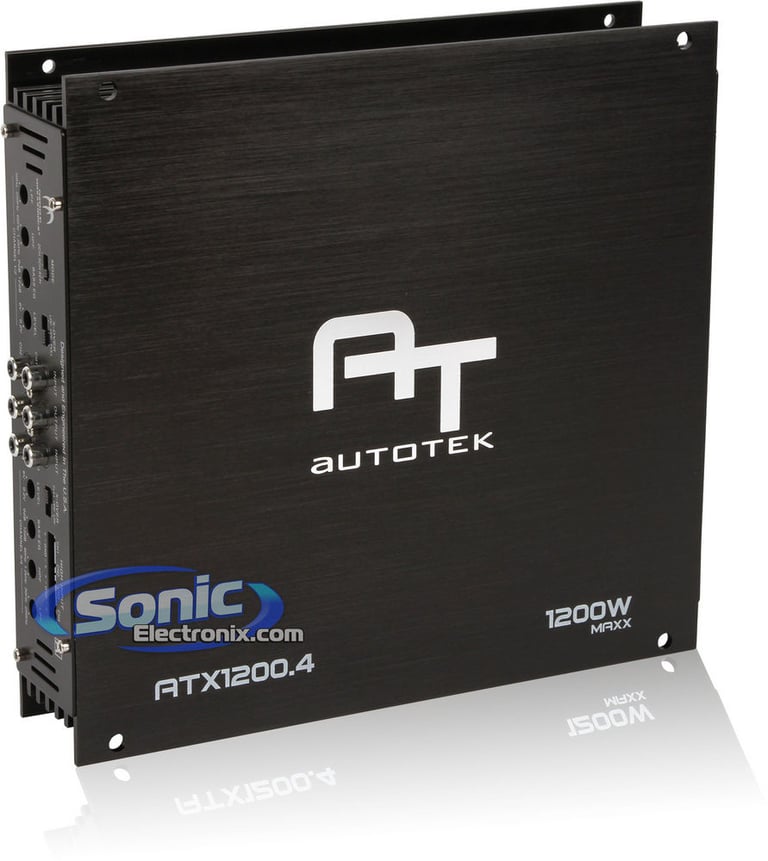

Autotek ATX1200.4

1200W Max 4-Channel Class AB ATX Series Amplifier

Autotek
Shop all Autotek
Product videos
highlight-star-icon

ATX Series 4-Channel Class A/B Car Amplifier • 1200 Watts Max • 300 Watts x 4 Chan @ 2 Ohm • Military Grade PCB Design • 0 to +12 dB Bass Boost • Speaker-Level Inputs • Preamp RCA Outputs

Learn more about the atx12004

We apologize

This item has been discontinued


Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

43
-20.01%

$11.99

List price $14.99

82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

28
-28.13%

$22.99

List price $31.99

D9-MST2015L-64GB main

Dynavin D9-MST2015L-64GB

10.1" Custom-Fit Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto for select 2015-2023 Mustang (SiriusXM Ready)

2
XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154
-12.50%

$69.99

List price $79.99

Limited time!
46CSC354 main

Kicker CSC35 (46CSC354)

180W Peak (60W RMS) 3.5” CS Series 2 Way Coaxial 4-ohm Speakers

16
-30.71%

$51.96

List price $74.99

CF-275mt main

JL Audio CF-275mt

60W RMS 2.75" CF Series Custom-Fit Midrange 4-ohm Tweeters

12
T1650 main

Rockford Fosgate Power T1 T1650

300W Peak (150W RMS) 6.5" Power Series 2 Way Coaxial 4-ohm Speakers

10
K 165 main

Hertz K 165

300W Peak (75W RMS) 6.5" Uno Series 2-way 4-ohm Component Speaker System

4
-33.34%

$99.99

List price $150.00

Product Highlights


ATX Series 4-Channel Class A/B Car Amplifier • 1200 Watts Max • 300 Watts x 4 Chan @ 2 Ohm • Military Grade PCB Design • 0 to +12 dB Bass Boost • Speaker-Level Inputs • Preamp RCA Outputs

Description


Autotek brand icon

Authorized dealer

  • ATX Series 4-Channel Class A/B Car Amplifier
  • MAXX Power Rating:
    • 4 ohm: 150 watts x 4 chan.
    • 2 ohm: 300 watts x 4 chan.
    • Bridged, 4 ohm: 600 watts x 2 chan.
  • Max power output: 1200 watts
  • Pulse Width Modulated MOSFET power supply
  • Military grade PCB design

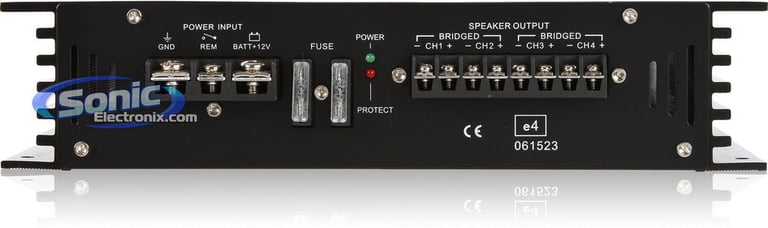

  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • Soft Start Turn-on
  • 4/3/2 channel operation
  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity:
    • Low level: 200mV-5V

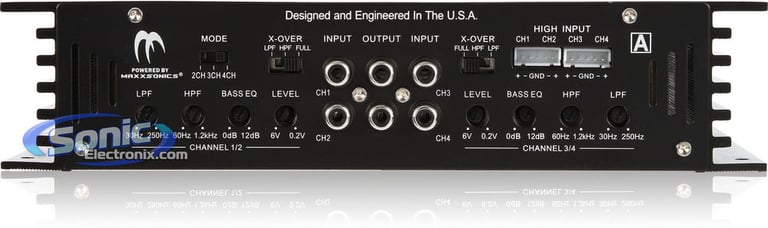

  • Variable high-pass filter (60-1,200 Hz, 12 dB/octave)
  • Variable low-pass filter (30-250 Hz, 12 dB/octave)
  • Frequency response: 30-45,000 Hz
  • Dimensions: 10-1/4"L x 9-3/4"W x 2-3/16"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
SB-F-MUSCPE/12TW3 main

JL Audio Stealthbox® SB-F-MUSCPE/12TW3

Custom fit subwoofer enclosure for select 2015-2025 Mustang and Mustang GTD

$1,349.99

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

KTA-450 small

Alpine KTA-450 Power Pack

• 50 watts x 4 channel @ 4 ohm
• 45 watts x 4 channel @ 2 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(20)

$299.95

List price $360.00

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 4 channel
RMS Power @ 2 ohms
150 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
300 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1200 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<0.05%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
60 - 1200 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
>95 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
25A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ATX1200.4

Weight:

7.00lbs

Internal SKU:

atx12004

Internal Product ID:

33187

Product and How-to Videos


Customer Ratings & Reviews


Autotek ATX1200.4 thumbnail image

5 star
50%
4 star
25%
3 star
0%
2 star
25%
1 star
0%



Durability
4
Value
4
Features
4
Design
4
Usability
4

Customer Reviews

Sort by:

Loading...

best 4ch

I bought this amp and for a 4ch amp it rocks. Am using one Pioneer dvc 10" and two mid bass on my doors and two at the back dash and this little amp rocks my whole system. The bass is deep and the mids are clean and loud. My friends can`t believed it's one amp doing all that damage. I will say go with this if you have a low budget.

By bcbtrini on March 5, 2012

17 found this helpful


ok

I bought this amp with a grain of salt after reading reviews of Autotek, only to find out that Maxxsonic now owns them.
This amp is cheap so dont expect much when running 4 channel. (even at 2.6 ohm per) Its not much past deck power to 4)- 6.5" Kappas with 12 ga wire. Nowhere near the maxxsonics "MAXX" power, Im thinking around 40 watts rms, much higher then that and its distorting. 4v going into the rcas but the output rca is 2v.

For giggles i Bridged to my 2 12" subs and they barely hit compared to the RE amp that is rated at 1/3 the 4ohm x2 load. My guess is around 80-90 watts per channel nothing near the claimed "Bridged, 4 ohms: 600 watts x 2 chan".

This amp looks very similer to US/RE amps but acts nothing like them and I should have spent $30 more and got the US/RE 4 channel. The terminals are small so expect to hunt for connectors to fit the small screw terminals or solder wire ends.

By Joe on February 28, 2012

18 found this helpful


Well worth the Price

I have this amp in my S10 on two 4x6s, two 6.5s, and two Autotek 6x9s! The little amp is playing at 2ohms on two channels 4ohms on the other two. The amp has never gone into protection. Never overheated, even though it is not in the most vented area. It is soo much louder than factory and plays very clean! The install was easy and it has a lot of nice features. I highly recommend it to someone looking for an amp in this price range! I'm thinking its about 45wrms per channel at 4ohms! Great Buy!!!

By Alvin on August 4, 2012

12 found this helpful


awesome

Very good amp. I have it running 2 12's. Superb bass. Very deep.

By patrick on February 20, 2012

11 found this helpful




HCP 4D small

Hertz HCP 4D

1160W Peak (520W RMS) Class D Hertz Compact Power (HCP) Series 4-Channel Full Range Compact Car Amplifier

$399.99

List price $435.00

VA4-2200D small

Power Acoustik VA4‐2200D

2200W Peak (800W RMS) Class D Vertigo Series 4-Channel Car Amplifier

$83.99

List price $85.99

GT5-A604 small

JBL GT5-A604

640W Max, 4-Channel GT Series Class AB Amplifier

(13)

$129.95

List price $179.95

GTO504 small

JBL GTO504

560W Max, 4-Channel Grand Touring Series Class AB Amplifier

(8)

$159.95

List price $279.95

ZRX1016.4 small

Hifonics Zeus ZRX1016.4

1000 Watt 4 Channel Zeus Series Class AB Amplifier

(8)

$119.99

List price $279.99

TTDDC07FB10A-FPR small

MTX Audio ThunderForm TTDDC07FB10A-FPR

400W Peak (200W RMS) Loaded Single 10" Sealed Amplified Truck Enclosure

$649.95

List price $749.95

DSC-480 small

MB Quart DSC 480

640W RMS, Class A/B 4-Channel Discus Series Amplifier (DSC480)

(17)

$119.99

List price $449.99

No picture

Wet Sounds MC-MD 2 (Like New (Open Box))

2.7" Square Gauge Mount Style Add-on Screen for WS-MC-1

$305.99

List price $359.99

NE101S_RM110D2B small

NVX NE101S w/ Rockford Fosgate Prime R1 RM110D2B

Single 10" Sealed 3/4" MDF Black Carpeted Subwoofer Enclosure – 0.65 Cu. Ft. with Polyfil and NVX Logo w/ 10" Prime Series Dual 2-ohm Marine Subwoofer in Black

(2)

$245.98

List price $273.98

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1982 Audi 5000

2022 Ford Mustang

2019 Jeep Compass

2003 Hummer H2

1990 Audi 80

2006 Ford Freestyle

2011 Ford Mustang

2007 Mazda RX-8

2005 Buick Rainier

2017 Subaru Impreza

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
