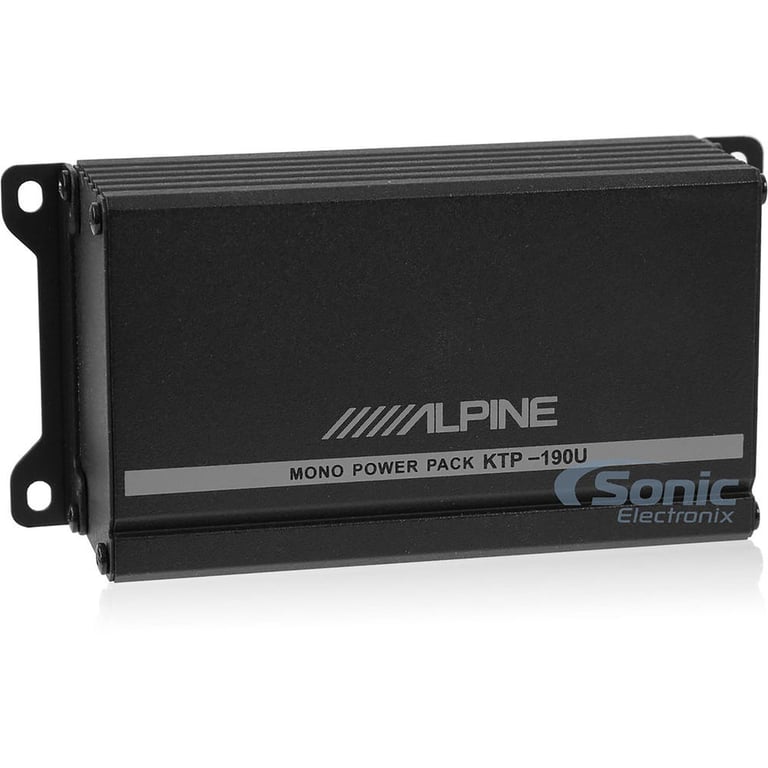

Alpine KTP-190U

90W RMS Monoblock KTP Series Class D Amplifier

Alpine
Shop all Alpine
highlight-star-icon

• RMS Power: 30W x 1 @ 4 ohm, 60W x 1 @ 2 ohm, 90W x 1 @ 1 ohm
• Total Peak Power: 190W
• Selectable Low Pass Filter
• Dimensions: 5-3/8" W x 2-5/8" D x 1-9/16" H

Learn more about the ktp190u

We apologize

This item has been discontinued


Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Description


Alpine brand icon

Authorized dealer

General Features:

  • KTP Series Monoblock Class D Car Amplifier
  • Great for replacing factory amplifiers
  • Compact size makes it easy to tuck away
  • RMS Power Rating:
    • 4 ohm: 30 watts x 1 chan.
    • 2 ohm: 60 watts x 1 chan.
    • 1 ohm: 90 watts x 1 chan.
  • Max power output: 190 watts
  • CEA-2006 compliant amplifier
  • Runs off same power circuit as the receiver
    • Must be 15 amps or more
  • Mono channel operation

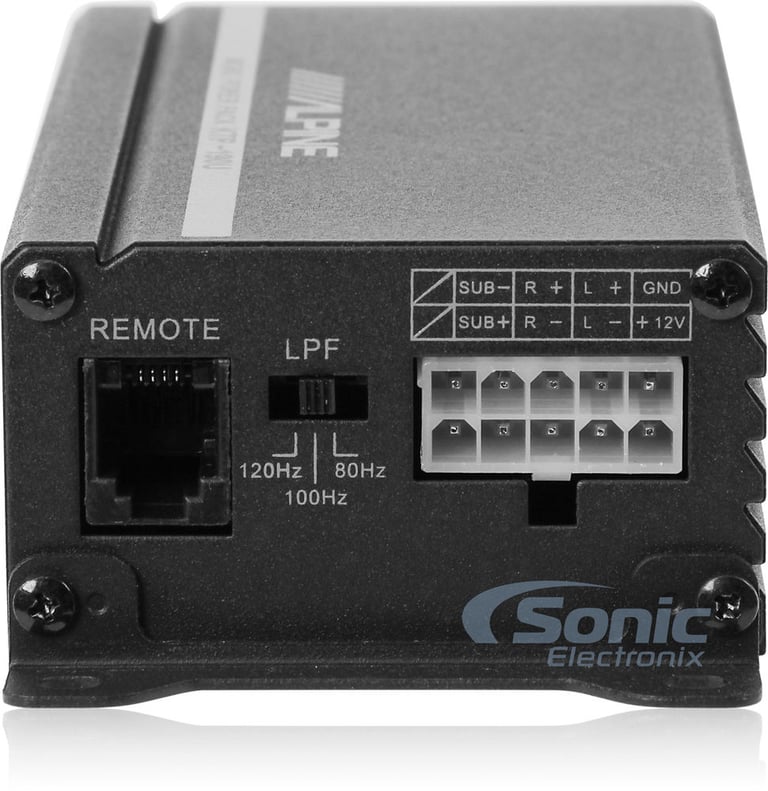

  • Selectable low-pass filter (80, 100 and 120 Hz, 12 dB/octave)
  • Frequency Response: 10-120 Hz
  • Total Harmonic Distortion: <0.6%
  • Signal-to-noise ratio: > 98 dB

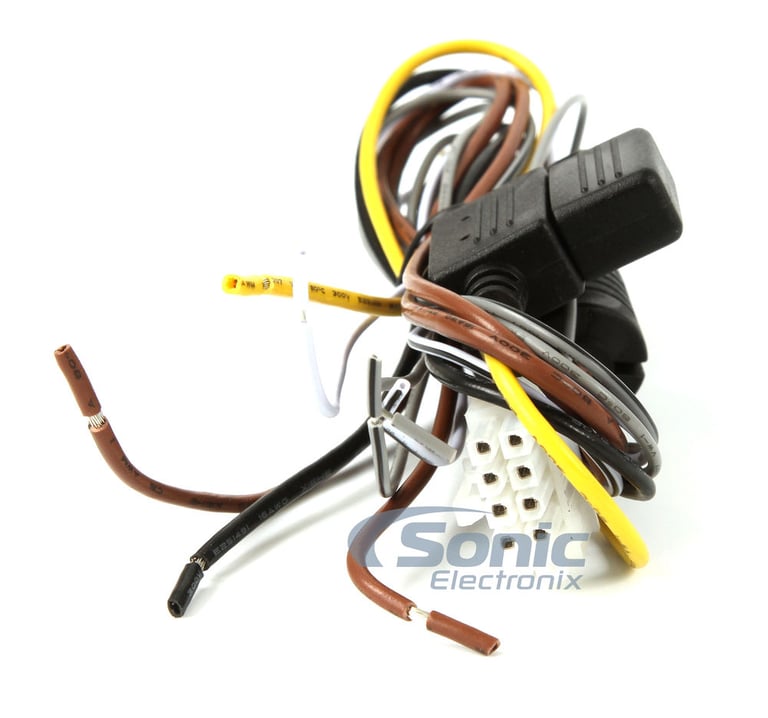

  • 12 gauge power and ground wiring is required for installation
    • Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier

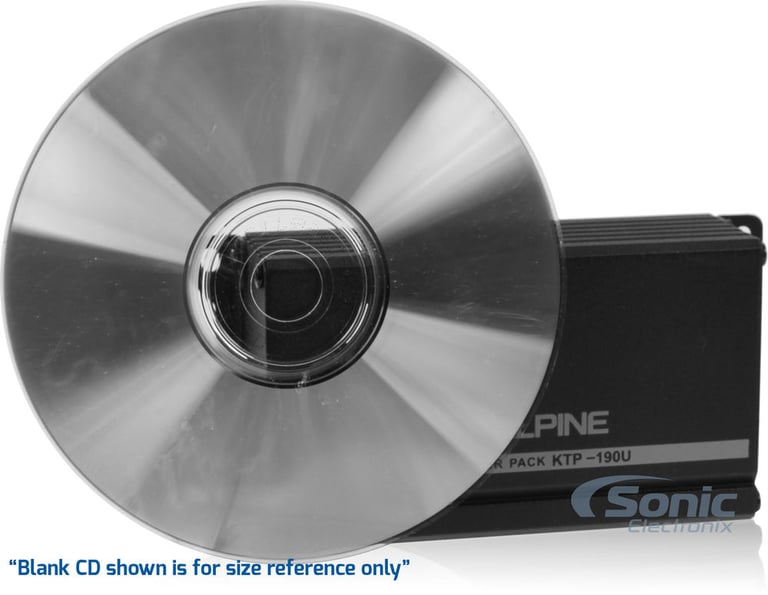

  • Dimensions: 5-3/8"W x 2-5/8"D x 1-9/16"H
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA11005 small

NVX NDA11005

• 100 watts x 4 channel + 315 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(9)

$259.99

List price $323.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

NDA15001 small

NVX NDA15001

• 670 watts x 1 channel @ 4 ohm
• 1100 watts x 1 channel @ 2 ohm
• 1500 watts x 1 channel @ 1 ohm
• Total RMS Power: 1500 watts
• Class D 1 ohm Stable Monoblock Amplifier

(14)

$199.99

List price $287.99

KTA-450 small

Alpine KTA-450 Power Pack

• 50 watts x 4 channel @ 4 ohm
• 45 watts x 4 channel @ 2 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(20)

$299.95

List price $360.00

T1000-1bdCP small

Rockford Fosgate Power T1000-1bdCP

• 700 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class BD 1 ohm Stable Monoblock Amplifier

(50)

$659.99

List price $659.99

PBR300X2 small

Rockford Fosgate Punch PBR300X2

• 100 watts x 2 channel @ 4 ohm
• 150 watts x 2 channel @ 2 ohm
• Bridged: 300 watts x 1 channel @ 4 ohm
• Total RMS Power: 300 watts
• Class BR 2 ohm Stable 2-Channel Amplifier

(22)

$249.99

List price $279.99

VADM2 small

NVX VADM2 v2 (VADM2v2)

• 200 watts x 2 channel @ 4 ohm
• 300 watts x 2 channel @ 2 ohm
• Bridged: 600 watts x 1 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 2-Channel Amplifier

(17)

$199.99

List price $239.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
30 watts x 1 channel
RMS Power @ 2 ohms
60 watts x 1 channel
RMS Power @ 1 ohm
90 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
90 watts
Maximum Input Gauge Size
12 AWG
Minimum Impedance Unbridged
1 ohm
THD at Rated RMS Power
1%
Built-in Crossover
Low-Pass (LP)
Signal-to-Noise Ratio
80 dB
Fuse Rating
10A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

KTP-190U

Weight:

3.10lbs

Internal SKU:

ktp190u

Internal Product ID:

77819

Customer Ratings & Reviews


Alpine KTP-190U thumbnail image

5 star
67%
4 star
33%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
4
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Alpine, you did well!

Great amp if you need extra power to power an aftermarket sub especially wired down to 1 ohm. Replaced my factory sub with a Kicker dual 2 ohm free air subwoofer and used the Alpine to feed it power. 90w was sufficient enough to feed the sub with the low level signal coming from the factory bose amplifier. Didn't need the rux nob because I can control the bass & subwoofer level output off the factory headunit. Very compact, very efficient, very easy to install....4 wires and you're done. I only wish alpine had a more powerful model maybe 150/200w rms but I'm very content with it. Installed this in my 2006 Acura RL with no subwoofer burbs, and no active noise cancellation or phase distortion.

By Ro on April 15, 2017

3 found this helpful


Works good

The amp works good, the only con is that I didn't notice it only has high level inputs, no rca input, but I made it work. I used it to power my factory Bose subwoofer in the console of a 2004 suburban which is a 2 ohm dvc, so the amp is running a 1 ohm load and it works fine.

By William on January 29, 2016 Checkmark Icon Verified purchase

1 found this helpful


Alpine, you did well 2.0!

Great amp if you need extra power to power an aftermarket sub especially wired down to 1 ohm. Replaced my factory sub with a Kicker dual 2 ohm free air subwoofer and used the Alpine to feed it power. 90w was sufficient enough to feed the sub with the HIGH level signal coming from the factory bose amplifier. Didn't need the rux nob because I can control the bass & subwoofer level output off the factory headunit. Very compact, very efficient, very easy to install....4 wires and you're done. I only wish alpine had a more powerful model maybe 150/200w rms but I'm very content with it. Installed this in my 2006 Acura RL with no subwoofer burbs, and no active noise cancellation or phase distortion.

By Ro on April 15, 2017
